16. Mains Supply Location
Mains cable fed from control tray right-
hand exit through ducting dependent
upon position of supply socket
DESN 517784
DESN 517783

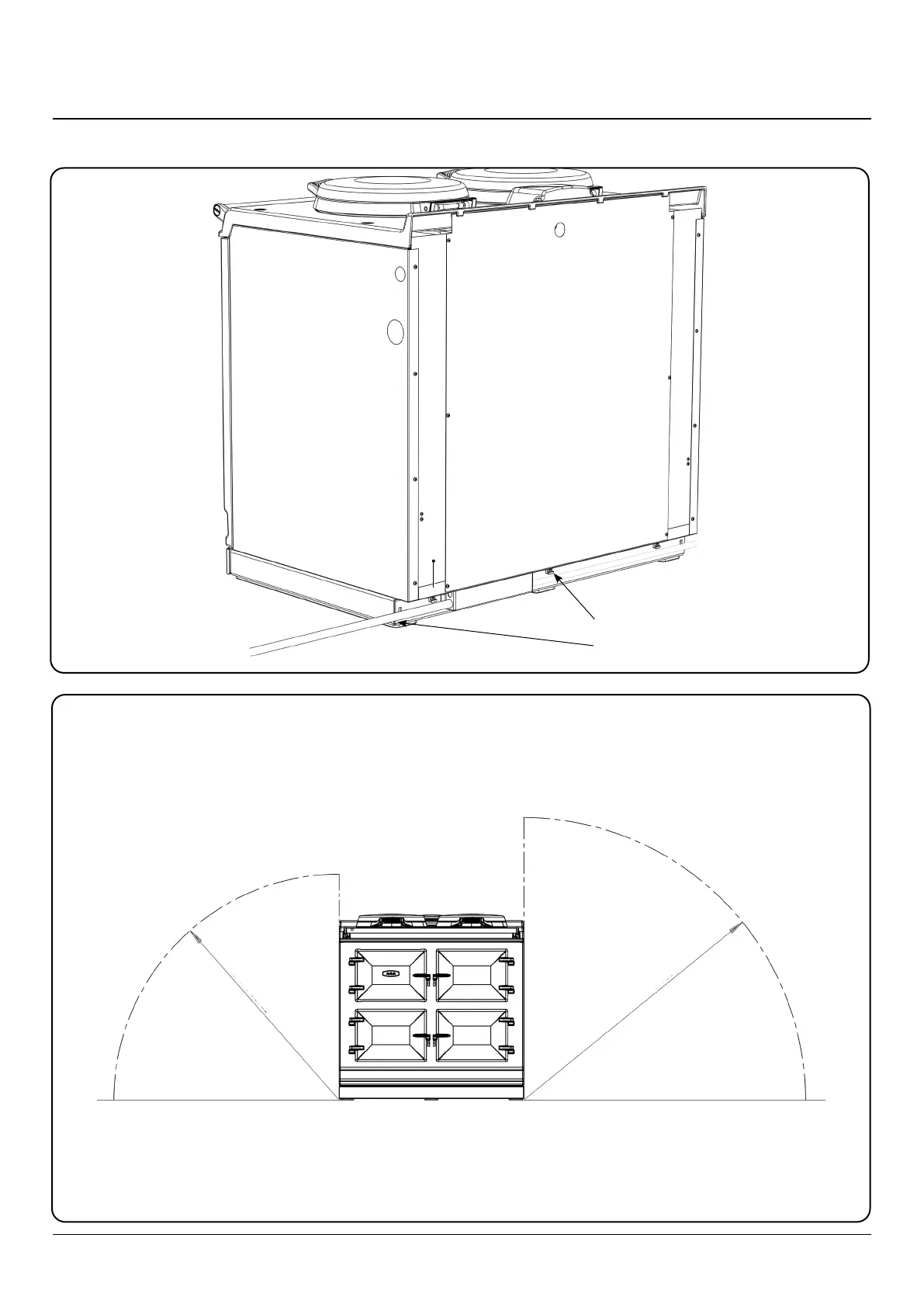

Fig. 16.1
Fig. 16.2
Mains cable routing
THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN
3ft 11” radius
4ft 11” radius
