Charging the DR detector in the DR detector cradle
A DR detector can be charged in either of both slots of the DR detector cradle,
or two detectors can be charged simultaneously.
1. Hold the DR detector with the tube side facing right.
2. Insert the DR detector in an empty slot of the DR detector cradle.

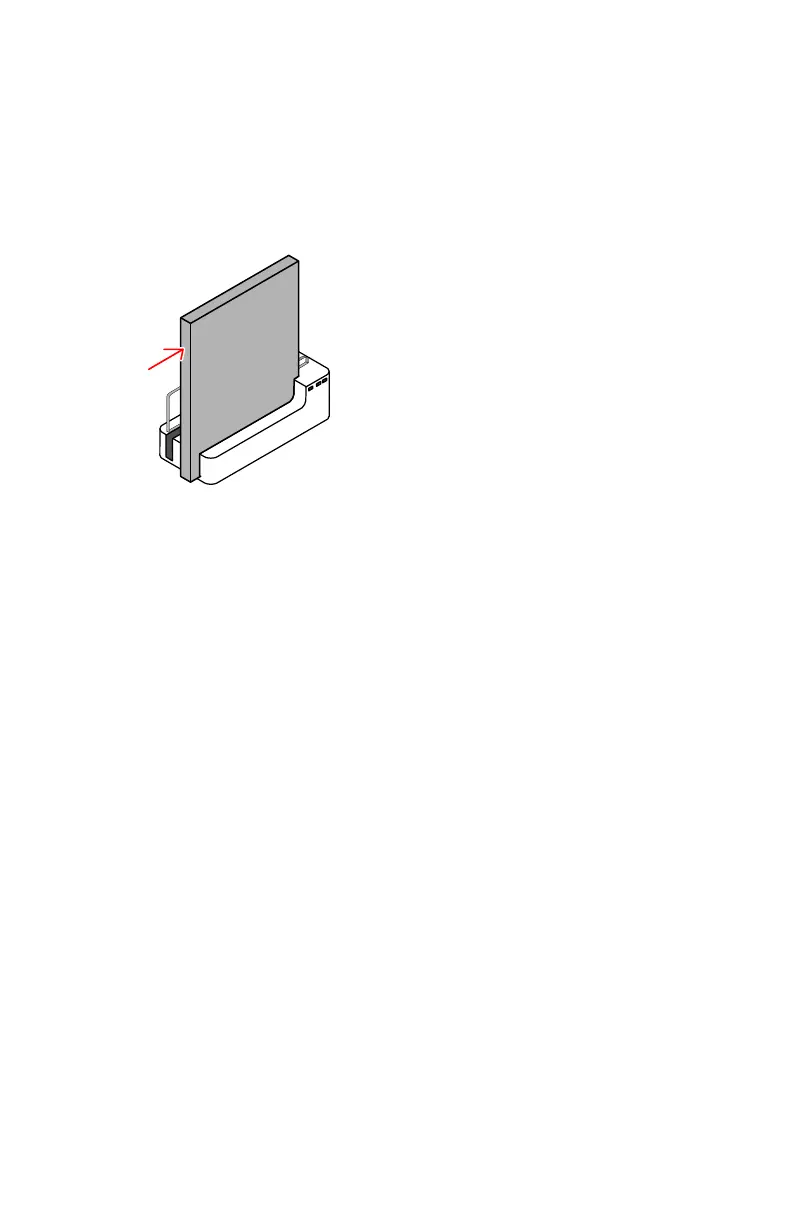

Figure 21: Inserting the DR detector in the DR detector cradle
The corresponding status indicator lights up orange to indicate that the
battery is charging.
When the battery is fully charged, the status indicator light turns green.
Related Links
DR detector cradle on page 21
XD 17, XD⁺17 | Advanced Operating | 101
0434A EN 20210426 1355
