AGFA XD 17 - Configuration

Configuration
The DR detector is a component that can be integrated in an X-ray system and
that communicates to a workstation. Multiple DR detectors can communicate
to a single MUSICA Acquisition Workstation. A DR detector can be used on
more than one MUSICA Acquisition Workstation.
1 2
8
3
6
7
5
9
4
1.
Client mode: the detector connects to the workstation via the built-in
access point of the System Control Unit (SCU).
2.
Client mode: the detector connects to the workstation via a wireless
access point.
3.
Access point mode: the workstation connects to the detector, which is
acting as an access point.
4.
Wired mode: the detector communicates to the workstation via the DR
detector cable.
5.
DR detector
6.
System Control Unit (including a wireless access point)
7.
Workstation
8.
Wireless access point
9.
DR detector cable

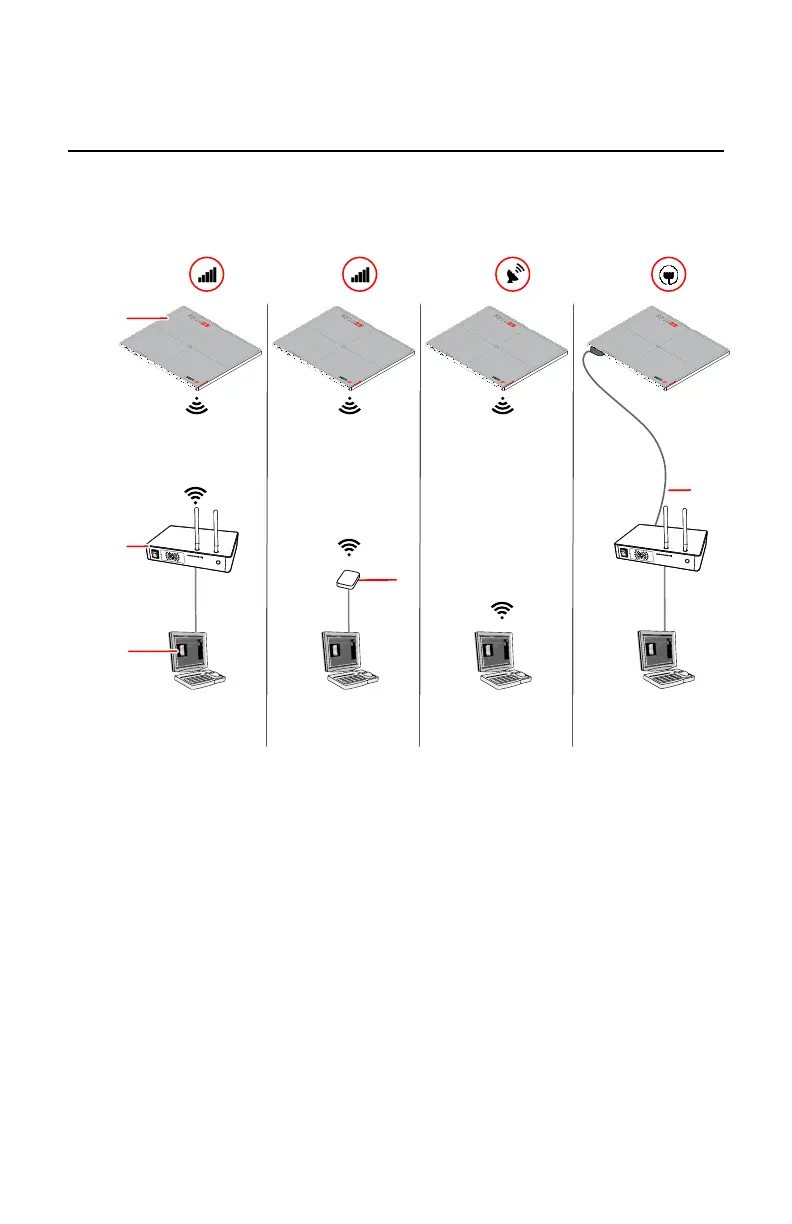

Figure 1: Configurations
A DR detector is during installation configured either in client mode or in
access point mode.
14
| XD 17, XD⁺17 | Introduction to the DR Detector
0434A EN 20210426 1355
