Pump Head Maintenance (Tool Free)
Replace the Heat Exchanger

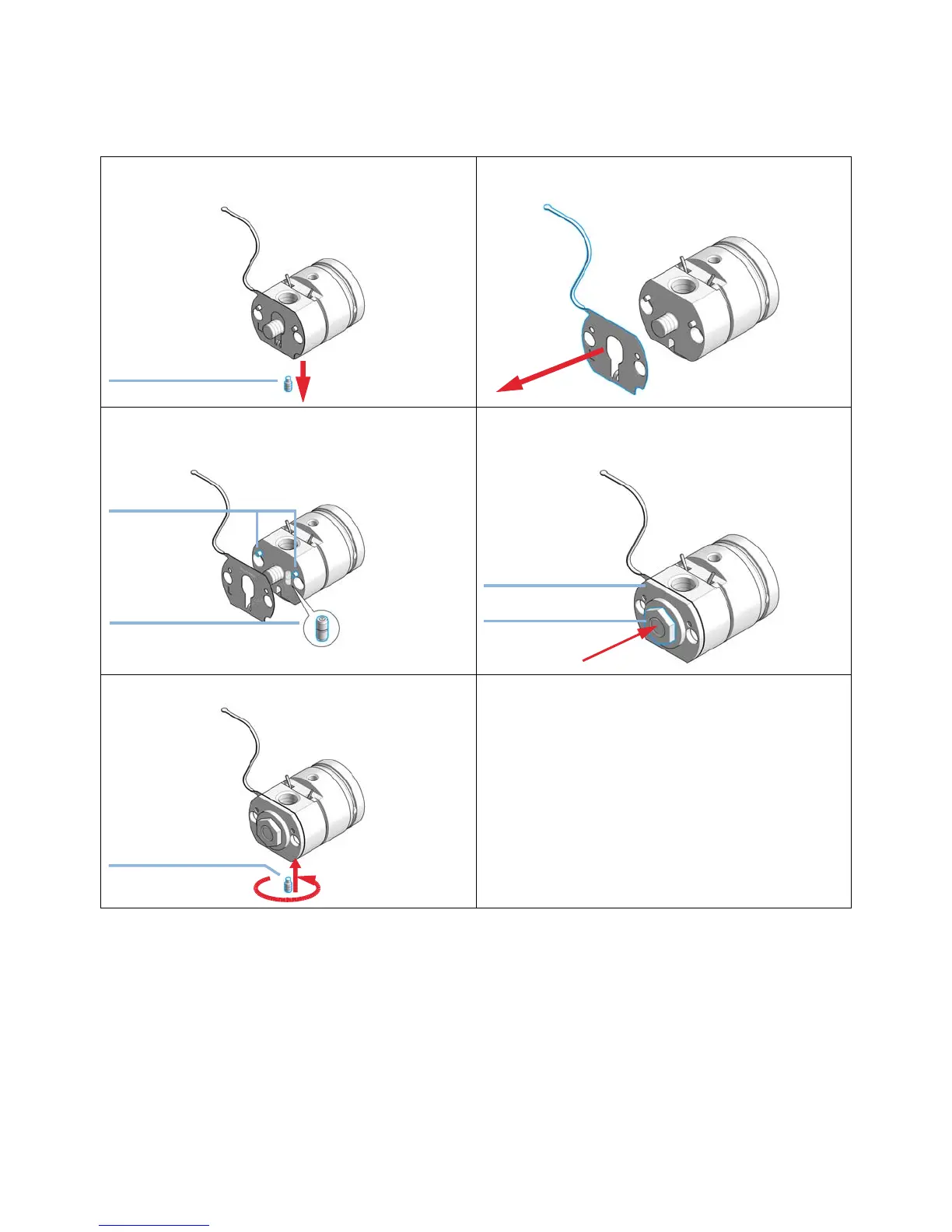

3 Remove the screw at the bottom of the pump head. Do not
drop the golden spacer fitting.
4 Lift out the heat exchanger.
5 If removed, first insert the spacer fitting. Then insert the new
heat exchanger to the opening in the pump head and lift it over
the pins.
6 Use the 19 mm screw for fixing the front plate.
7 Insert and fix the screw.
6FUHZ
6SDFHUILWWLQJ
3LQV
)URQWSODWH
6FUHZ
Screw
3 Nm
approx.
