Agilent Technologies 1290 Infinity II - Seal Wash Upgrade Kit (G4204 A)

39
Seal Wash Upgrade Kit (G4204A)
Secondary Pump Head Parts
Seal Wash Upgrade Kit (G4204A)

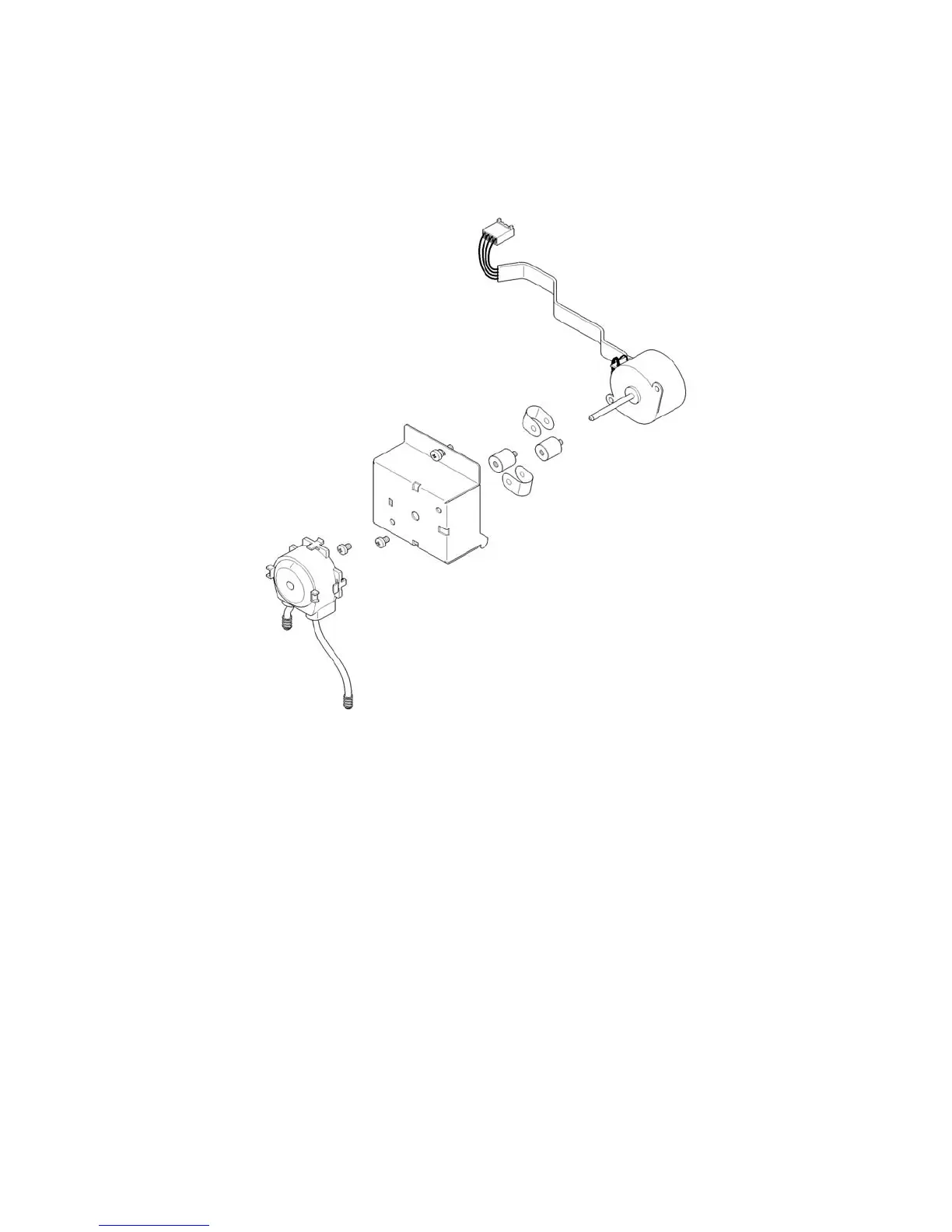

Figure 3 Seal Wash Pump Assembly
Seal Wash Upgrade Kit for 1290 Quaternary Pump (G4204-68712) contains all items
listed below.
Item # p/n Description
1 1 5065-4445 Peristaltic pump with Pharmed tubing
2 2 0515-1508 Screws for Seal Wash Pump Motor
3 1 5003-1252 Housing Seal Wash Pump
4 2 1520-0260 Shock mount
5 2 G3010-01203 Grounding strip
6 1 5067-4645 Seal Wash Pump Motor
1 5065-9978 Tubing, 1 mm i.d., 3 mm o.d., silicone, 5 m
1 5042-6422 Tubing c onnecto r, 1 mm o.d.
1
2
3
4
4
5
5
6
