Agilent 1290 Infinity Pump Service Kit 15

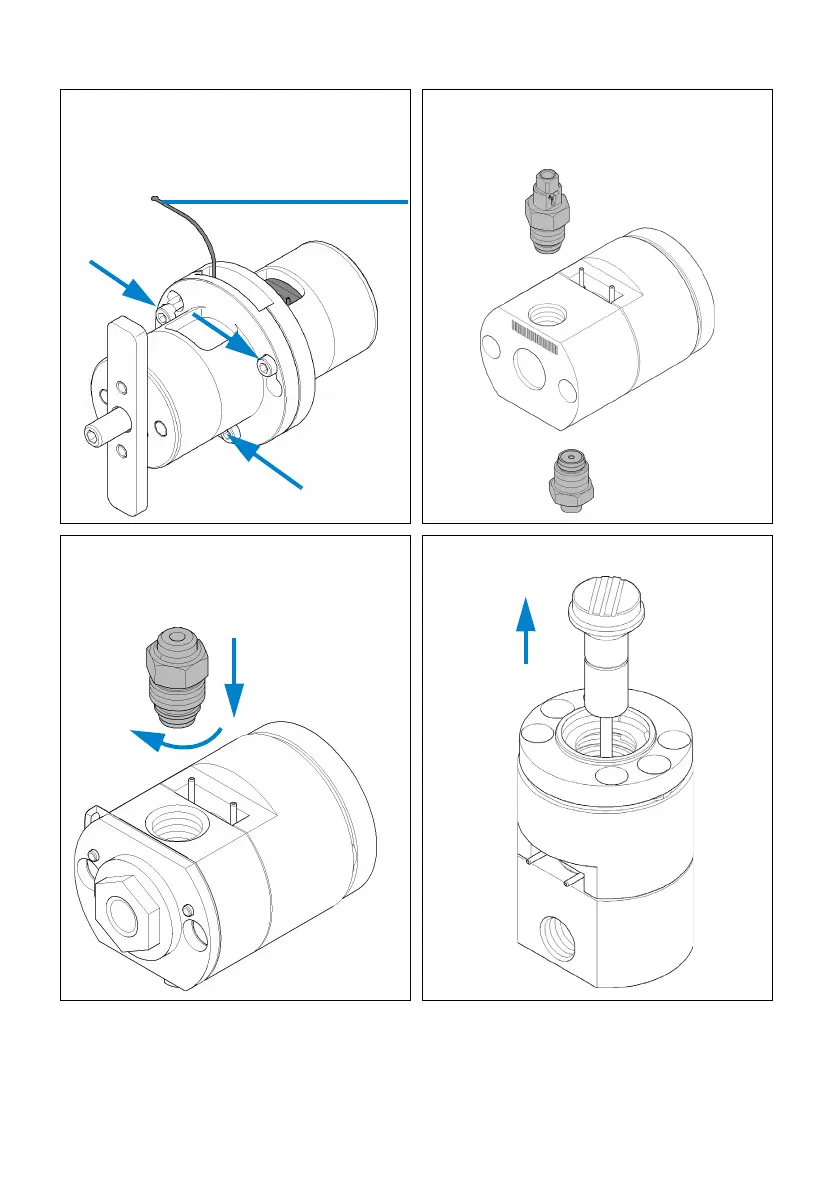

10 Open the 3 screws which have closed the
pump head alignment tool and take out the
aligned pump head.
11 For the primary pump head, install the inlet
valve and outlet valve.
12 For the secondary pump head, assemble and
install the outlet valve as shown.
13 Remove plunger assy..
