Agilent Technologies 4284A Technical Overview

Test fixtures
Agilent 16047A
24

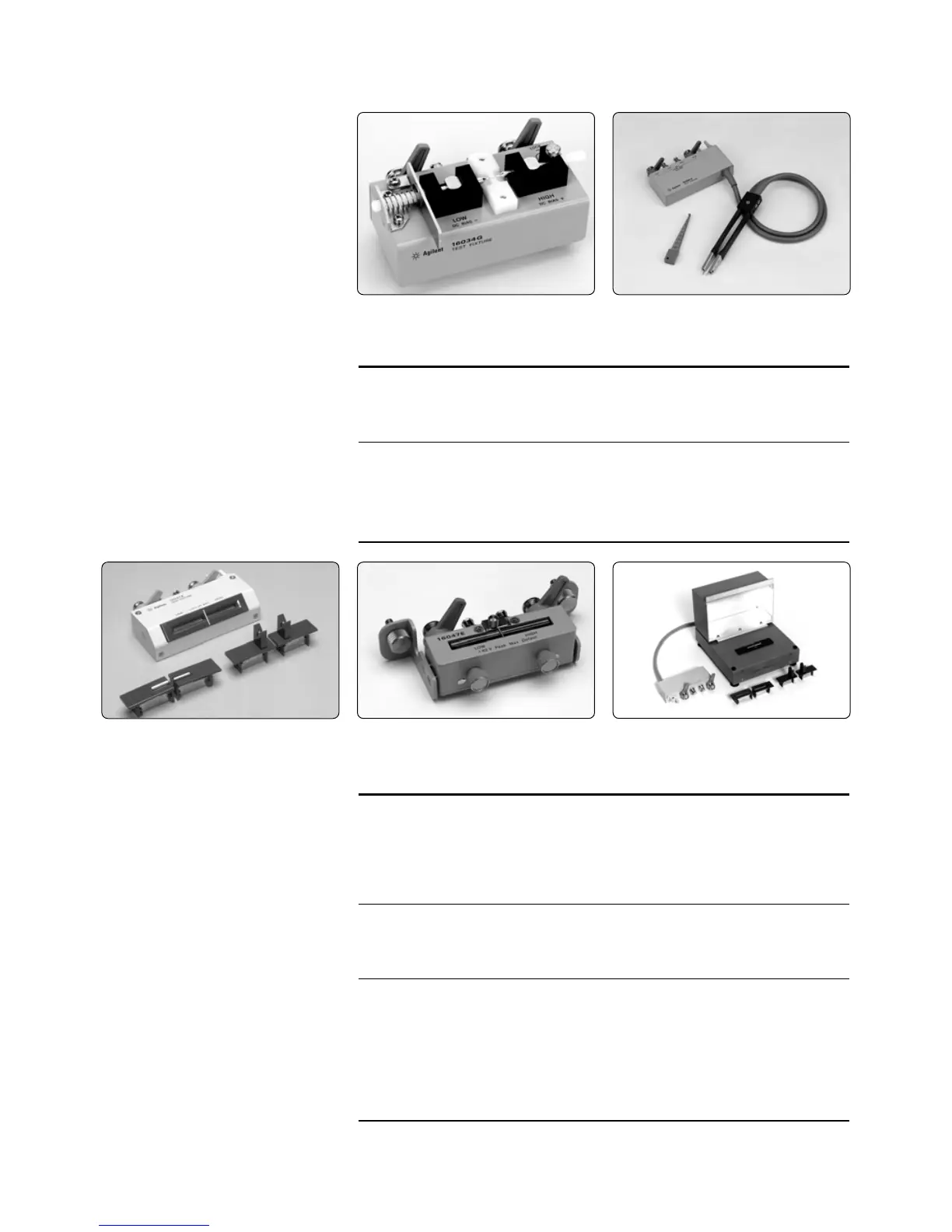

Agilent 16034G Agilent 16334A
Surface mount device fixture
Agilent 16034G/H test fixtures
Frequency: ≤ 110 MHz
Maximum DC bias voltage: ±40 V
Agilent 16334A test fixture
Frequency: ≤ 15 MHz
Cable length: 1 meter
Maximum DC bias voltage: ±40 V
Agilent 16047E Agilent 16065A
Radial and Axial lead fixtures
Agilent 16047A/D test fixture
Frequency: ≤ 13 MHz (A)
≤ 40 MHz (D)
Maximum DC bias voltage: ±35 V (A)
±40 V (D)
Agilent 16047E test fixture
Frequency: ≤ 110 MHz
Maximum DC bias voltage: ±40 V
Agilent 16065A external voltage bias fixture
Frequency: 50 Hz to 2 MHz
Maximum external
DC bias voltage: ±200 V
Maximum AC voltage: ±7 V
Blocking capacitor of 5.6 µF is connected in series with the Hc terminal.
Test fixtures continued on page 25
