3 Installation Procedure Clarity Control Module

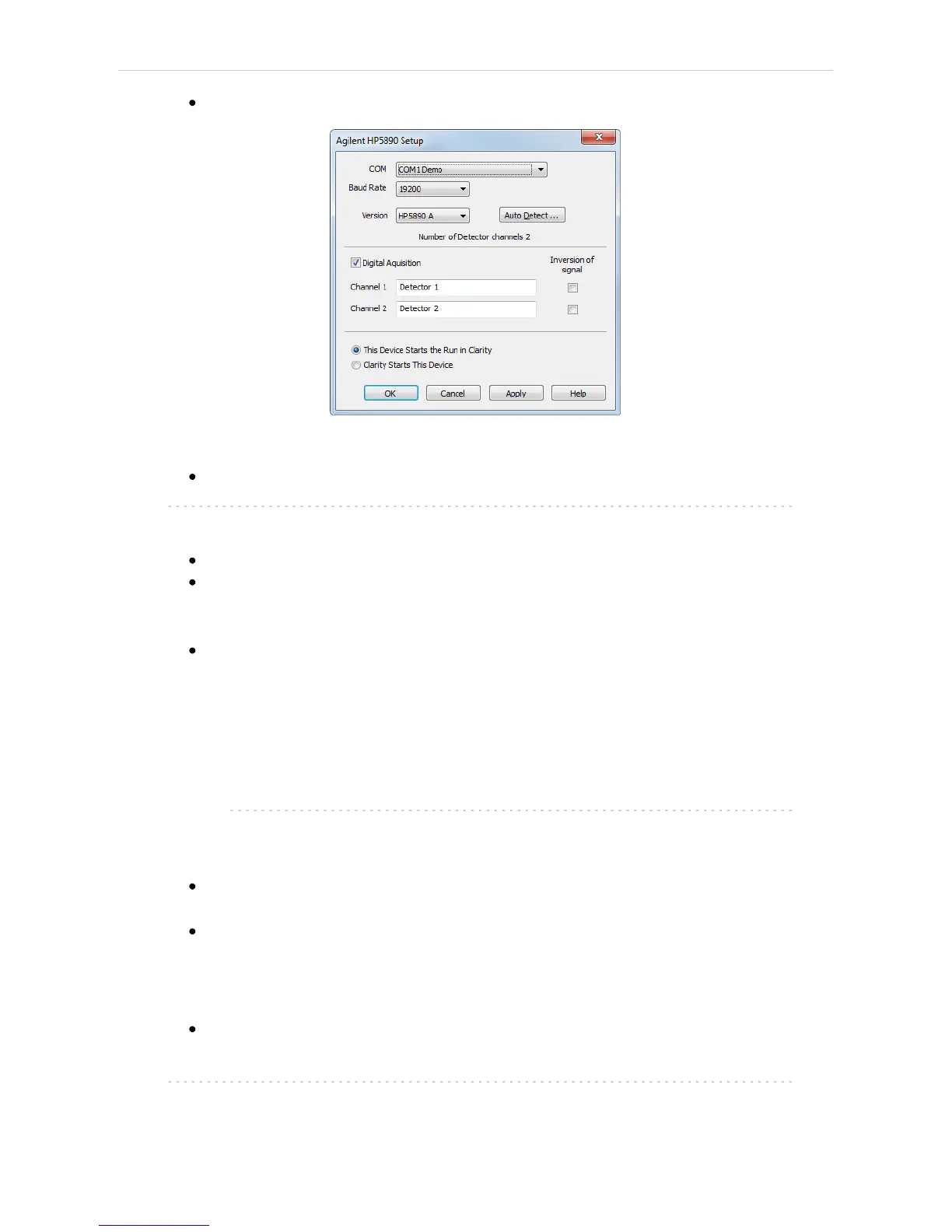

The Agilent HP5890 Setup dialog will appear.
Fig 5: Agilent HP5890 Setup
In the Agilent HP5890 Setup dialog set COM port, Baud Rate: 19200
Note: Other baud rates can be set according to the DIP switches in the GC unit.
Select the Version.
Check the Digital Acquisition checkbox and fill in the names of your
detectors. Left this checkbox empty only if you intent to collect the detector
signals with another A/D detector.
Check the This Device Starts the Run in Clarity / Clarity Starts This Device
radiobutton. With This Device Starts the Run in Clarity checked, the device
is started prior to Clarity by its front button or autosampler connected to
this device and passes the start to Clarity. When Clarity Starts This Device
is checked, Clarity is started prior to this device by separately wired
autosampler, Start button in Single Run or different device and then starts
this device.
Note: The This Device Starts the Run in Clarity option is checked by
default.
Use the Autodetect button to read in instrument configuration and check
the communication.
Press the OK button.
The Agilent 5890 GC Driver item ④ will appear in the Setup Control
Modules list in the left part of System Configuration dialog.
Switch to the desired Instrument X tab ⑤ in the right part of the System
Configuration dialog.
Note: The Instrument Type must be set to GC.
- 8 -
