Agilent Technologies 490 Micro GC Installation Instructions

Agilent 490 Micro GC
Installation Instructions 3
Mounting the Sample-in at the Front of the Agilent 490 Micro GC
1 Remove the side and front panels of the Agilent 490 Micro GC.
2 Make a hole in the preferred place on the front panel next to Sample 1. See
Figure 1.
3 Install the sample bracket. See Figure 2.

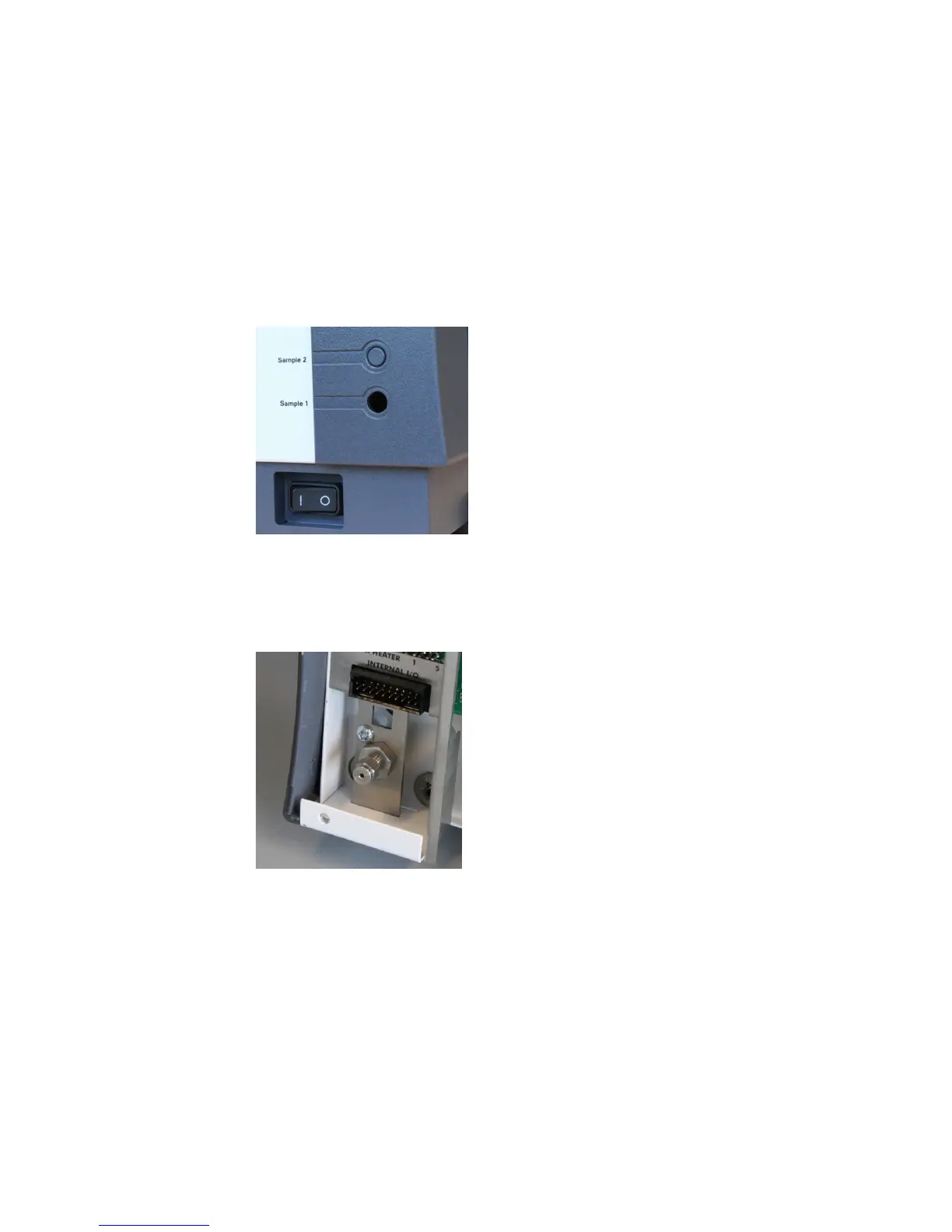

Figure 1 Sample 1 front panel hole
Figure 2 Sample bracket
