Installation Instructions 5
The diagrams below show the differences for the different field kits (Figure 6
and Figure 7). Plumb the tubing according to these diagrams and Figure 8.

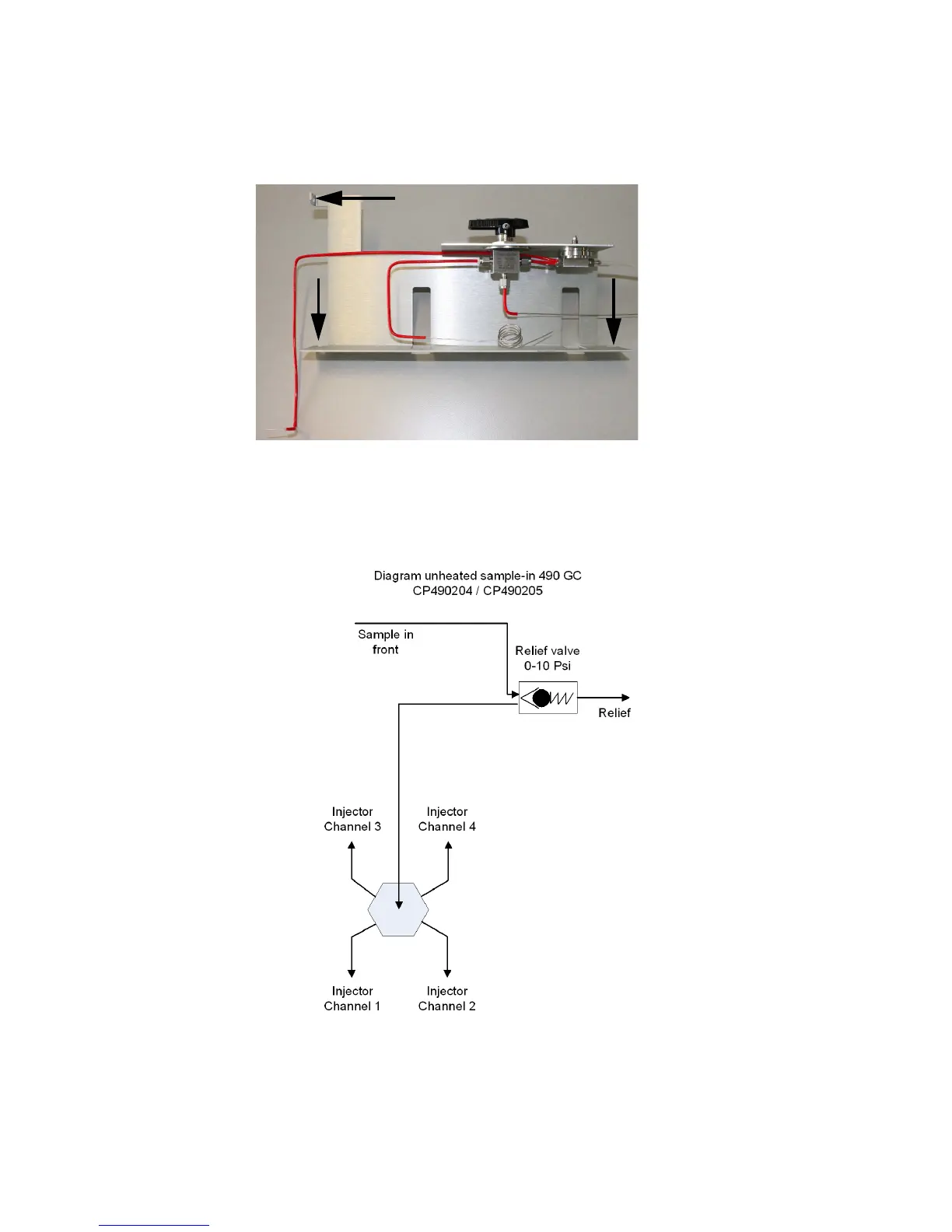

Figure 5 Sample bracket parts for CP490205 or CP490207
Figure 6 Diagram of unheated sample-in-Agilent 490 Micro GC for CP490204 or
CP490205
