Agilent Technologies 490 Micro GC User Manual

Checkout Information 2
Natural Gas Analyzers 14
4 meter CP-Sil 5 CB
The 4 meter CP-Sil 5 CB channel of the Natural Gas Analyzer A
Extended is specified for the analysis of light hydrocarbons
propane, n-butane, iso-butane, iso-pentane, and n-pentane.
Analysis of the NGA Gas Calibration standard results in the
chromatogram shown in Figure 9.
Analysis of a sample containing neo-pentane results in a
chromatogram similar to Figure 10.

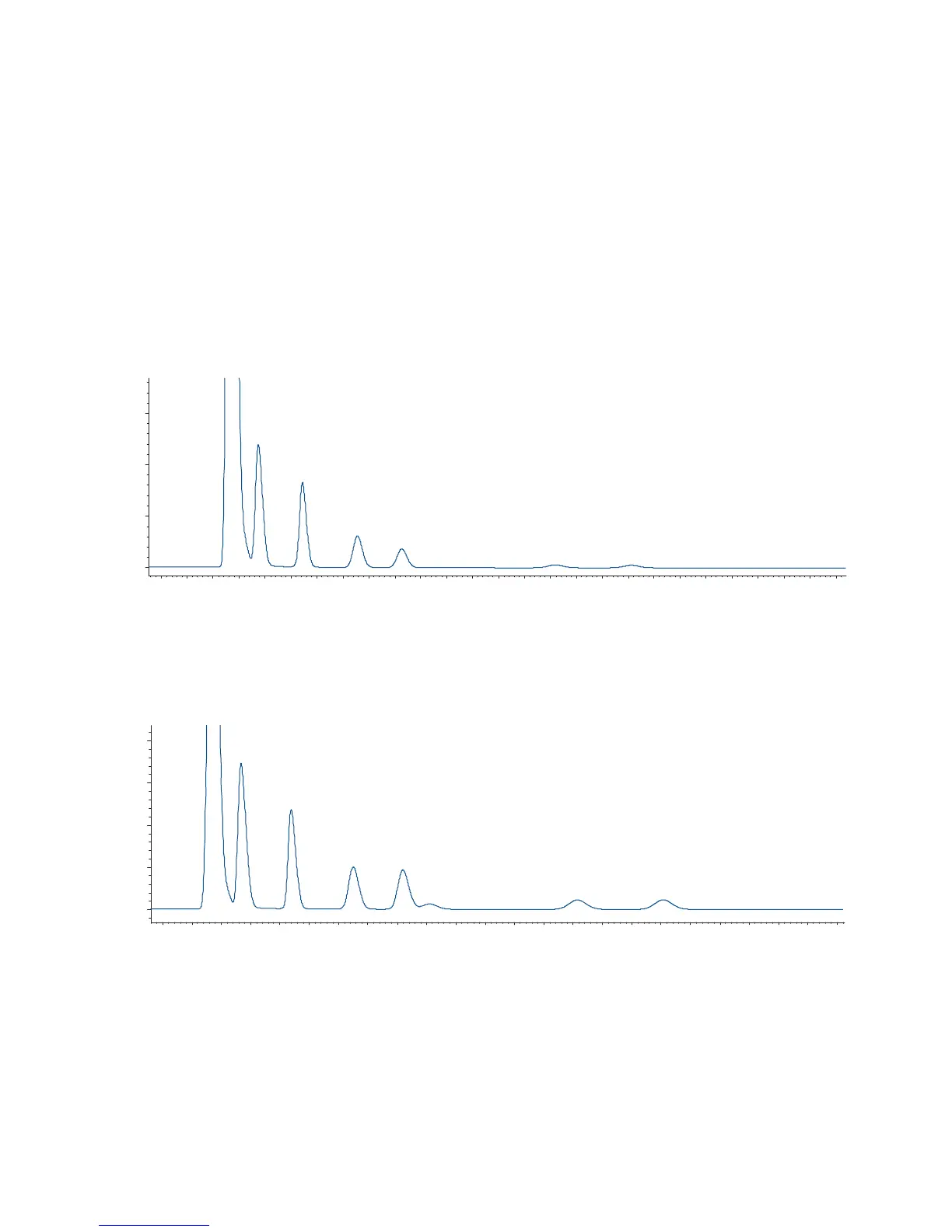

Figure 9 NGA Gas Calibration standard analyzed with the 4 meter CP-Sil 5 CB channel on Analyzer A Extended
Seconds
8 10 12 14 16 18 20 22 24 26 28 30 32 34
mVolt
0
50
100
150
Ethane
Propane
n-Butane
i-Pentane n-Pentane
i-Butane
Figure 10 Sample containing neo-pentane analyzed with the 4 meter CP-Sil 5 CB channel on Analyzer A
Extended
Seconds
10 12 14 16 18 20 22 24 26 28 30 32
mVolt
0
50
100
150
200
Ethane
Propane
i-Butane
n-Butane
neo-Pentane
i-Pentane n-Pentane
