Agilent Technologies 5100 ICP-OES User Manual

Installation
Agilent 5100 and 5110 ICP-OES User’s Guide 35
Torch assembly
To assemble the torch:
1 Position the flat side of the torch securing ring so that it faces the
top of the torch.

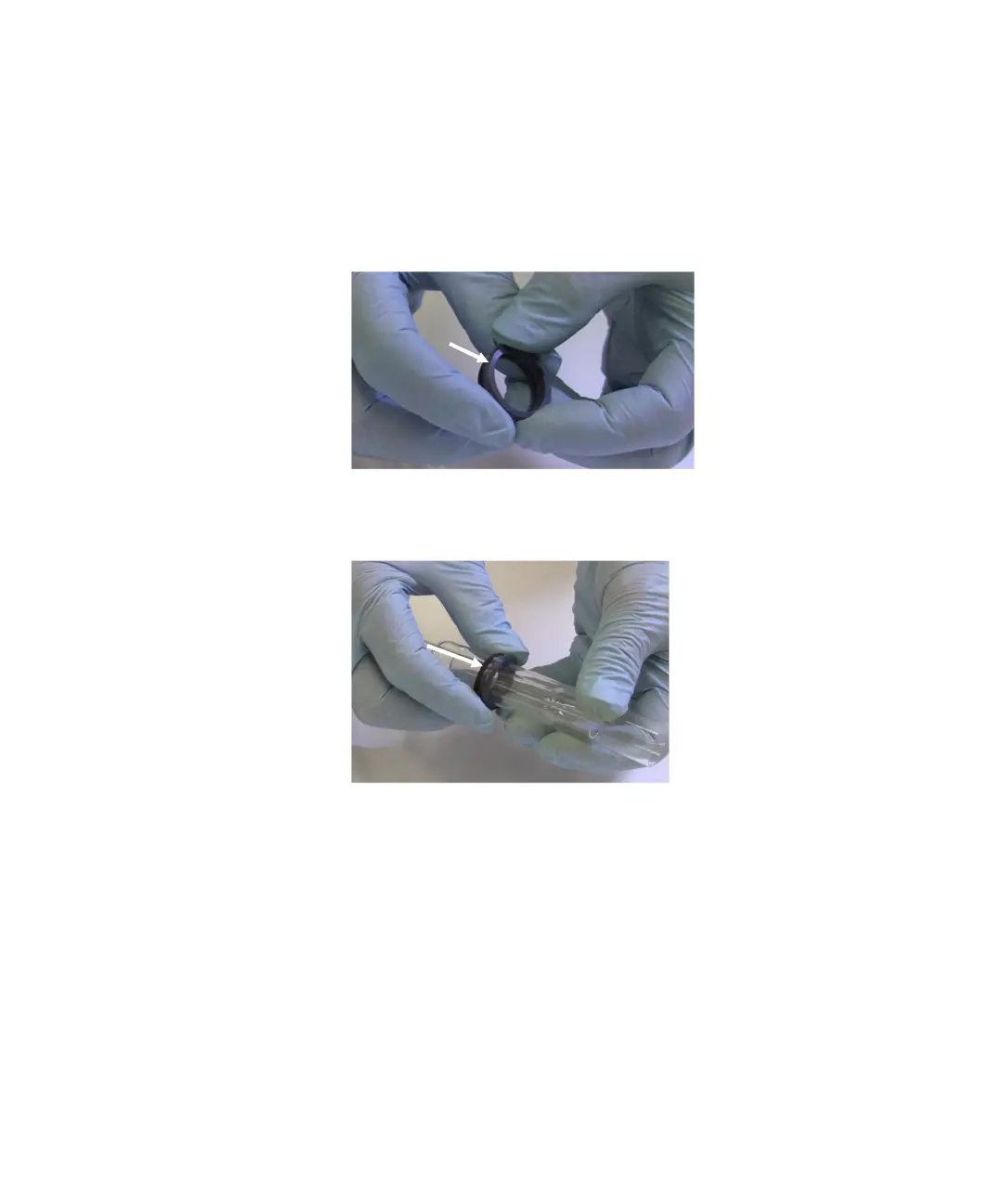

Figure 4. Flat side of torch securing ring
2 Slide the torch securing ring approximately 1/3 the way up the
torch.
Figure 5. Torch securing ring on torch
3 Slide the torch into the torch body.
