Agilent Technologies 54831A Service Guide

Chapter 2: Preparing for Use
To connect oscilloscope probes
2–10
To connect oscilloscope probes
1 Attach the probe connector to the desired oscilloscope channel or trigger input. Push
it straight on until it latches into place.

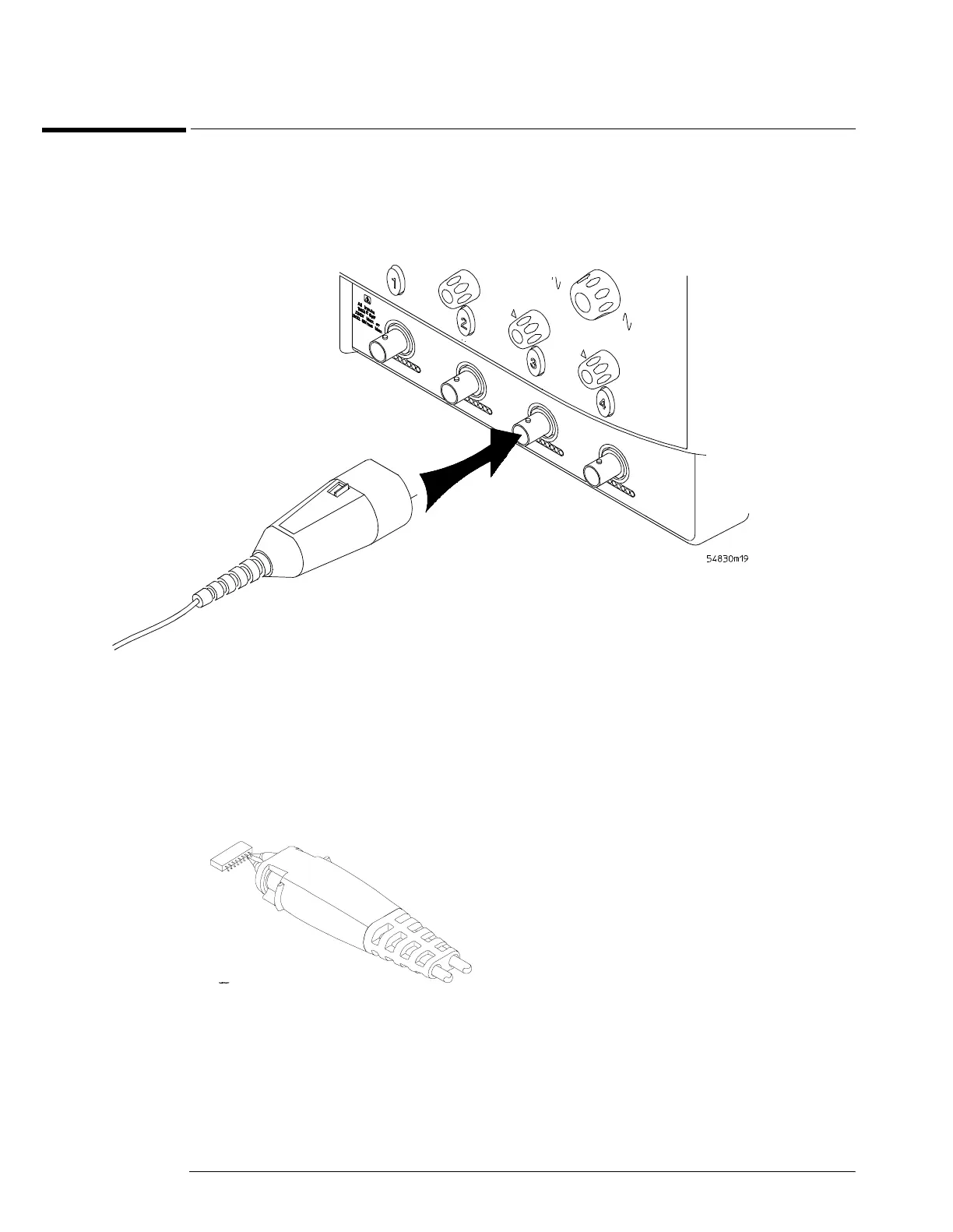

Figure 2-5
Attaching the Probe Connector
2 Connect the probe to the circuit of interest using the browser or other probing
accessories.
Figure 2-6
Probing the Circuit
