General Maintenance 4

5975/5977 Series MSD Operation Manual 121

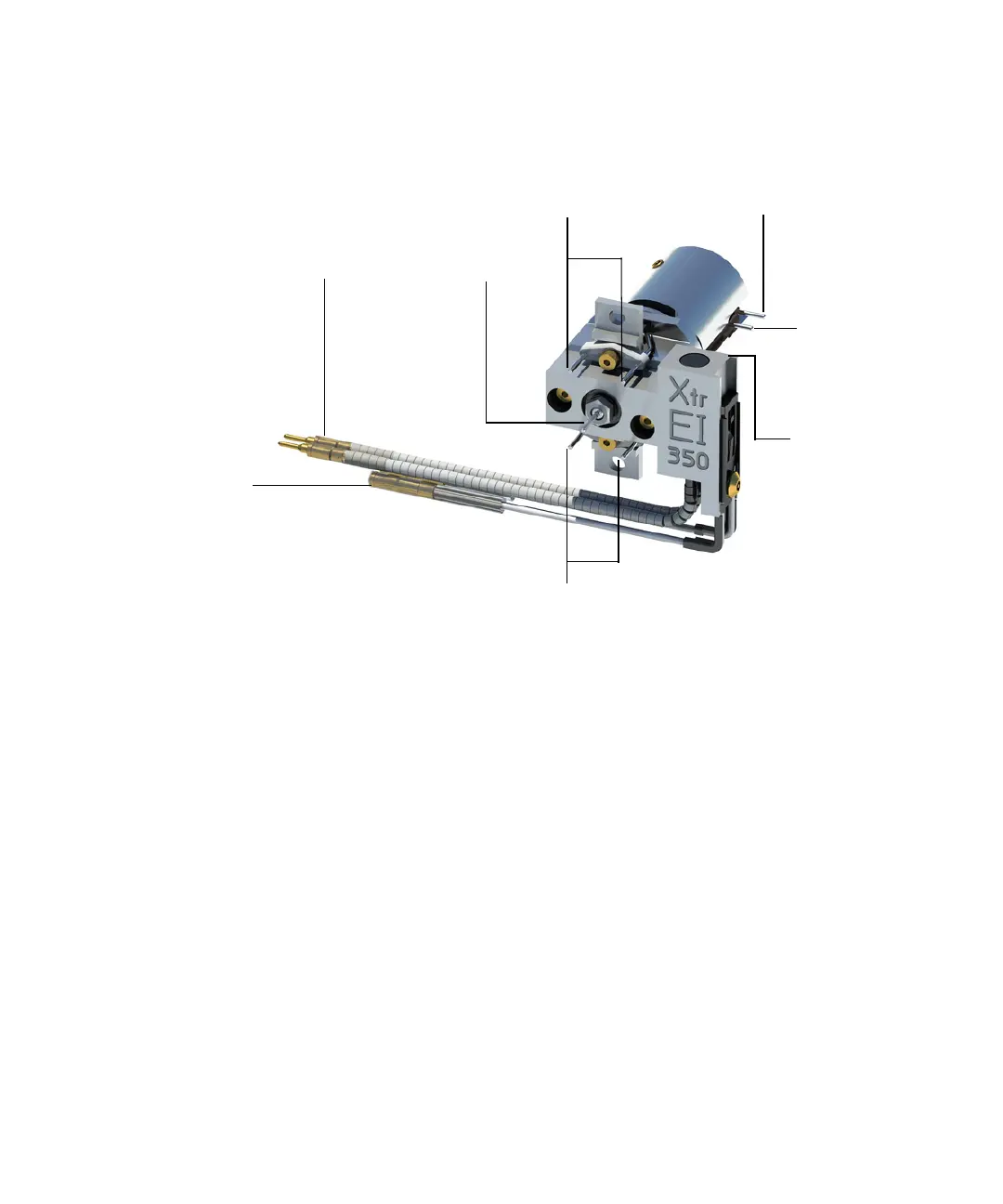

Figure 21 Ion source wiring - Extraction source shown, standard ion source similar

FB = Feedthrough Board

Ion source

heater wires

Ion focus lens

(orange wire

from FB)

Entrance lens

(blue wire from FB)

Filament 2

(black wires from FB)

Ion source

sensor wires

Extractor lens

(brown wire

from FB)

connector pin

hidden in this

view

Filament 1

(white wires from FB)

Repeller

(red wire from FB)
