118 5975/5977 Series MSD Operation Manual

4 General Maintenance

To Install the EI Ion Source

Materials needed

• Gloves, clean, lint-free

• Large (8650-0030)

• Small (8650-0029)

• Pliers, long-nose (8710-1094)

Procedure

1 Slide the ion source into the source radiator.

2 Install and hand tighten the source thumbscrews. Do not overtighten the

thumbscrews.

3 Connect the ion source wires as shown in Figure 21 on page 121. The

extractor source has an additional brown extractor wire that is missing

from the standard source.

4 Close the analyzer. See “To Close the Analyzer Chamber” on page 125.



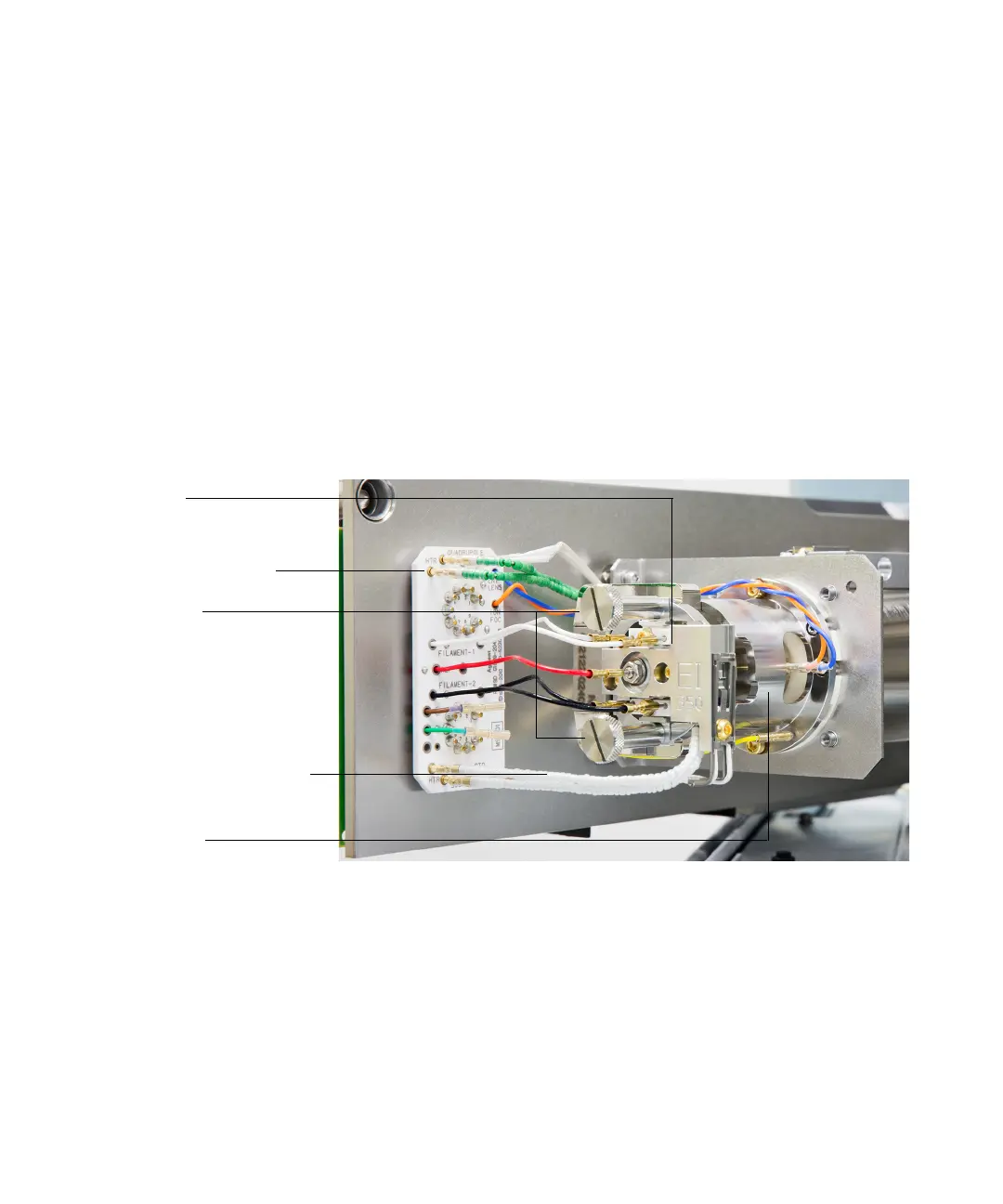

Figure 19 Installing the EI ion source

Source feedthrough board

Ion source

Thumbscrews

Source heater and temperature

sensor wires

Source radiator
