28
5975/5977 Series MSD Operation Manual
1
Introduction
6
Repeat steps
3
through
5
for the other fuse. Always replace both fuses.
7
Reconnect the MSD pow
er cord to the electrical outlet.
8
Pump do
wn the MSD.

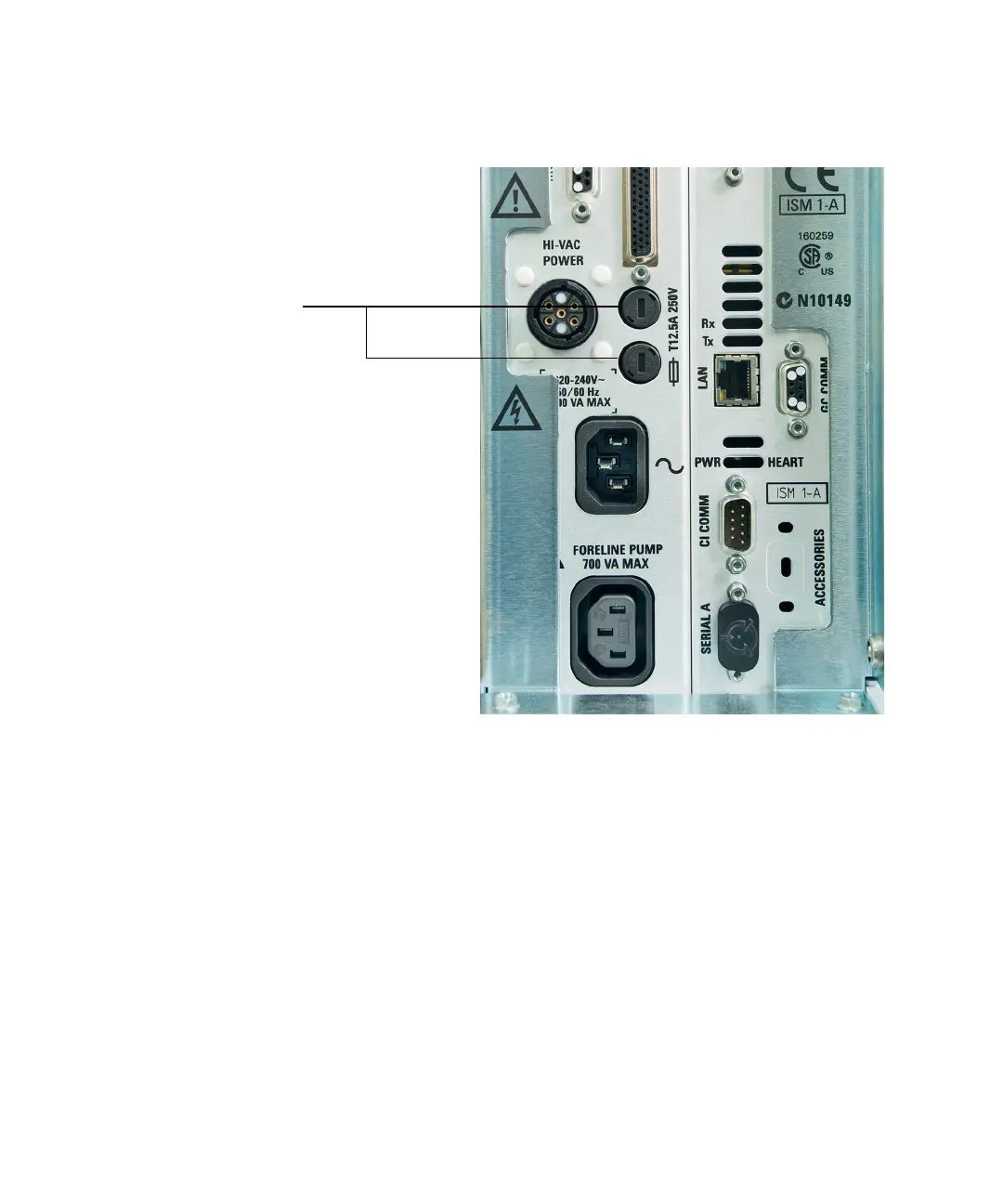

Figure 2
Primary fuses
Primary fuses in holders
27
29
