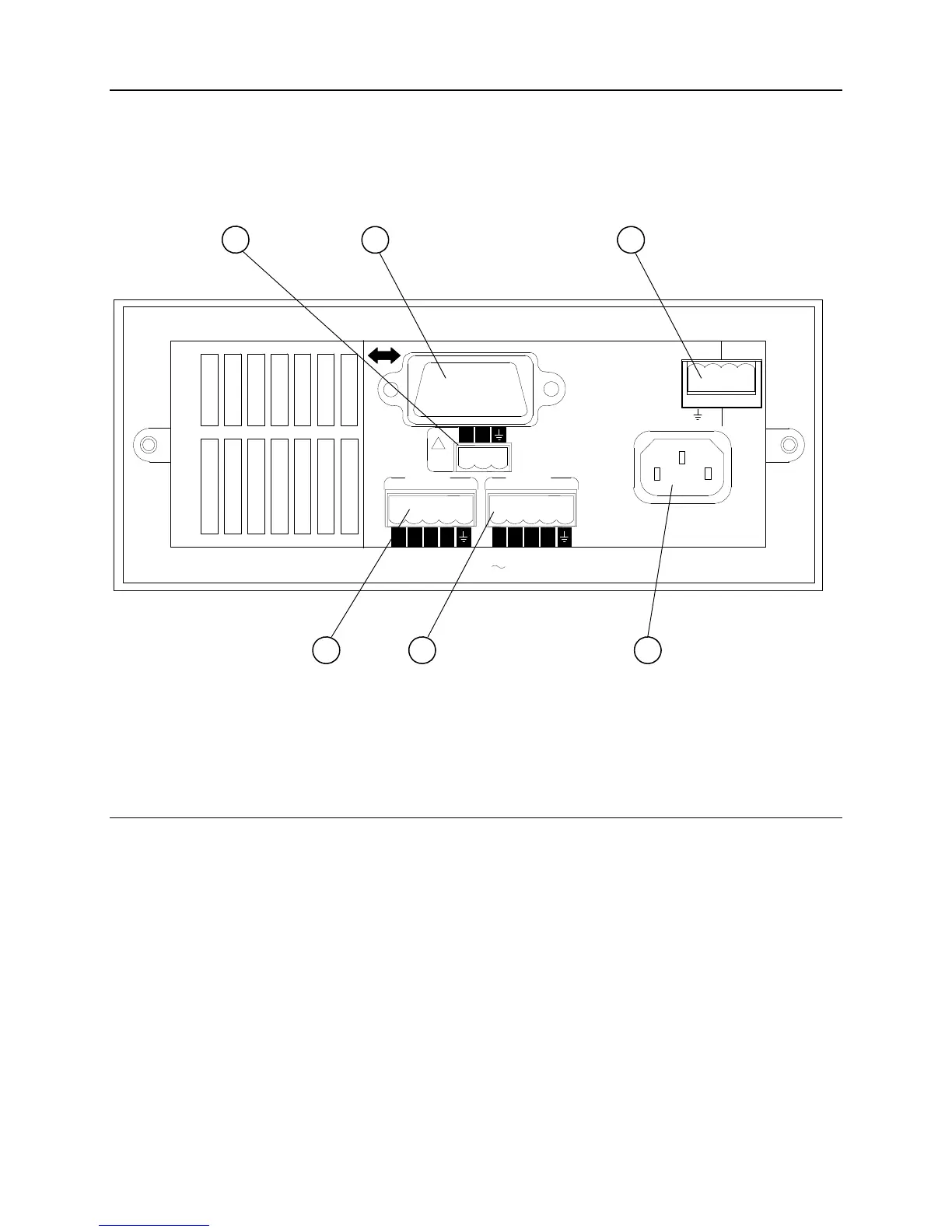

The Rear Panel - At a Glance
1 DVM inputs.
Connector plug is
removable.
2 GPIB (IEEE-488)
interface connector.
3 INH/FLT connector. Can
be configured for Digital I/O
and Trigger input. Connector
plug is removable.
WARNING:
NO OPERATOR SERVICEABLE PARTS INSIDE, REFER SERVICING TO SERVICE TRAINED PERSONNEL.
WARNING:
FOR CONTINUED FIRE PROTECTION, USE SPECIFIED LINE FUSE
-+
+S
INH FLT
+
-+
2 3
4 5
1
6
-
S
OUTPUT 2
0 - 12V / 0 - 1.5A
OUTPUT 1
0 - 15V / 0 - 3A
-
S
+S
+-
!
DVM
+-
4 Output 2 connector
(Agilent 66319B/D only).
Connector plug is removable.
5 Output 1 connector.
Connector plug is removable.
IMPORTANT: Install this connector with
its supplied sense jumpers before applying
power to the unit.
6 Power cord
connector (IEC 320)
Instrument Configuration
Use the front panel Address key to configure the interface
Refer to “Front Panel Menus - At a Glance”
♦ Enter the GPIB bus address.
♦ Display the firmware revision and serial number.
