Module 7
Measurement Functions
7-4

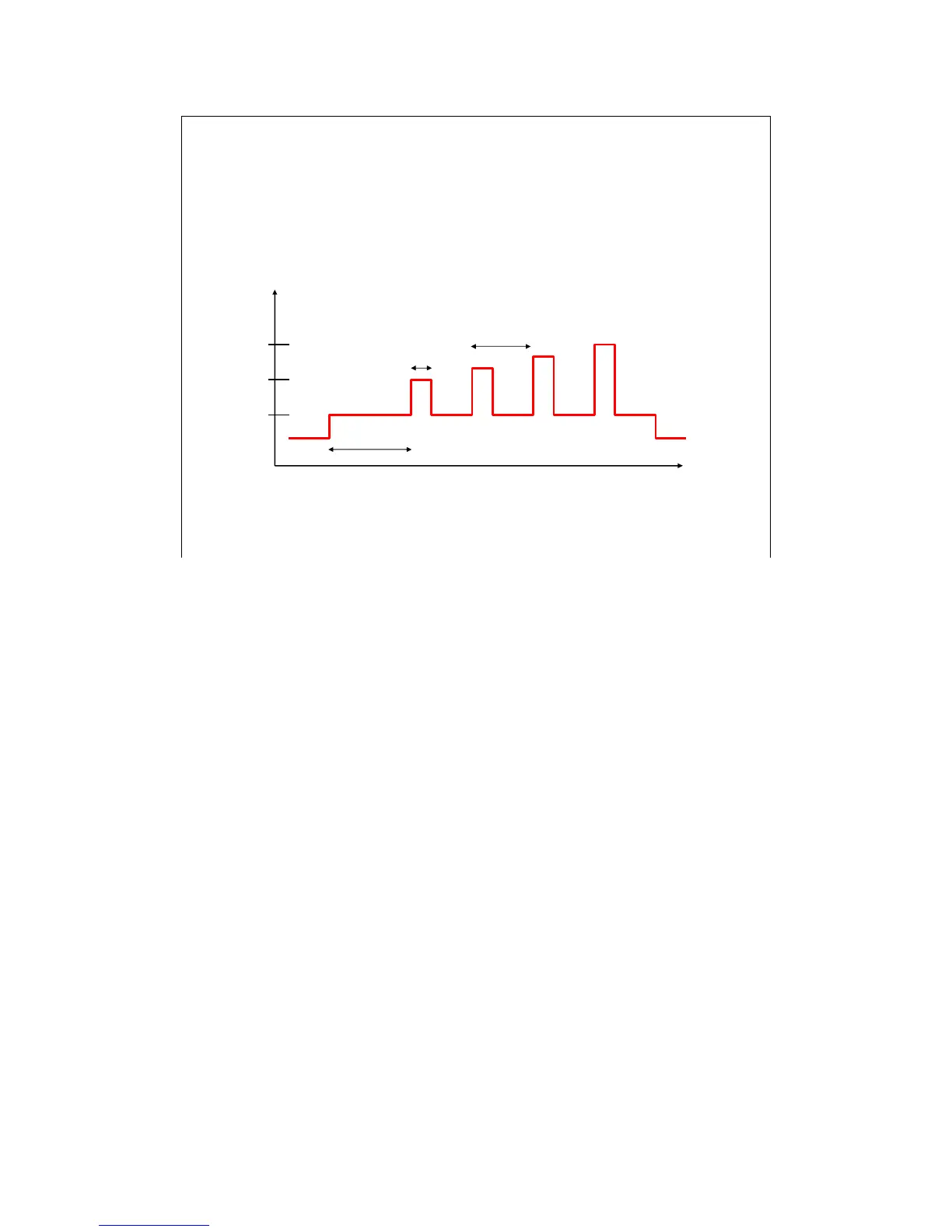

hold time
pulse period
pulse width
stop
start
base
output voltage
or current
time
SMU Pulse Mode
VAR1 Sweep
When you select VPULSE or IPULSE on the Channel Setup screen, the SMU Pulse area will appear
on the Measurement Setup screen.
Pulse period may be adjusted from 5 ms to 5 s in 100 us steps. Pulse period is measured from the
base value to peak value transition, between two consecutive pulses.
Pulse width may be adjusted from 0.5 ms to 2 s in 100 us steps. Pulse width is measured between the
transition from base value to peak value and the transition from peak value to base value.
