Agilent Technologies B1500A Training Manual

Module 8
Capacitance Measurement
8-10
DC bias:
-5 V to +5 V
Frequency
and Oscillation level
Integration time

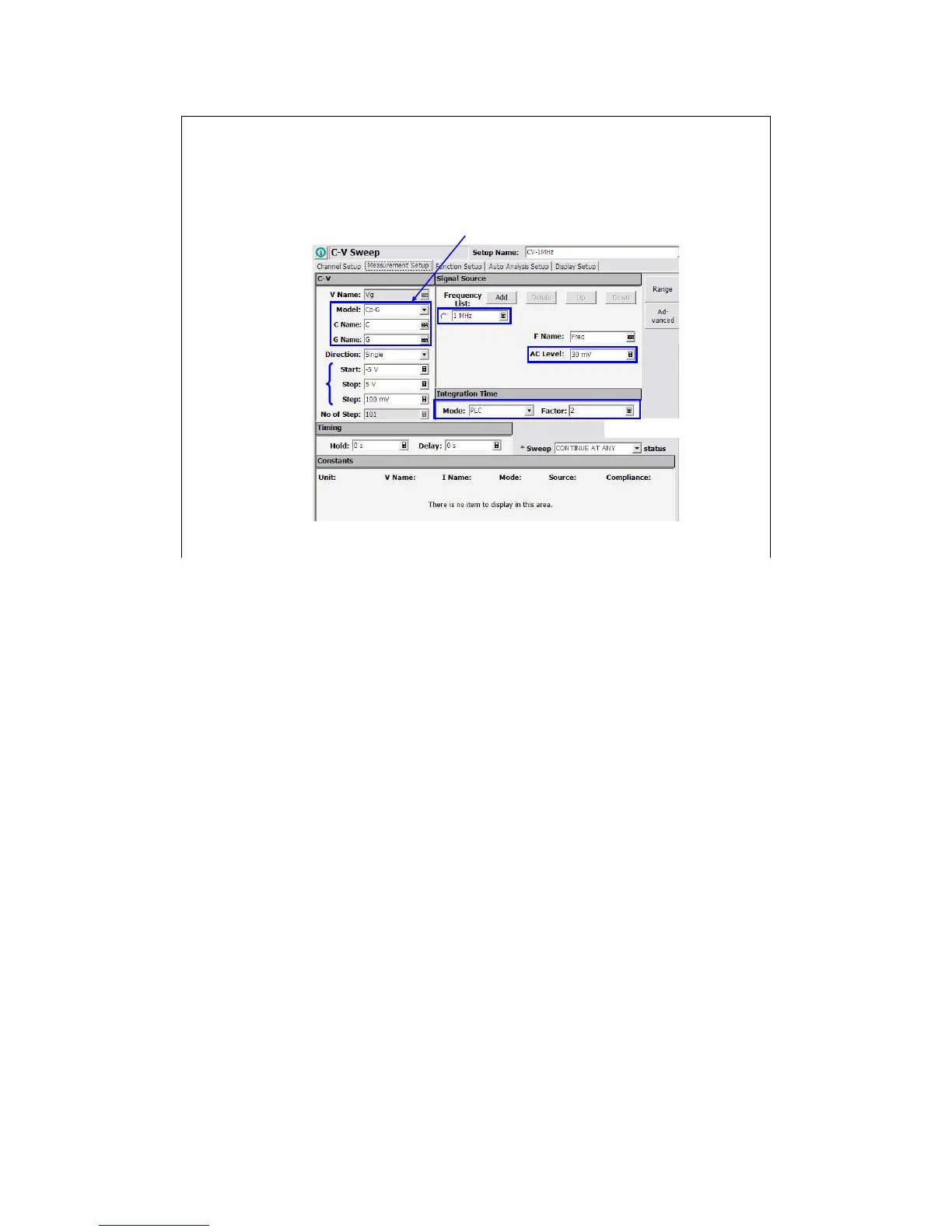

Selects measurement parameters
Capacitance Measurement
Measurement Setup
1. Select the Cp-G mode, and enter the C Name and G Name.
2. Set the Start, Stop, and Step to specify the DC bias sweep condition.
3. Set the Frequency List to specify the measurement frequency.
4. Set the AC Level to specify the AC signal level (oscillation level).
5. Set the Integration Time as you like.
(End of This Class Exercise)
