Installation
Cary 100/300/4000/5000/6000i/7000 Spectrophotometers User’s Guide 27
Cary 4000/5000/6000i/7000
The Cary 4000/5000/6000i/7000 comes with two single cell holders.
All instruments come with base plates as standard.
NOTE
The single cell holders must be installed onto the base plate before they can be
installed into the sample compartment of the instrument. For instructions on
installing the base plate into the sample compartment, see Page 34.
To install the cell holder base and cell holders:
1 Open the sample compartment lid and remove the front cover.
2 Place the cell holder base in the sample position on the base
plate. The notched pillar (see Figure 3) should be on the side to
the right.
NOTE
If you are operating in normal or double mode, the sample position is at the
front of the sample compartment. If you are operating in reverse mode, the
sample position is at the rear.

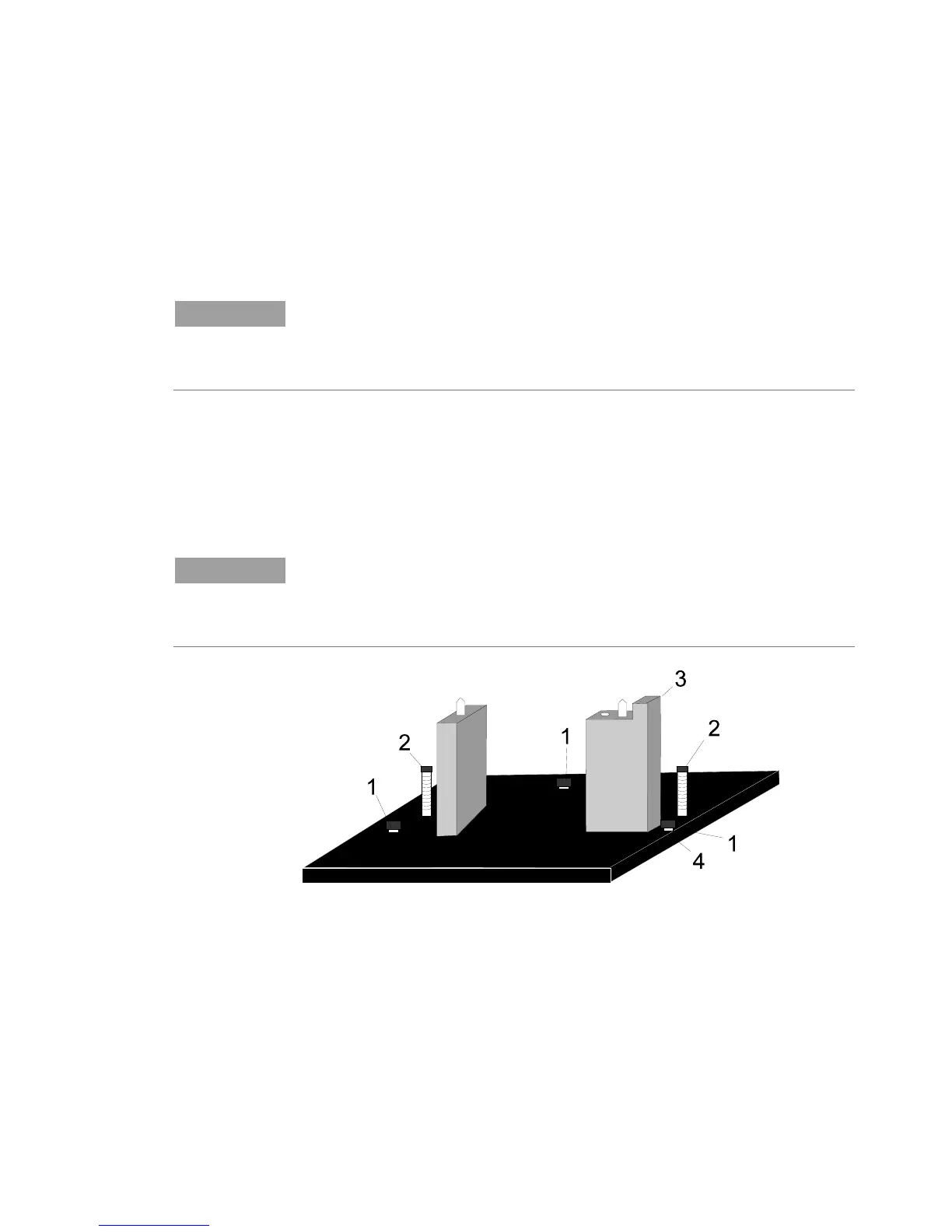

Figure 3. Cell holder base
1) Adjusting screws 2) Locating screws
3) Notched pillar 4) Locknuts
3 Tighten the two locating screws using the 1/8 inch hexagonal
balldriver.
