266 Chapter 10
Replaceable Parts Lists and Locations
Hardware

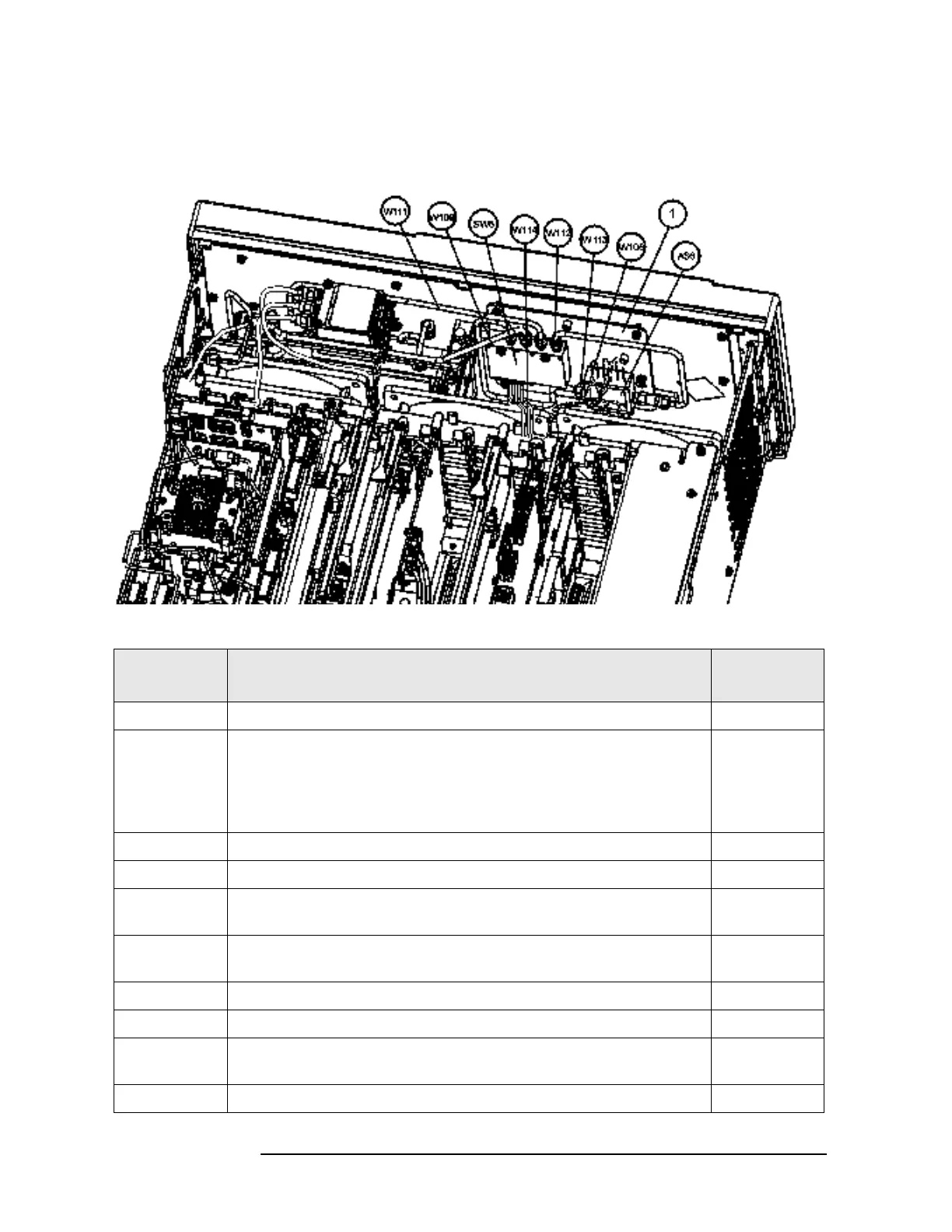

Figure 10-13 E4440A, E4443A, E4445A - Option 110 (with Option 123)
Reference
Designator
Description Agilent Part
Number
A36 A36 Microwave Preamp 26.5 GHz (Option 110) 0955-1663
FL4
(not shown,
attaches to
SW1 port 1
and W115)
FL4 High Pass Filter, 3 GHz (Option 110 and 123 combination) 0955-1906
SW6 SW6 Switch, Microwave (Option 110) N1811-60005
W106 W106, Wire Harness, Option Driver P1 to Preamp (Option 110) E4446-60076
W109 W109, Cable semi-rigid A15 Attenuator to Switch 6 (Option 110
or Option 110 with Option 123
E4440-20315
W111 W111, Cable, semi-rigid, Switch 6 to Option 123 Switch 1 Center
Port (Opt 110 with Option 123)
E4440-20317
W112 W112, Cable, semi-rigid, Preamp Out from Switch 6 (Option 110) E4440-20323
W113 W113, Cable, semi-rigid, Preamp In from Switch 6 (Option 110) E4440-20304
W114 W114, Cable, ribbon, Switch Control, Option Driver Assy to SW 6
for Option 110
E4440-60427
1 Bracket, Switch/Preamp (Option 110) E4440-00051
