Chapter 1 21
Signal Generator Overview
Rear Panel

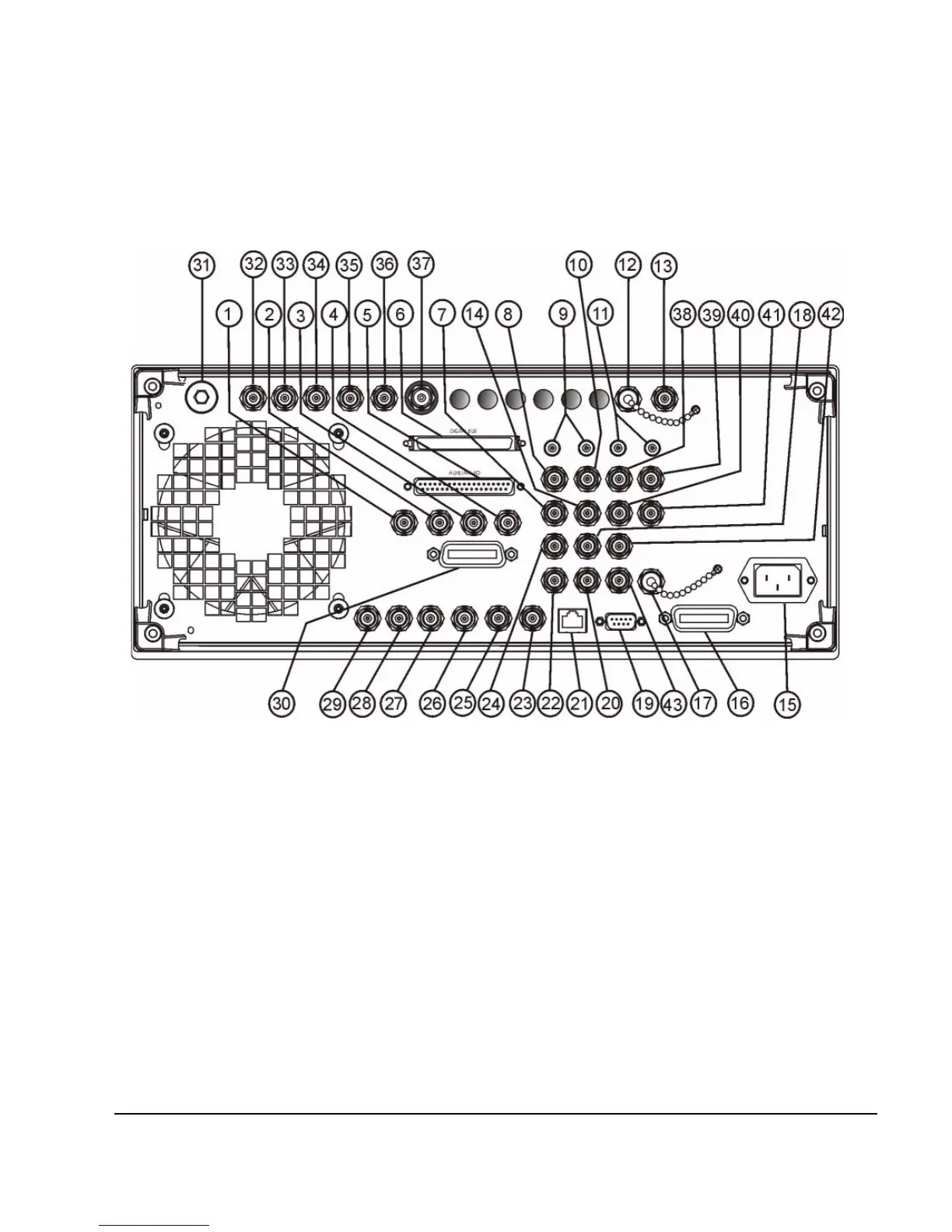

Figure 1-4 E8267D Option 1EM Rear Panel
1. EVENT 1 16. GPIB 31. RF OUT
2. EVENT 2 17. 10 MHz EFC 32. EXT 1
3. PATTERN TRIG IN 18. ALC HOLD (Serial Prefixes >=US4722/MY4722) 33. EXT 2
4. BURST GATE IN 19. AUXILIARY INTERFACE 34. PULSE SYNC OUT
5. AUXILIARY I/O 20. 10 MHz IN 35. PULSE VIDEO OUT
6. DIGITAL BUS 21. LAN 36. PULSE/TRIG GATE INPUT
7. Q OUT 22. 10 MHz OUT 37. ALC INPUT
8. I OUT 23. STOP SWEEP IN/OUT 38. DATA CLOCK
9. WIDEBAND I INPUTS 24. BASEBAND GEN CLK IN 39. I IN
10. I–bar OUT 25. Z–AXIS BLANK/MKRS 40. SYMBOL SYNC
11. WIDEBAND Q INPUTS 26. SWEEP OUT 42. DATA
12. COH CARRIER (Serial Prefixes
>=US4646/MY4646)
27. TRIGGER OUT 41. Q IN
13. 1 GHz REF OUT (Serial Prefixes
>=US4646/MY4646)
28. TRIGGER IN 43. LF OUT
14. Q–bar OUT 29. SOURCE SETTLED 44. Flash Drive (Serial Prefixes
>=US4829/SG4829/MY4829 (E8267D)
and >=US4928/SG4928/MY4928
(E8257D))
15. AC Power Receptacle 30. SOURCE MODULE INTERFACE
