Installing the Autosampler
Installing the Thermostatted Autosampler
6 Place the Autosampler on top of the Thermostat. Make sure that the
Autosampler is correctly engaged in the Thermostat locks.
7 Place the air channel adapter into the autosampler tray base. Make sure the
adapter is fully pressed down. This assures that the cold airstream from the
Thermostat is correctly guided to the tray area of the Autosampler.

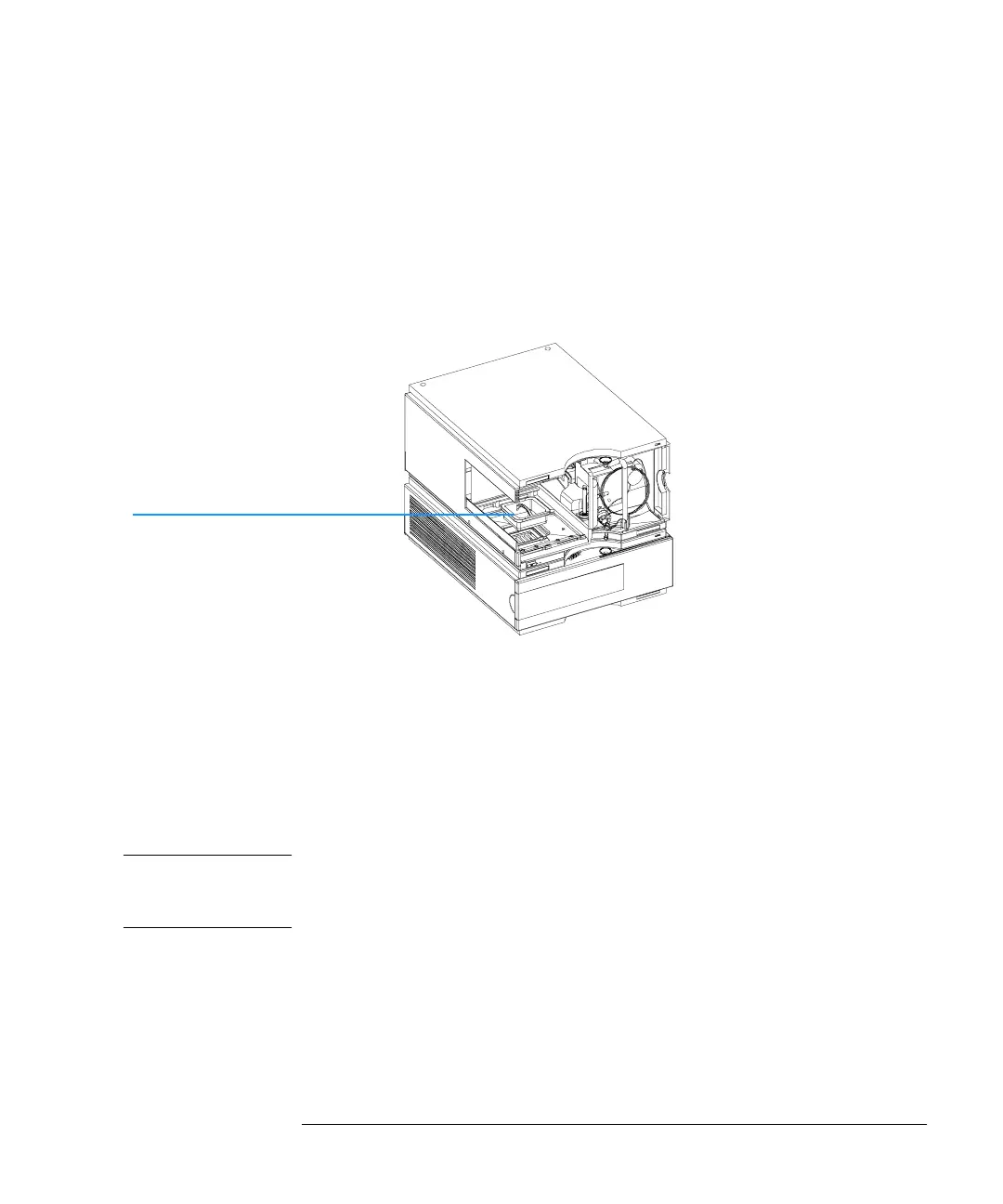

Figure 8 Air channel adapter
8 Re-install the tray
9 Ensure the power switch on the front of the Autosampler is OFF and the
power cables are disconnected.
10 Connect the cable between the Autosampler and the Thermostat,
see Figure 9.
WARNING Do not disconnect or reconnect the autosampler to ALS thermostat
cable when the power cords are connected to either of the two modules.
This will damage the electronics of the modules.
11 Connect the power cables to the power connectors.
12 Connect the CAN cable to the other Agilent 1100 modules.
