174 Agilent InfinityLab LC Series 1260 Infinity II Isocratic- and Quaternary Pumps User Manual
8 Maintenance
Replace Leak Handling System Parts
Replace Leak Handling System Parts

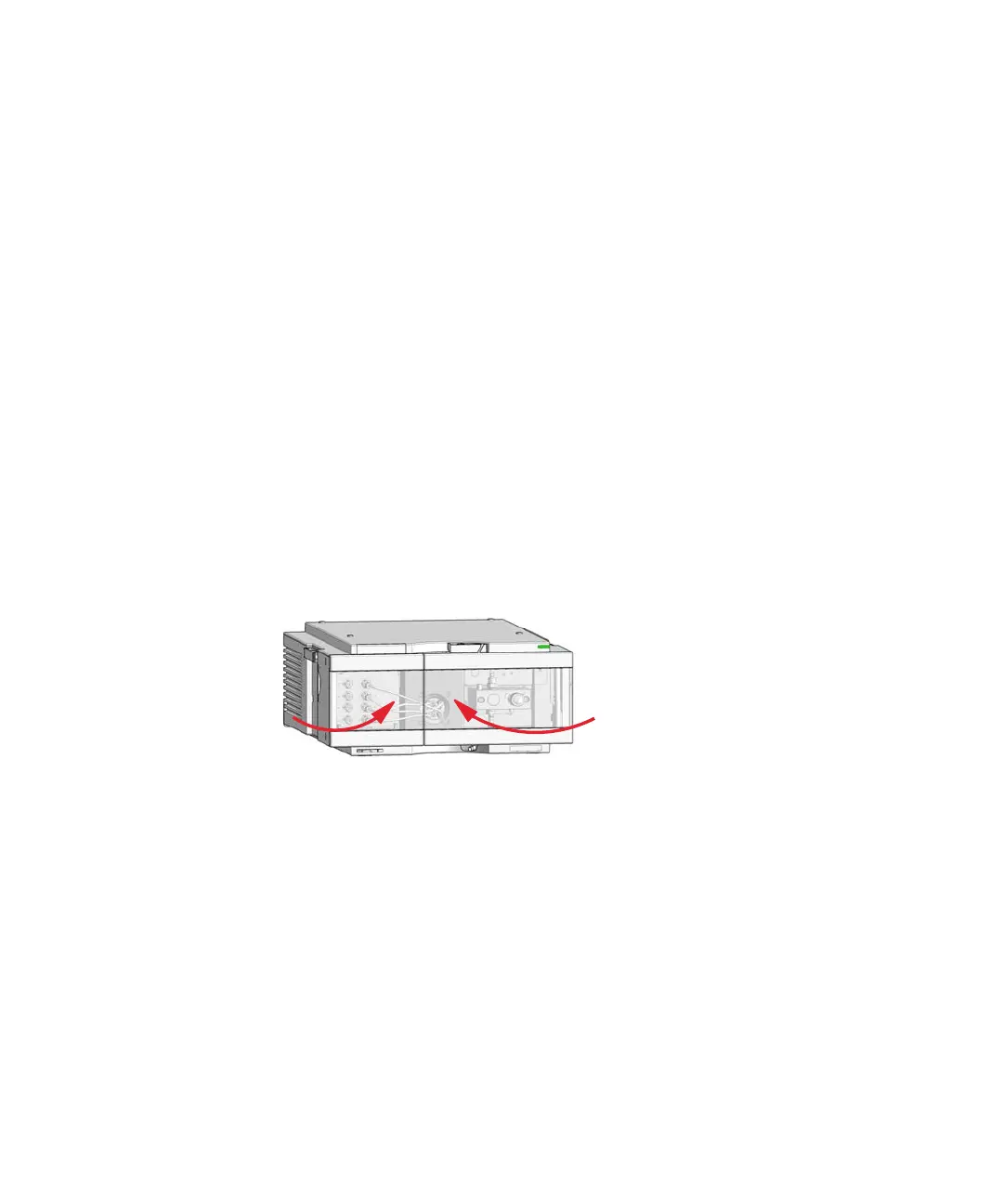

1 Open the doors.
2 Press the Leak Adapter down and remove it together with the tubing.
3 Install the Leak Adapter by pressing it into the Main Cover.
4 Insert the Tubing (approximately 85 mm required for replacement) between
Leak Adapter outlet and Leak Panel.
5 Close the doors.
Parts required p/n Description
5043-0856 Leak Adapter
5063-6527 Tubing assembly, i.d. 6 mm, o.d. 9 mm, 1.2 m (to waste)
approximately 85 mm required
