5
Technical Information
Pump Electronic Controller
82/102 HS452, HS652 Rotary Vane Pumps User Manual / 87-900-978-01 (H)

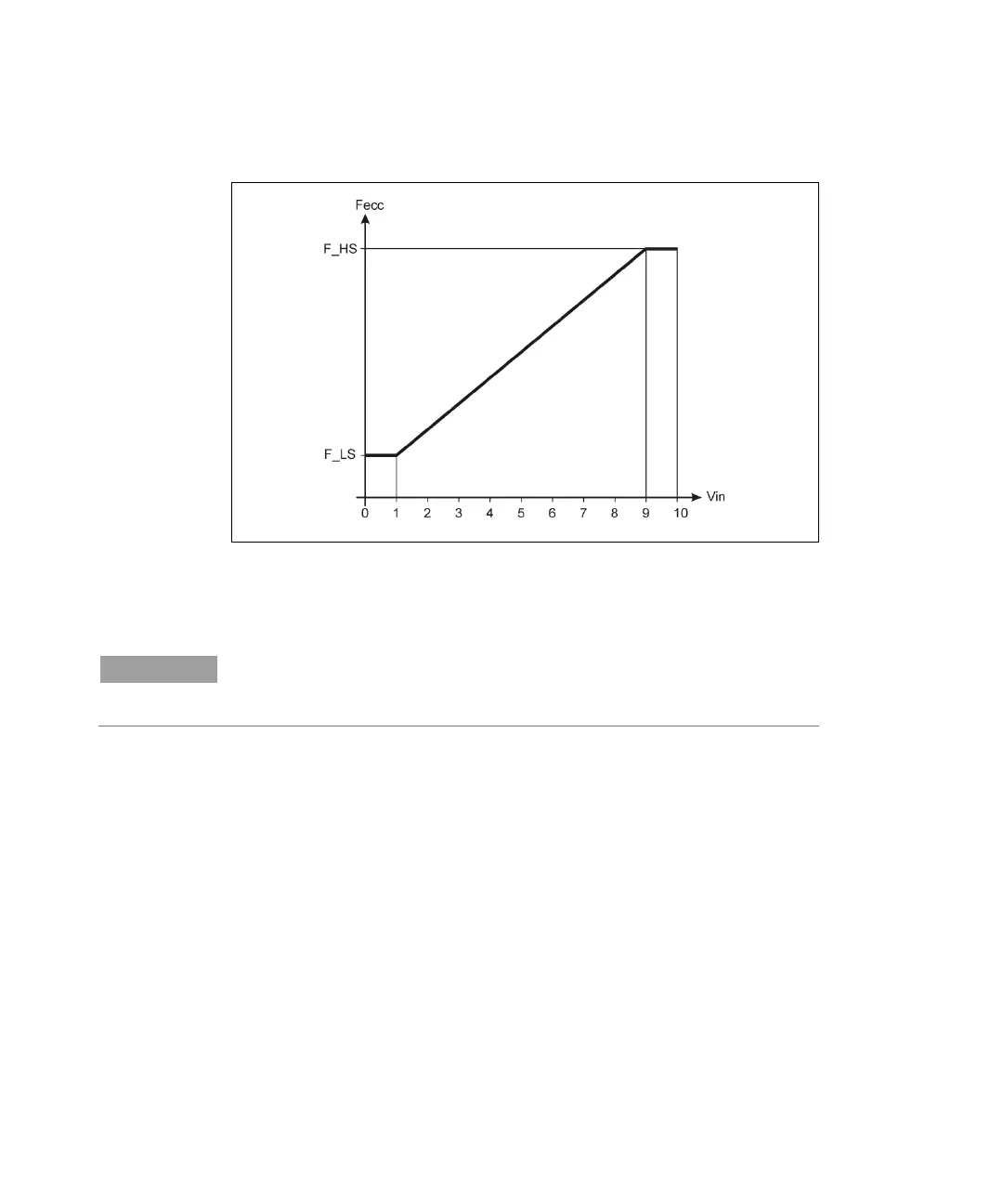

Figure 10
NOTE
The pump operation is I/O signals dependent so you must always plug in the
provided mating connector to start the pump.
