IP44 Accessory Kit P/N 949-9367
5
HS452, HS652 Rotary Vane Pumps User Manual / 87-900-978-01 (H) 93/102
IP44 Accessory Kit Use

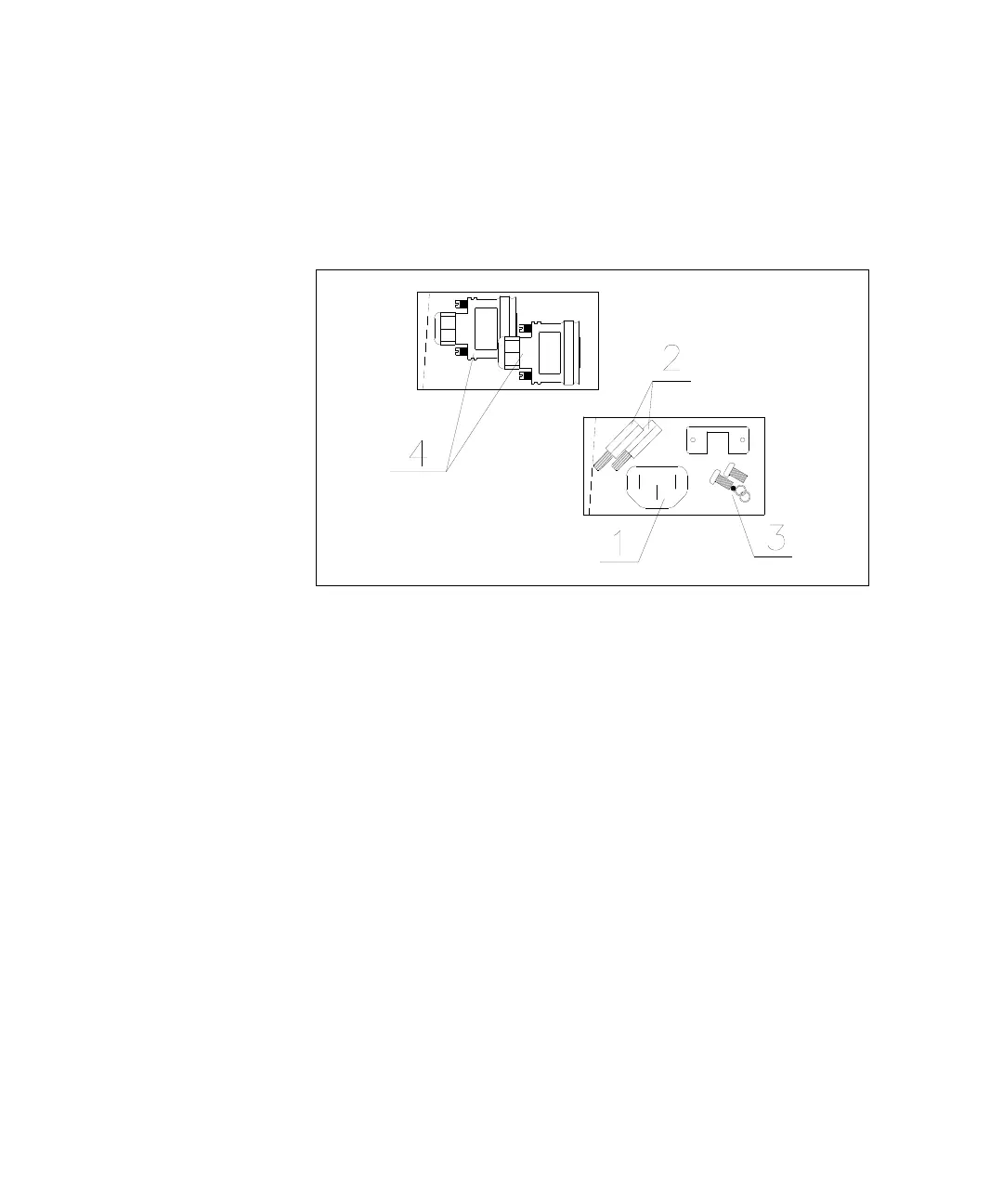

Figure 11
1 Remove the spring bracket mounted on standard IEC socket.
2 Insert the “D” rubber plate (item 1) into the pump’s IEC main
socket pushing it till the socket bottom.
3 Screw down the two brackets spacers (items 2) on the standard
IEC socket spacers
4 Insert the main cable plug.
5 Fix the main cable plug by using the bracket and screws/washers
(item 3).
6 Exchange the 9 pin “D” mating connector plastic shells with the
IP44 shells (items 4) contained in the IP44 accessory kit (see the
following figure).
