Technical Information
IP44 Accessory Kit P/N 949-9367
94/102 HS452, HS652 Rotary Vane Pumps User Manual / 87-900-978-01 (H)

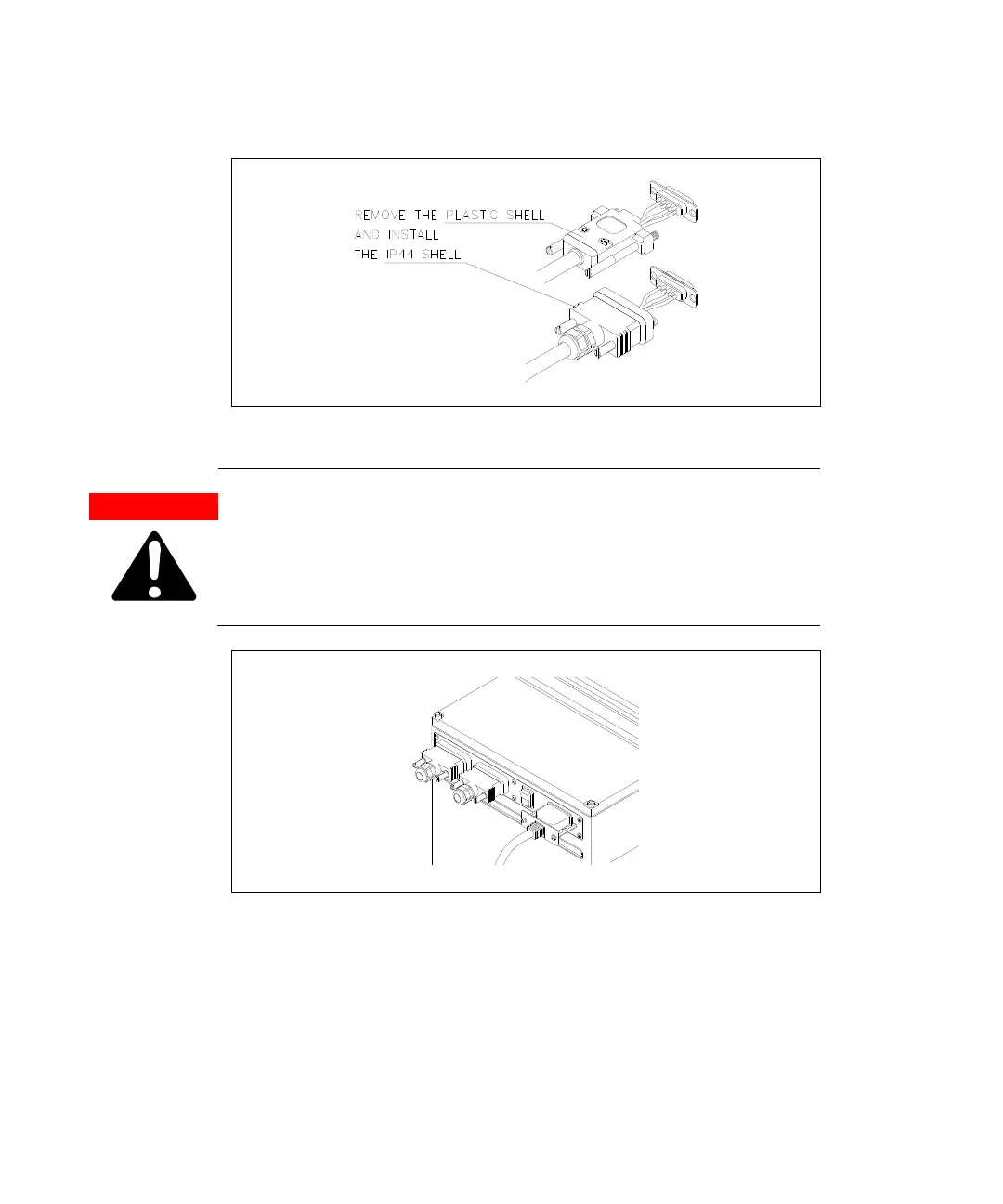

Figure 12
WARNING!
To obtain the IP44 protection level you must set up the pump electrical
connections as highlighted in the following figure.
Figure 13
