Cabling Diagrams and Remote Start/Stop B
Agilent Intuvo 9000 GC Installation 103
Multi-instrument Cabling Examples

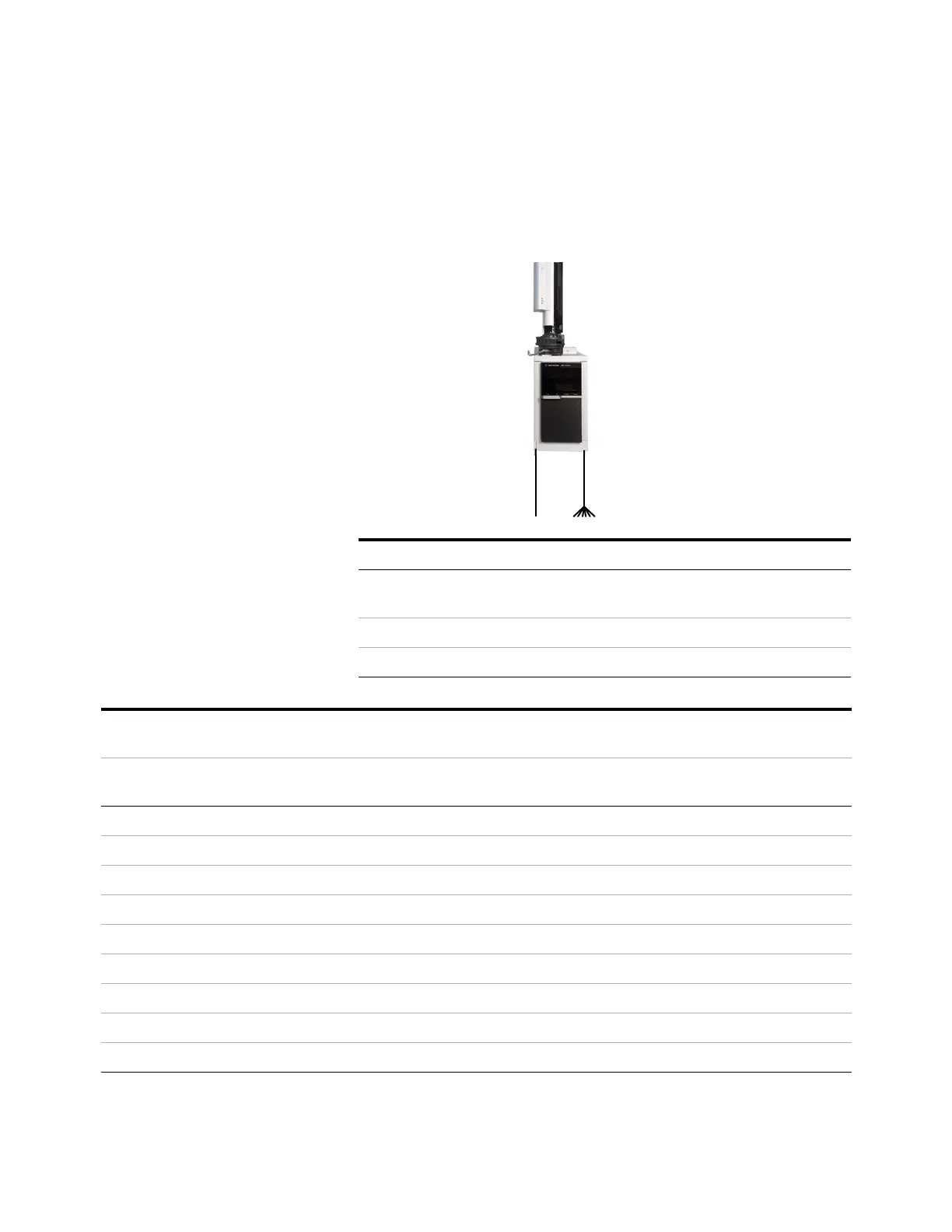

GC / ALS / Non-Agilent Data System
Number Part number and description
1 G1530-60930, General use APG remote cable, 9-pin male/spade
lug (0.5m)
2 G1530-60590, External event cable, 8-pin/spade lugs
G1580-87200, Caution label, Events cable, green in color
GC/ALS
1. APG Remote Cable,
G1530-60930
2. External event cable,
8 pin/spade lugs, G1530-60590
35900-60670 APG remote
cable spade lug identification
G1530-60590 External event
cable spade lug identification
Connector 1
9 pin (male)
Signal name Connector 2
spade lugs
Pin Color Signal
1GNDBlack1Yellow24 V Out 1
2 Prepare White 2 Black 24 V Out 2
3 Start Red 3 Red Ground
4 Shut down Green 4 White Ground
5 Reserved Brown 5 Orange Contact 1
6 Power on Blue 6 Green Contact 1
7 Ready Orange 7 Brown Contact 2
8 Stop Yellow 8 Blue Contact 2
9Start RequestViolet
