Cabling Diagrams and Remote Start/Stop B
Agilent Intuvo 9000 GC Installation 107
the 35900 A/D.

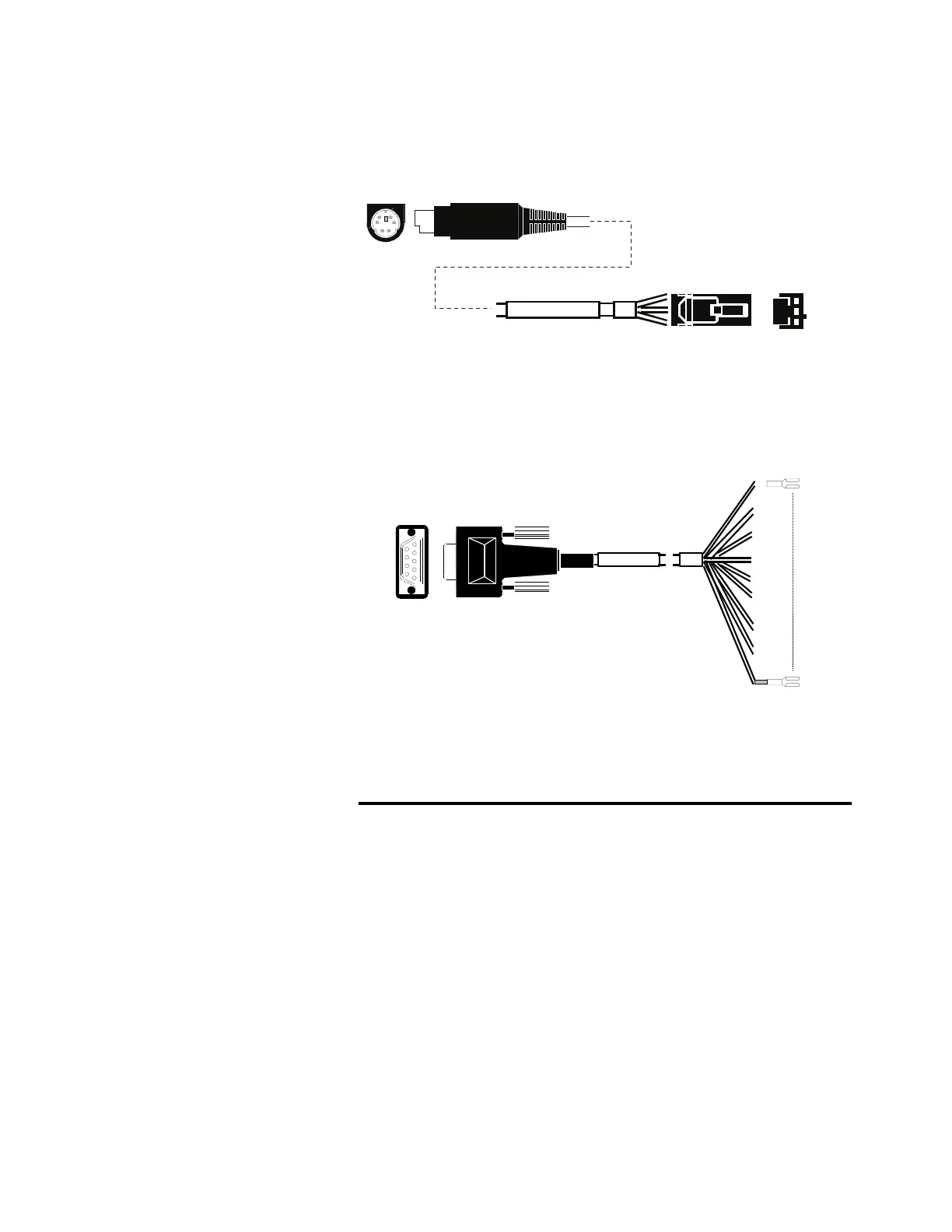

Figure 24 Analog output cable to an Agilent product
Remote start/stop cable, general use, 35900-60670
The pin assignments for the remote start/stop cable are listed in
Table 10.
Table 10 Remote start/stop cable connections
Connector 1, 9-pin male Connector 2, wire color Signal
1 Black Digital ground
2 White Prepare (low tone)
3RedStart (low tone)
4 Green Start relay (closed during
start)
5 Brown Start relay (closed during
start)
6 Blue Open circuit
7 Orange Ready (high true input)
35900-60670
1
6
5
9
Connector 1
Connector 2
