4 Using the Measurement Functions
110 Model N6705 User’s Guide

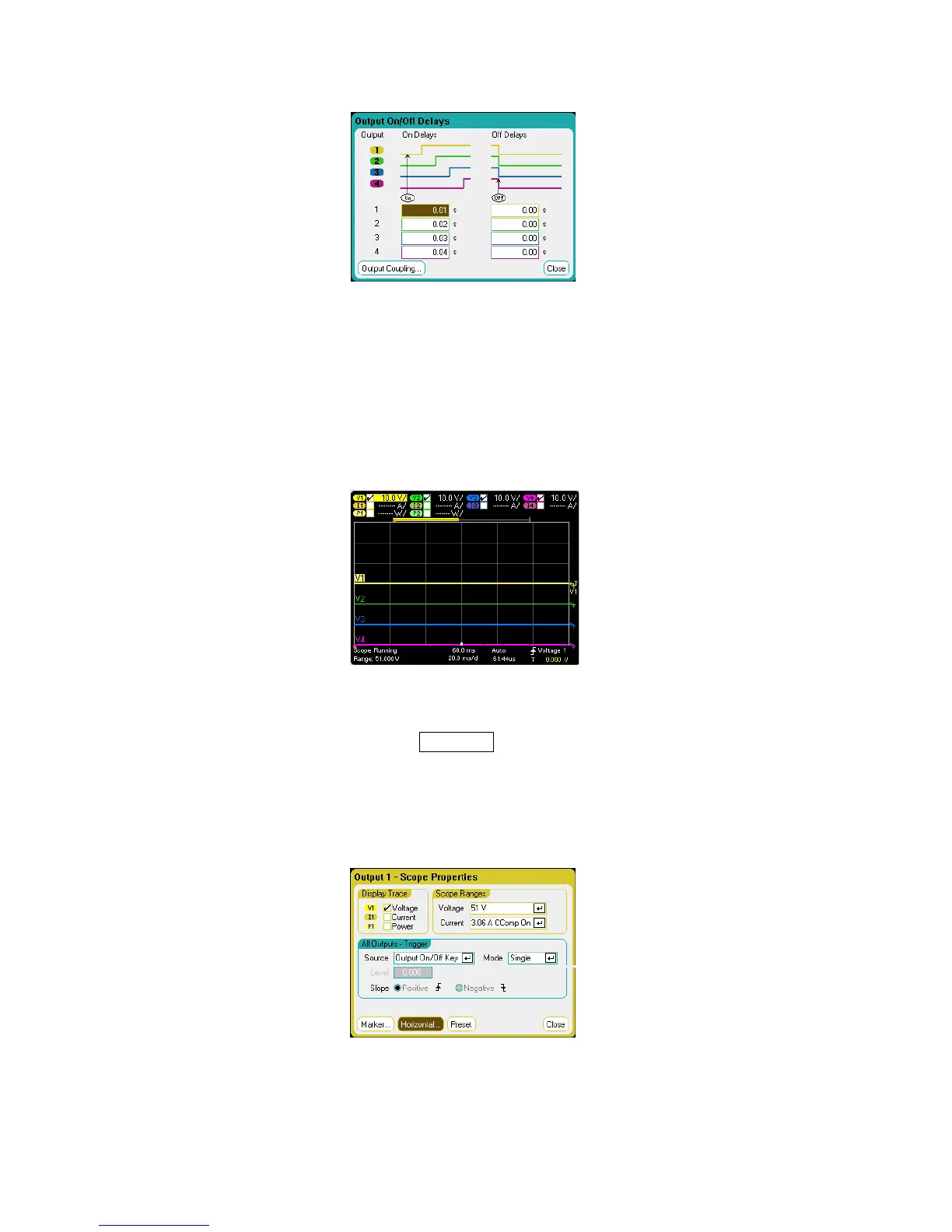

Step 3 – Configure the Scope View traces:
• Check V1 through V4
• Uncheck I1 through I4
• Use the Vertical Volts/Div. knob to set V1 through V4 to 10 V/Div.
• Use the Offset knob to move the four traces so that they are
separated by at least one space on the vertical grid.
• Use the Horizontal Time/Div. knob to set the timebase to 20 ms.
Traces are color coded according to output.
Step 4 – Configure the Scope properties:
Press the Properties key to configure the scope properties as follows:
• In the Trigger Source dropdown list, select Output ON/Off Key.
• In the Mode dropdown list, select Single.
• Select the Horizontal button and make sure that the Horizontal
Offset Reference is set to Left.
