Agilent Technologies SH-110 - Unpacking and Inspection

17
SH-110 Dry Scroll Vacuum Pump
D R A F T 4 / 1 7 / 1 2
a

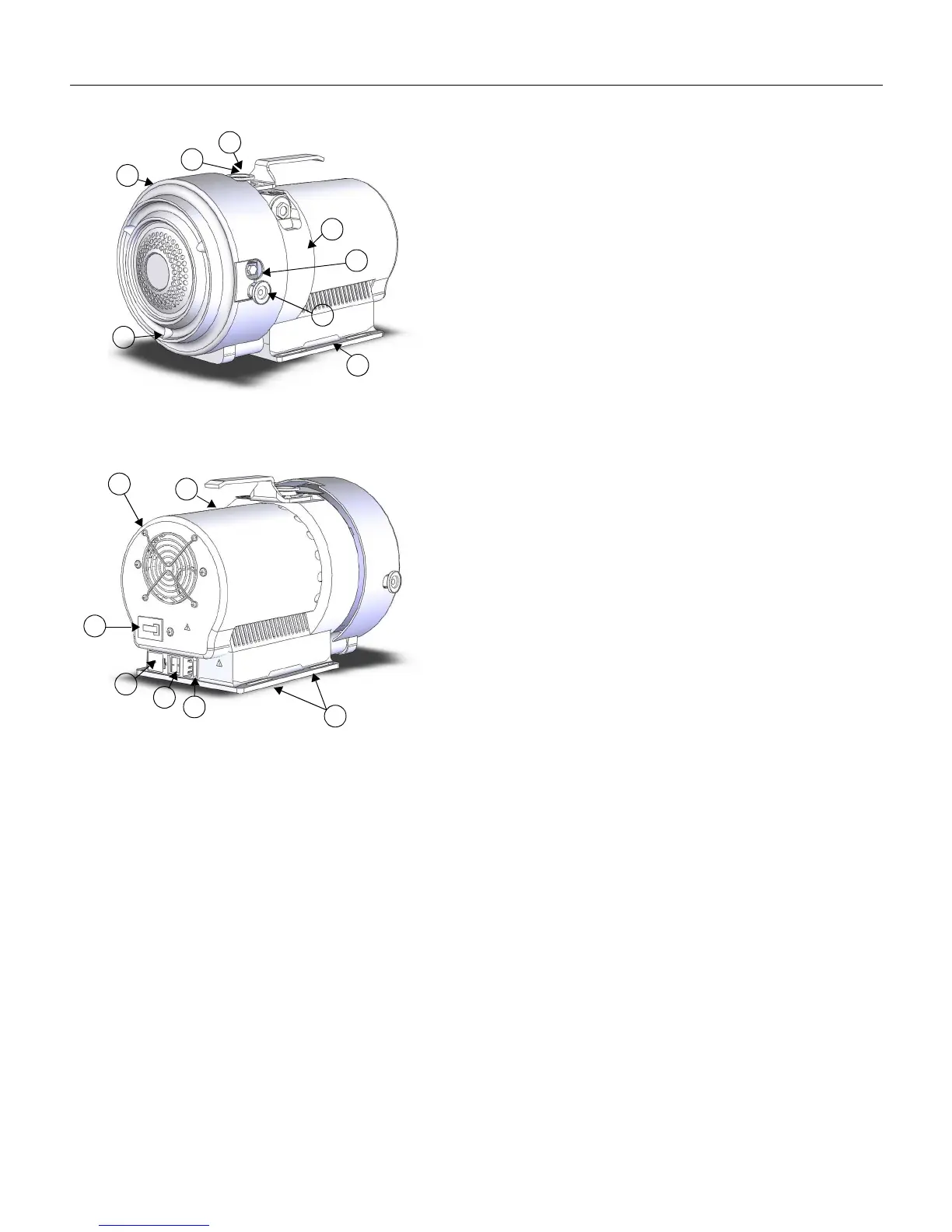

Figure 3 Outline Drawing and Principal Items
1. Front Cowling Screws; M8 (3)
2. Front Cowling
3. Inlet (NW25)
4. Inlet Screen
5. Exhaust Adapter NW16
6. Gas Ballast Port (1/8" National Pipe Thread)
7. Frame
8. Base
9. Mounting Slots; (4) for 1/4" or M6 Hardware
10. Rear Cowling
11. Rear Cowling Screws: M5 (3)
12. On/Off Switch
13. Fuse Holder and Voltage Changeover Tab
14. Power Connection (IEC-320)
15. Hour Meter
Unpacking and Inspection
1. Orient the shipping container with “This End Up”
on top.
2. Open the box and remove the upper foam block.
3. Carefully lift the SH-110 out of the box. Save the
carton and all packing materials.
4. Inspect the pump for damage. If there is shipping
damage, contact the freight carrier and your local
Agilent sales office immediately.
1
2
3
4
5
6
7
8
10
12
13
14
15
11
9
