SH-110 Dry Scroll Vacuum Pump
20
D R A F T 4 / 1 7 / 1 2

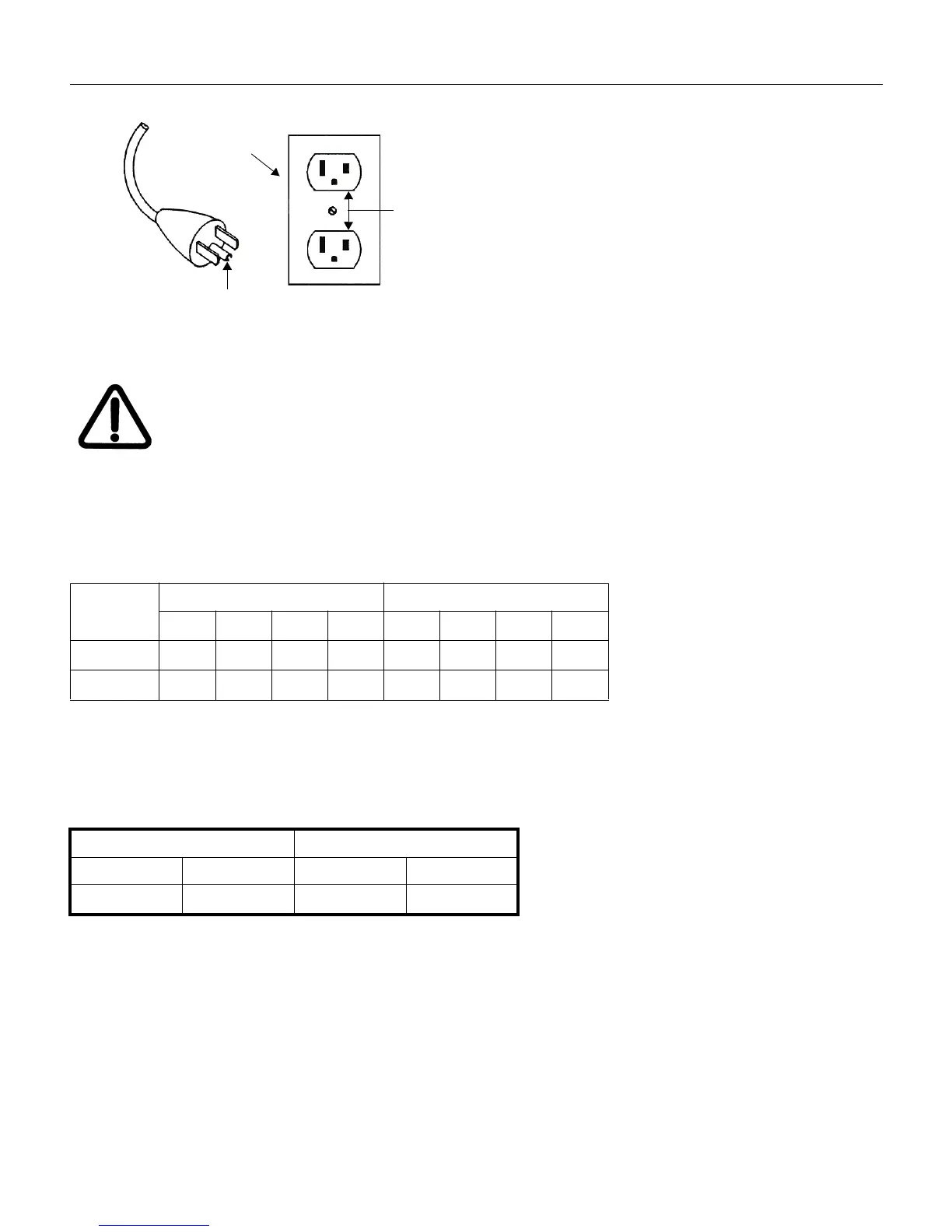

Figure 4 Grounding Plug and Outlet
Extension Cords
If you must use an extension cord with this product:
❑
For this product, Agilent recommends using only
extension cords with a minimum of 16-gage wire and
a maximum length of 25 feet (7.6 m).
❑
Use only a 3-wire extension cord that will accept the
plug.
❑
Make sure your extension cord is in good condition.
❑
Be sure the extension cord is rated high enough to
carry the current your product will draw. An under-
sized cord will cause a drop in line voltage resulting in
loss of power and overheating.
Run Currents
Typical run currents listed in Table 3 are approximately
constant from minimum to maximum intake pressure.
Start Current
Table 4 lists the typical SH-110 maximum starting current
and duration.
WARNING If the product must be reconnected
for use on a different type of electric cir-
cuit, the connector should be replaced
by qualified service personnel.
Grounding
Grounded
Outlet
Pin
Grounded
Outlet
Box
Table 3 SH-110 Typical Run Currents
Frequency Low Voltage Range High Voltage Range
90 V 100 V 115 V 126 V 180 V 200 V 230 V 252 V
60 Hz
4.4 4.2 4.0 3.7 2.2 2.1 2.0 1.9
50 Hz
4.1 4.1 4.2 4.2 2.1 2.1 2.1 2.1
Table 4 Typical SH-110 Maximum Starting Current and
Duration @ 115 V
50 Hz 60 Hz
Current (A) Time (ms) Current (A) Time (ms)
24 250 26 250
