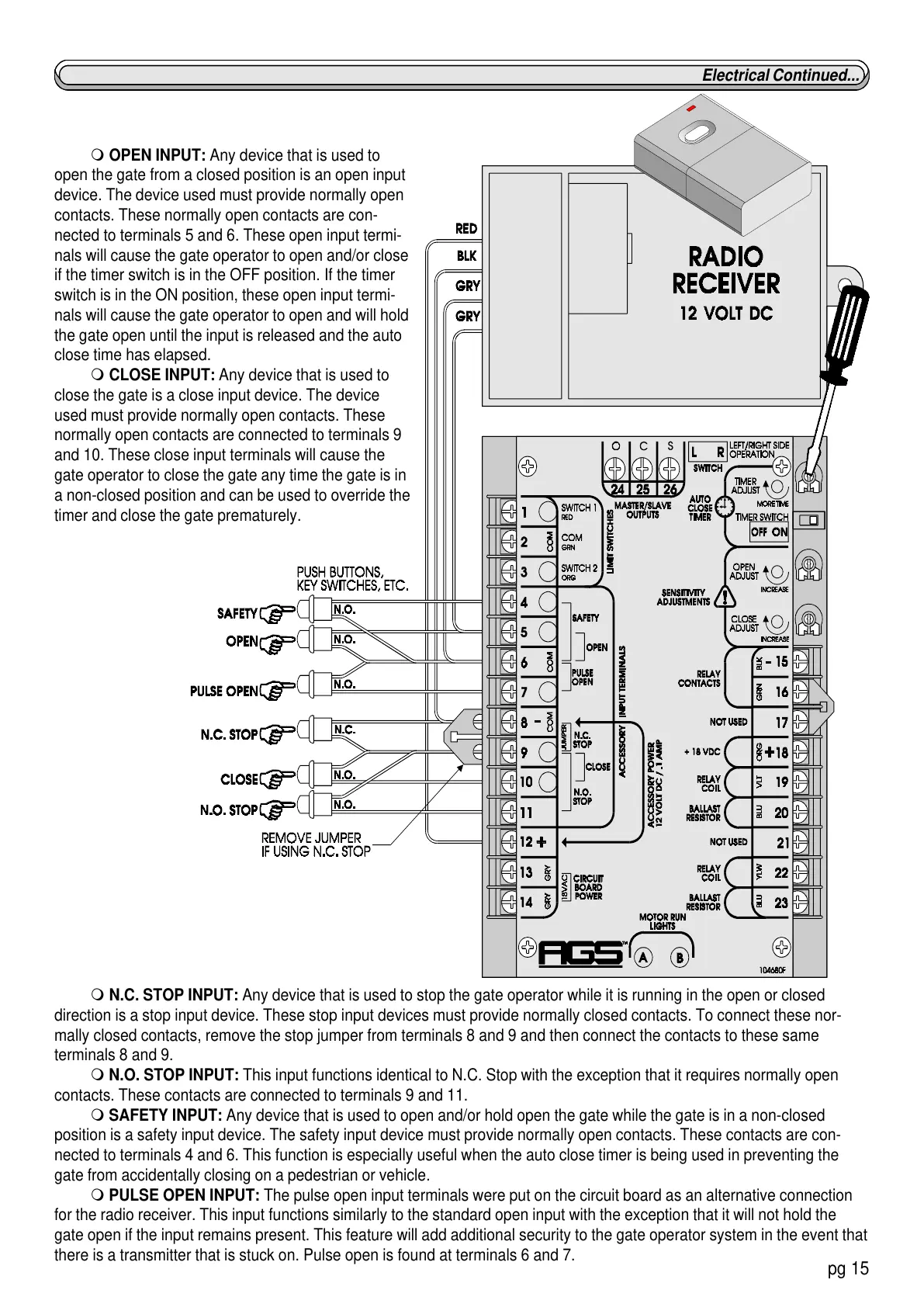

pg 15
Electrical Continued...
m OPEN INPUT: Any device that is used to
open the gate from a closed position is an open input
device. The device used must provide normally open
contacts. These normally open contacts are con-
nected to terminals 5 and 6. These open input termi-
nals will cause the gate operator to open and/or close
if the timer switch is in the OFF position. If the timer
switch is in the ON position, these open input termi-
nals will cause the gate operator to open and will hold
the gate open until the input is released and the auto
close time has elapsed.
m CLOSE INPUT: Any device that is used to
close the gate is a close input device. The device
used must provide normally open contacts. These
normally open contacts are connected to terminals 9
and 10. These close input terminals will cause the
gate operator to close the gate any time the gate is in
a non-closed position and can be used to override the
timer and close the gate prematurely.
m N.C. STOP INPUT: Any device that is used to stop the gate operator while it is running in the open or closed
direction is a stop input device. These stop input devices must provide normally closed contacts. To connect these nor-
mally closed contacts, remove the stop jumper from terminals 8 and 9 and then connect the contacts to these same
terminals 8 and 9.
m N.O. STOP INPUT: This input functions identical to N.C. Stop with the exception that it requires normally open
contacts. These contacts are connected to terminals 9 and 11.
m SAFETY INPUT: Any device that is used to open and/or hold open the gate while the gate is in a non-closed
position is a safety input device. The safety input device must provide normally open contacts. These contacts are con-
nected to terminals 4 and 6. This function is especially useful when the auto close timer is being used in preventing the
gate from accidentally closing on a pedestrian or vehicle.
m PULSE OPEN INPUT: The pulse open input terminals were put on the circuit board as an alternative connection
for the radio receiver. This input functions similarly to the standard open input with the exception that it will not hold the
gate open if the input remains present. This feature will add additional security to the gate operator system in the event that
there is a transmitter that is stuck on. Pulse open is found at terminals 6 and 7.
