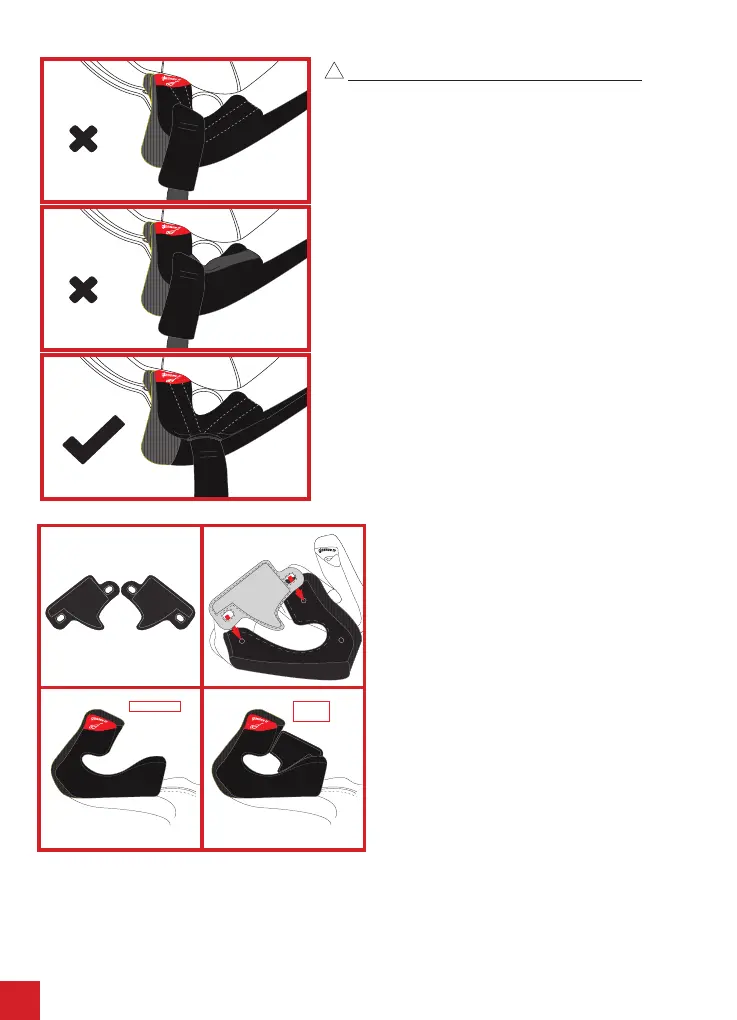

3.2) Removing/Fitting ear cushion
In the manual bag there is a couple of ear cuchions to
be installed on the cheek pads (1).
The ear cushion is installed on the cheek pad cen-
tering its holes with the buttons on the cheek pad as
shown in the gures (2).
Then apply the cheek pad inside the helmet as de-
scribed above.
After mounting the ear cushion, it is like in above g-
ure (4).
Proceed in the same way for the other side.
For removal, disengage the cheek pad from the but-
tons, remove the ear cushions and assemble again the
cheek pads.
Make sure that the cheek pads are properly fastened
to the helmet.
1
3
2
4
With
Without
Important for the safety of your helmet
Before attaching the cheek-pads to the skullcap,
pass both chinstrap tapes through the slots pro-
vided in the cheek-pad (see photo “CORRECT”).
An incorrect assembly (photo “WRONG 1” and
“WRONG 2”) will reduce the rotational stability of
the helmet and may increase the risk of the hel-
met coming off in an accident.
VVVVVVVV
VVVVVVVV
VVVVVVVV
VVVVVVVV
