19
5) ACCESSORIES
An inner sun visor is available for the K-5. This visor
can be operated from the outside, retracts when not
in use and can be easily removed for cleaning or
replacement without need of any special tools.

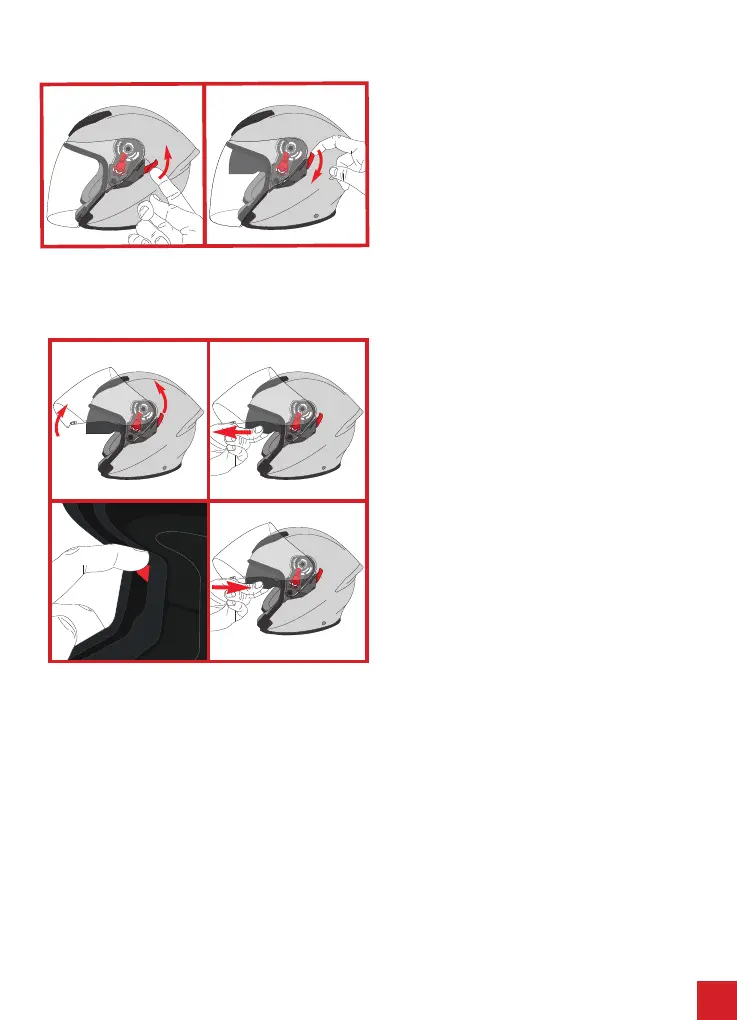

5.1) Operating the sun visor
To raise or lower the sun visor, simply use the lever
on the left side of the helmet near the main visor
mechanism.
To lower the sun visor, push the lever up (1). To retract
the sun visor, push the lever down (2).
5.2) Removing/tting the sun visor
The non-scratch polycarbonate sun visor is tted with
catches which mesh with internal teeth alongside the
cheek pads.
We recommend that you carry out the following
tasks with the helmet resting on a level surface.
To remove the sun visor, lower it fully then raise
the visor to the fully open position (1). Start on one side
of the helmet by pressing the sun visor gently inwards
then release the catch (2). Repeat on the other side
and remove the sun visor.
1
DOWN
UP
2
DOWN
UP
1 2
DOWN
UP
DOWN
UP
DOWN
UP
3 4
NB: When you have removed one side, do not pull or force the sun visor in any direction other than the
horizontal plane of the guide to remove the other side.
To t the sun visor, place the operation lever in the lower position and make sure that the lateral guides are in the
lowered position.
N.B. The left guide is operated with the lever on the outside of the helmet. The right guide can be lowered
manually (3).
Start on one side of the helmet with the visor fully open, insert the sun visor catch into place in the lateral position
and make sure that it is sitting on the lateral guides (4). Repeat on the other side of the helmet. Make sure that the
sun visor is working properly.
