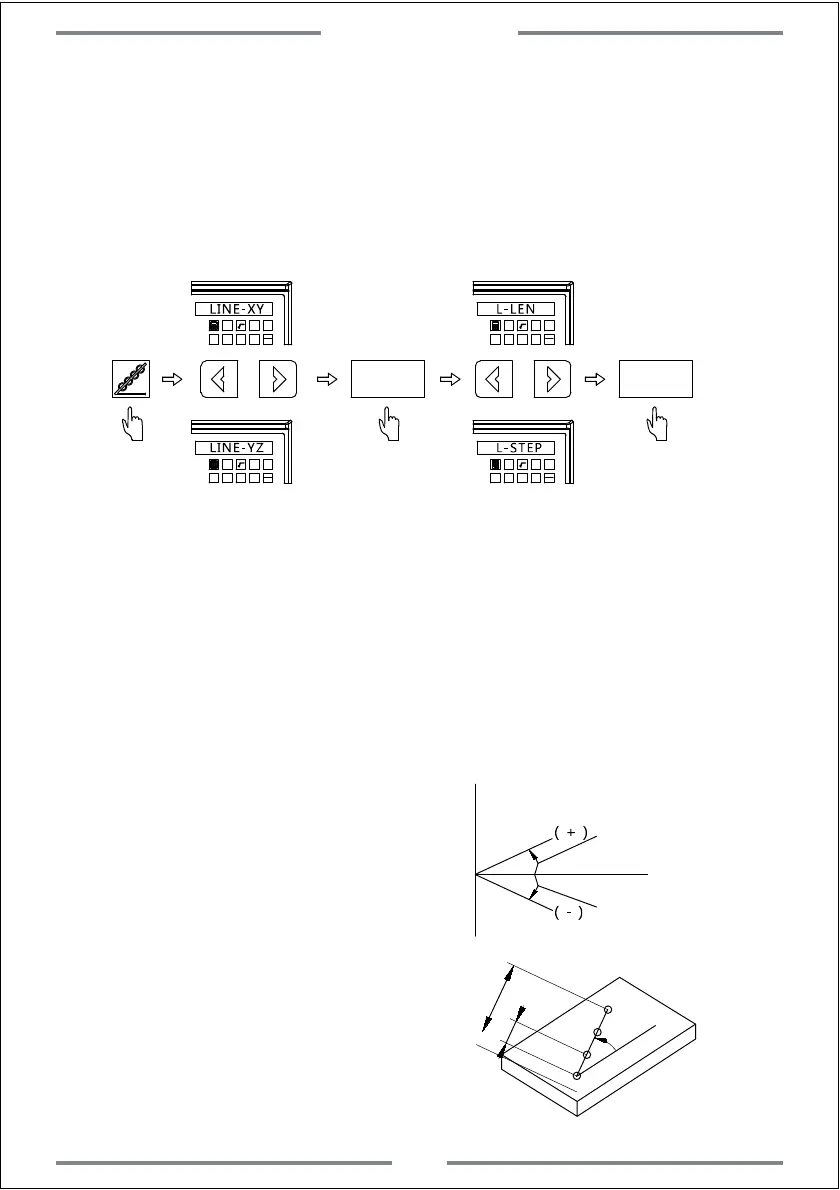

4.1 PLD Function
(Applies to 2&3axis milling machine and 3 axis EDM machine)
There are two ways for PLD function.
1. Length way(L-LEN ,the distance between the starting hole center to
end hole center)
2. Step way(L-STEP,the distance between two holes center)
1 32
－
＋
CLS Arc
sin
TOOL
LINE-XY
ENT ENT
1 32
－
＋
CLS Arc
sin
TOOL
1 32
－
＋
CLS Arc
sin
TOOL
L-LEN
1 32
－
＋
CLS Arc
sin
TOOL
L-STEPLINE-YZ
Select the plane Length way
Step way
Input Parameter
L-LEN: LENGTH--Overall length of oblique line
(Length from starting hole to end hole,Figure B)
ANGLE--Angle of oblique line (Figure A)
NO HOLE--Number of hole (Figure B)
L-STEP: STEP--Length between two adjacent hole (Figure B)
ANGLE--Angle of oblique line (Figure A)
NO HOLE--Number of hole (Figure B)
Example:
Figure A:
The angle indicates the position direction
of the oblique line on coordinate
plane.The anti-clockwise direction is the
positive direction.The clockwise direction
is the negative direction.
Figure B:
Length of oblique line:60mm
Angle of oblique line:30°
Length between two adjacent hole:20mm
Number of hole:4
(Figure A)
20
60
30°
Select the plane
Angle A:30°
（+）
Positive direction(+)
Anti-clockwise direction
Negative direction(-)
Clockwise direction
（-）
Angle B:-30°
(Figure B)
Special Function
21
