aikron A20-3V - 200 Groups of SDM Auxiliary Coordinate

3.12 200 Groups of SDM Auxiliary coordinate
DRO provides ABS and INC coordinate.But sometimes it is not enough for
daily machining.This DRO provides 200 groups of SDM auxiliary
coordinate to compensate the shortage of ABS and INC function.But SDM
is not just a simple additional INC coordinate.The below is the difference
between ABS/INC and SDM.
1. INC is completely independent.No matter how zero point in ABS
changed,the zero point in INC will not change.But the zero point of SDM is
basing on ABS.When the zero point in ABS changed,all coordinate in SDM
will change accordingly.

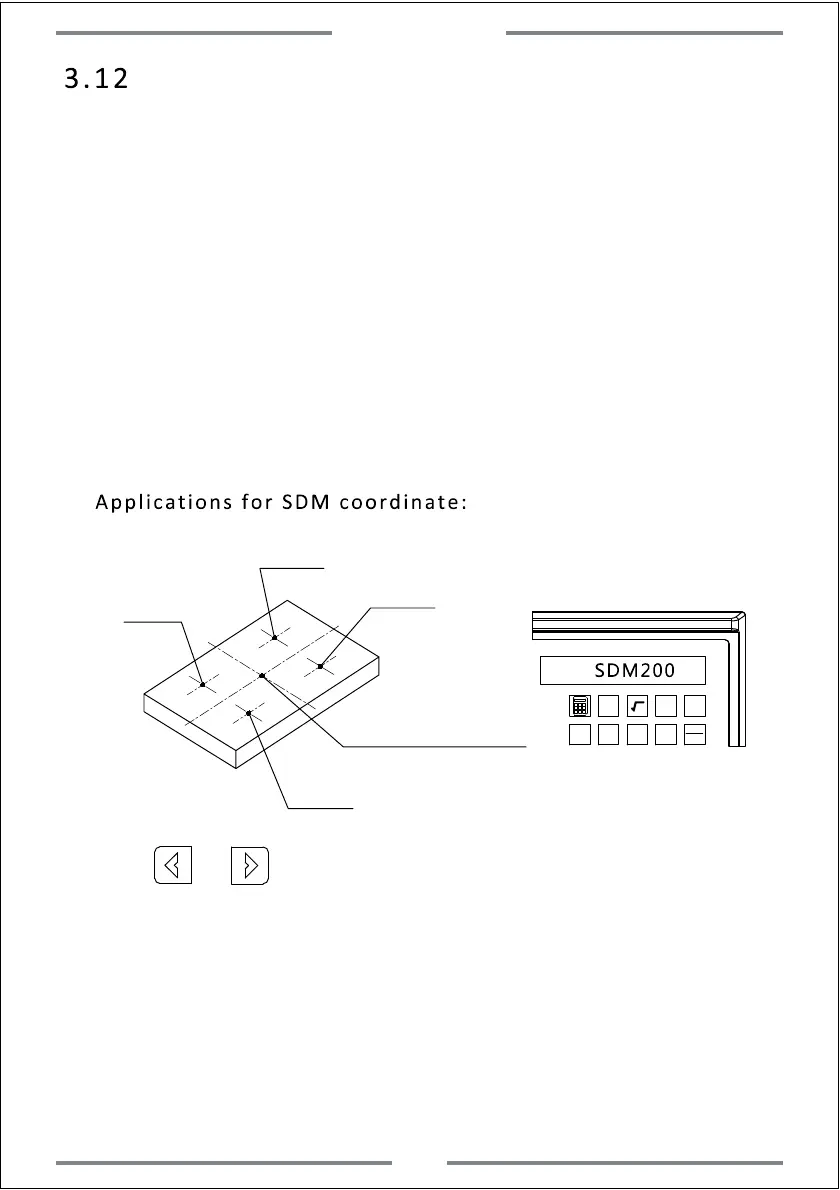

Applications for SDM coordinate:
Zero point of work-piece
under ABS mode.
SDM1
SDM2
SDM3
SDM4
1
32
－
＋
CLS
Arc
sin
TOOL
SDM200
Press or to switch SDM auxiliary coordinate with no need to
return to ABS model.
SDM application during medium or small batch machining
SDM function could memorize a batch of working point.User could input
these working points when machining the first work-piece.Then adjust the
zero point in ABS mode for machining the following work-pieces.The SDM
auxiliary coordinate is basing the zero point in ABS mode.
2. The distance between SDM and ABS coordinate could be input directly.
