- 11 -

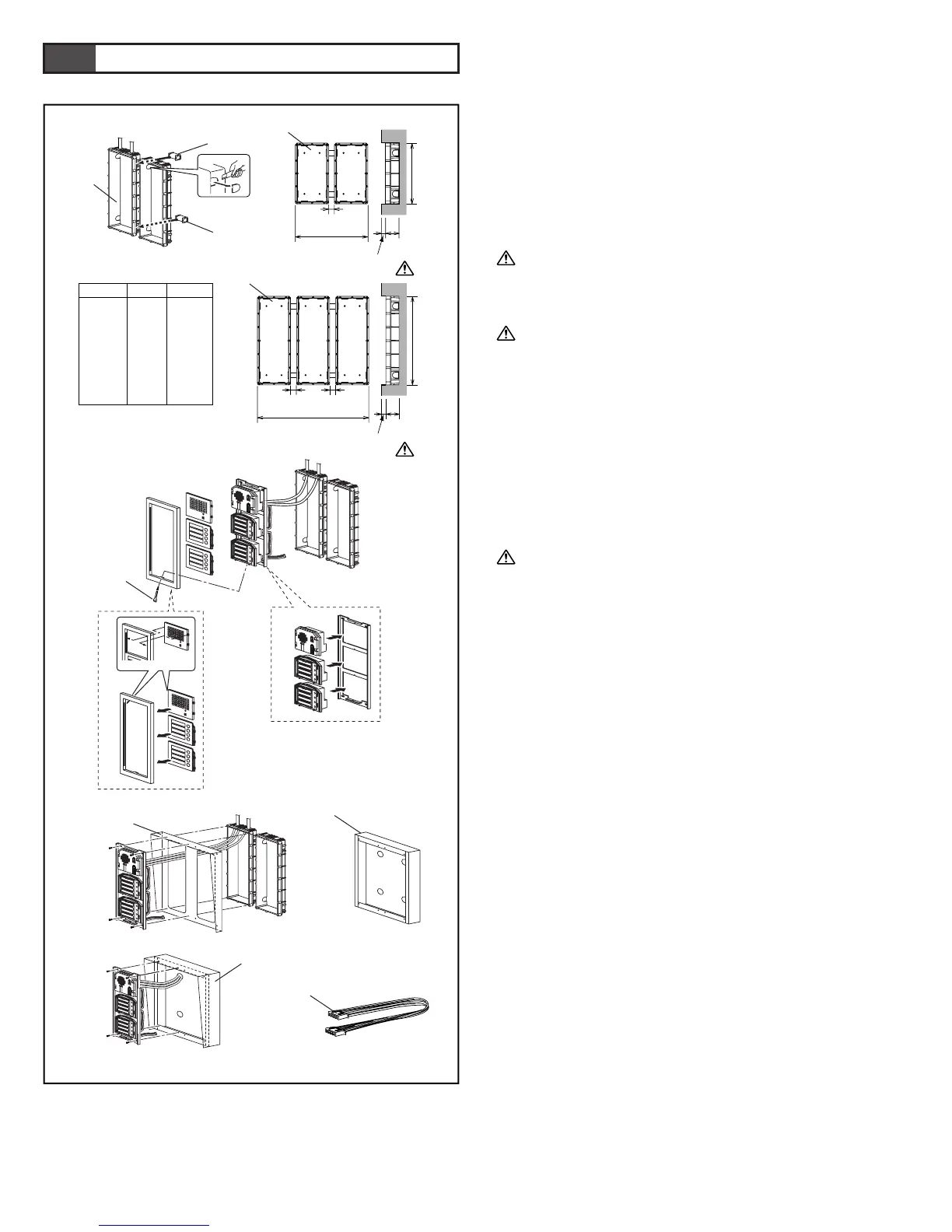

Mounting the Entrance Station (1)
[1] Back box
[2] Joint pipe
[3] Back box assembly dimensions
[4] Special screwdriver (enclosed with GH-BC)
1. Mounting the back box
• Make a hole for the cable.
• Use the joint pipe to assemble the back box.
• Make sure the back box is mounted level.
• Mount the camera and GH-NS module at eye-level for the
average height of an adult.
Do not mount the back box on a surface that is recessed by 15
mm (1/2") or more from the external surface of the wall.
2. Set up the modules.
• For information on what modules can be used, see 2-1 and 2-2.
Up to 6 GH-SW modules can be used. If you would like to
connect 7 modules or more, please contact Aiphone.
3. Mount each module panel to the front frame.
• Mount the panels from behind the front frame.
•
Insert the notch into the slots on both sides and slide it downward.
4. Mount each module to the mounting bracket.
•
Set the modules in the mounting bracket until they click in place.
5. Options
a. Rain hood GF-H
b. Surface-mount box GF-202B
c. Hooded surface-mount box GF-HB
d. 80 cm (32") connection cable GF-C
Peel off protection film on GH-NS display.
3-1
3
MOUNTING
1
2
3
4
5
a
b
295mm
(11-5/8")
W
44mm
(1-3/4")
25mm
(1")
25mm
(1")
25mm
(1")
W
200mm
(7-7/8")
44mm
(1-3/4")
15mm
(9/16")
x 1
x 2
x 3
x 4
x 5
x 6
x 7
x 8
x 9
110
245
380
515
650
785
920
1055
1190
W (mm)
4-5/16"
9-5/8"
15"
20-1/4"
25-9/16"
30-7/8"
36-1/4"
41-9/16"
46-7/8"
W (inch)GF-2B/3B
15mm
(9/16")
[4]
[2]
[3]
[1]
[2]
c
d
[1]
[1]
