Room sub control unit
(
IS-RCU
)
■

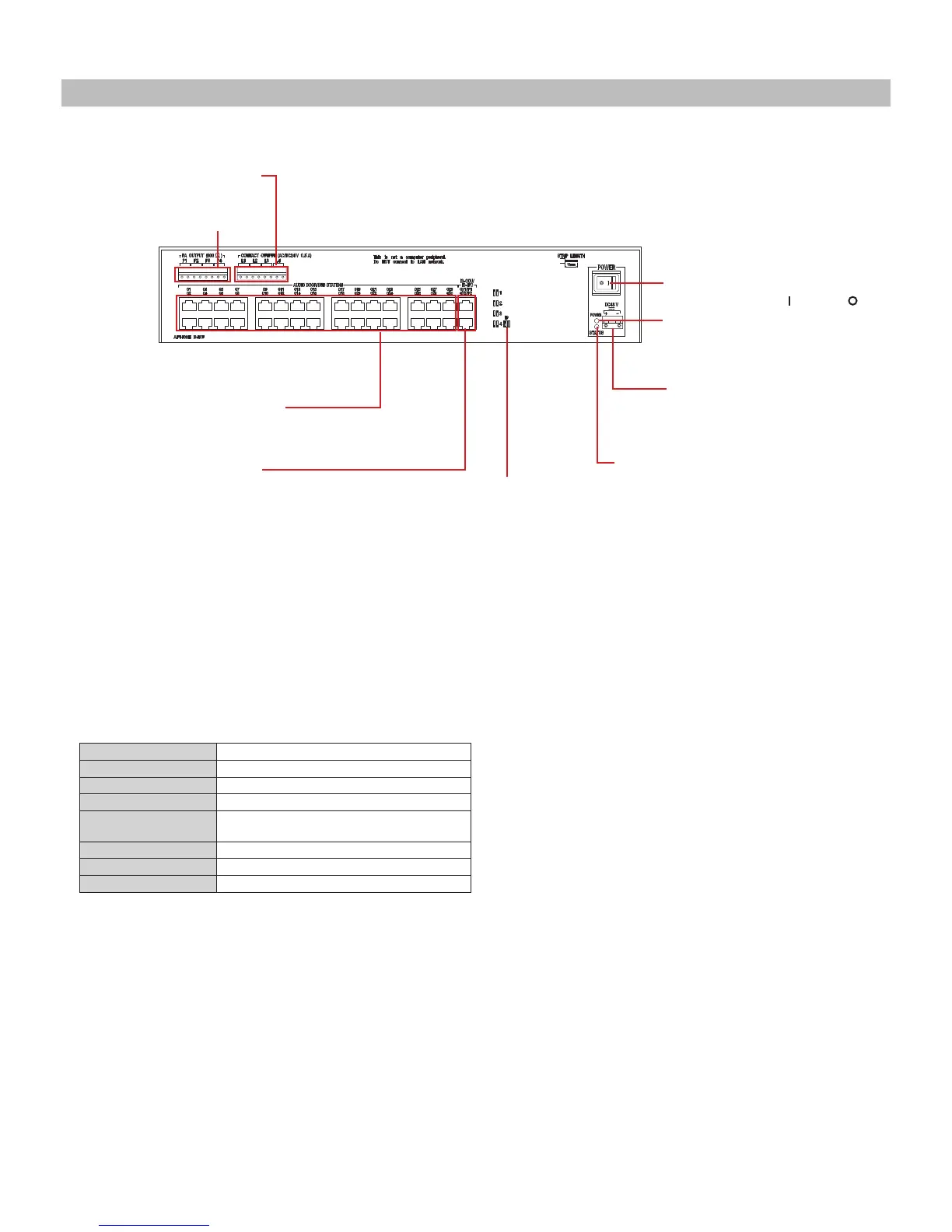

Part names
NOTE:
The illustration of the unit may differ from the actual one.
■
Specifi cations
Room sub control unit (IS-RCU)
Power source 48V DC (supplied from the power supply unit)
Current consumption Max. 1.8A
Ambient temperature 0 - 40°C (+32°F - +104°F)
Talk channels Local system: 2 talk channels, 1 chime
Audio door station(s)
Room sub station(s)
Max. 30
Mounting Rack-mount (19-inch, 2U rack) or wall-mount
Material Steel plate
Color Black
CONTACT OUTPUT terminals
PA (Paging) OUTPUT terminals
AUDIO DOOR/SUB STATION ports
Central control unit (IS-CCU) /
IP control unit (IS-IPC) ports
ID setting switch
(→P.15)
POWER terminals
POWER switch
Turns the power ON (
) or OFF ( ).
POWER LED (green)
Lights up when the power is ON.
STATUS LED (green)
Blinks when this unit is initialized or an error
*
1
occurs.
The LED will light up when this unit returns to
the normal state.
*
1
: Communication error in a unit connected
to this unit, or between this unit and a unit
connected to it, etc.
