9
UNIT DETAILS
Control unit common information
The information on this page is common to Central control unit (IS-CCU), Add-on control unit (IS-SCU), Room sub control unit (IS-
*
RCU) and IP control unit (IS-IPC).
■
Accessories
・
Mounting bracket × 2
・
Installation manual (a booklet)
*1
× 1
・
Screw (for wall-mounting) × 4
・
CD-ROM (Installation manual, Setting manual and Operation manual)
*2
× 1
・
Screw (for rack-mounting) × 4
・
China RoHS paper × 1
・
Screw (for fi xing mounting bracket) × 6
■

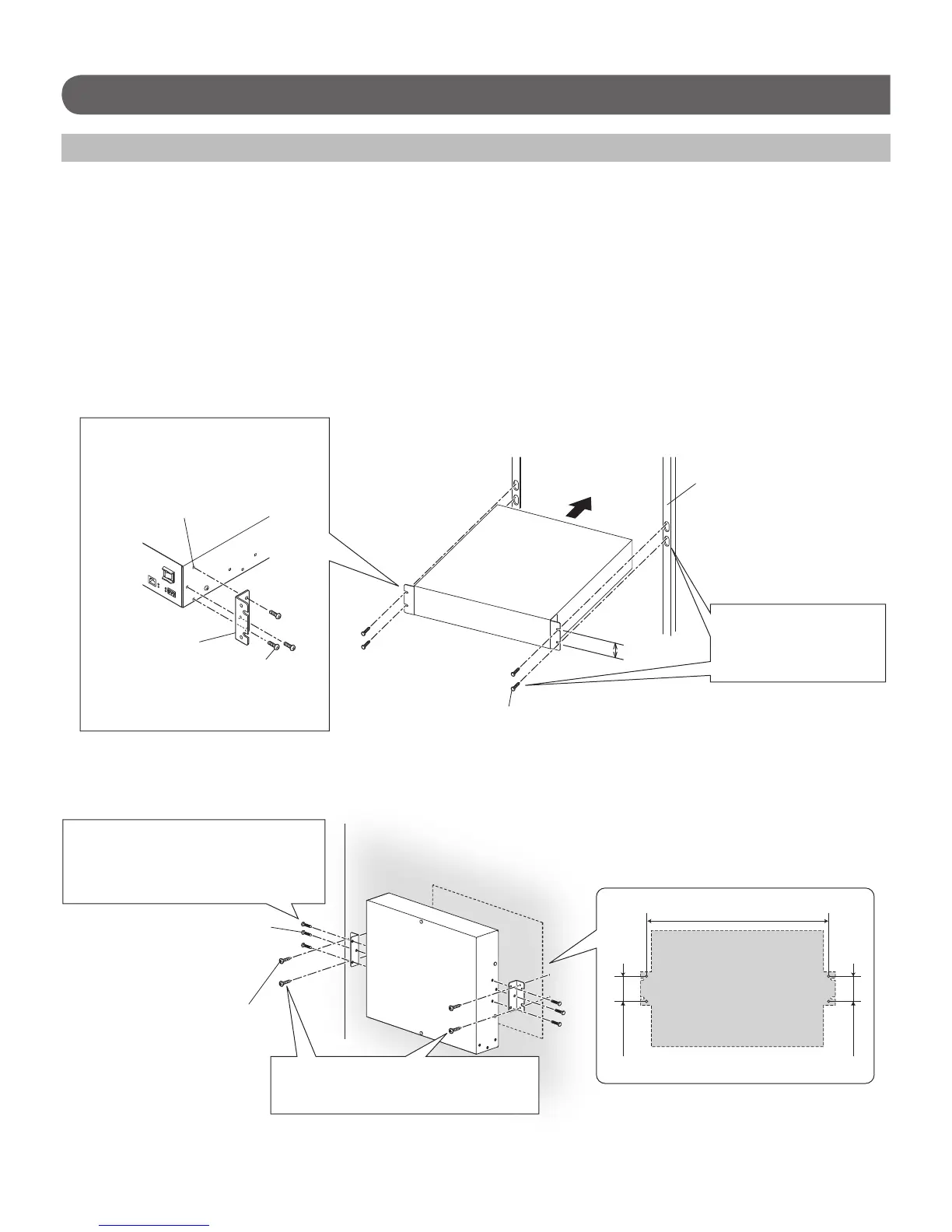

Mounting
<When mounting into the 19-inch rack>
44.5 mm
(1-3/4")
<When mounting on a wall>
Screw (for rack-mounting) x 4 (included)
Screw (for wall-mounting)
x 4 (included)
19-inch rack (2U)
Screw (for fi xing mounting
bracket) x 6 (included)
NOTE:
When mounting on a wall, mount the terminal side
down.
Mount the unit on the wall with
2
the screws for wall-mounting.
Attach the mounting brackets
1
to the unit.
Set the unit in the
2
19-inch rack and fi x
it with screws.
Screw hole x 3
Mounting bracket x 2 (included)
Screw (for fi xing mounting bracket) x 6 (included)
NOTE:
Do not use screws other than the included ones.
NOTE:
If the control unit is installed in a closed rack or
multiunit rack assembly, the temperature around the unit
may become high when operating. Install the control
unit in an environment whose temperature will not rise
beyond the maximum permissible ambient temperature
of the control unit.
Attach the mounting brackets to
1
the unit.
NOTE:
Do not use screws other than the included ones.
*1: IS-CCU only
*2: IS-CCU and IS-IPC only
450 mm (17-3/4")
65 mm (2-9/16")
65 mm (2-9/16")
