IP control unit
(
IS-IPC
)
IP
：
This unit is needed to connect a local system to a standard (IP) system.
■

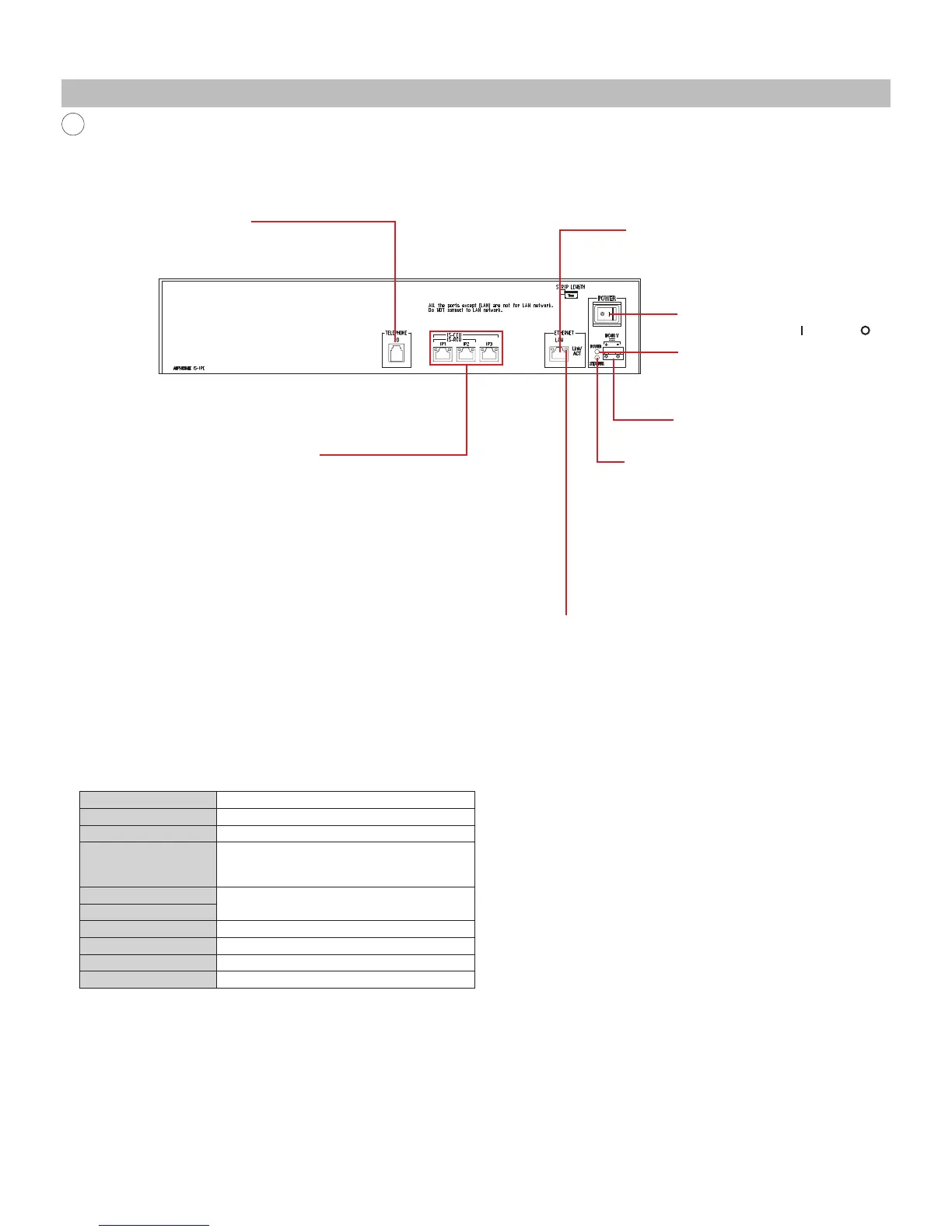

Part names
NOTE:
The illustration of the unit may differ from the actual one.
■
Specifi cations
IP control unit (IS-IPC)
Power source 48V DC (supplied from the power supply unit)
Current consumption Max. 105mA
Ambient temperature 0 - 40°C (+32°F - +104°F)
Talk channels
・
Video
channels, other channels
2 talk & 2 constrained video channels,
1 chime, and 1 telephone (North America
only)
Central control unit
Max. 1
Room sub control unit
LAN Ethernet (10 BASE-T, 100 BASE-TX)
Mounting Rack-mount (19-inch, 2U rack) or wall-mount
Material Steel plate
Color Black
POWER switch
Turns the power ON (
) or OFF ( ).
POWER terminals
LAN port
CO port (Telephone)
Link/ACT LED (green)
Operates when this unit is connected to LAN.
POWER LED (green)
Lights up when the power is ON.
Central control unit (IS-CCU) /
Room sub control unit (IS-RCU) ports
STATUS LED (green)
Blinks when this unit is initialized or an error
*
1
occurs.
The LED will light up when this unit returns to
the normal state.
*
1
: Communication error in a unit connected
to this unit, or between this unit and a unit
connected to it, etc.
