Aiphone IX-DVF Web Setting Manual

103
Configuring the Station

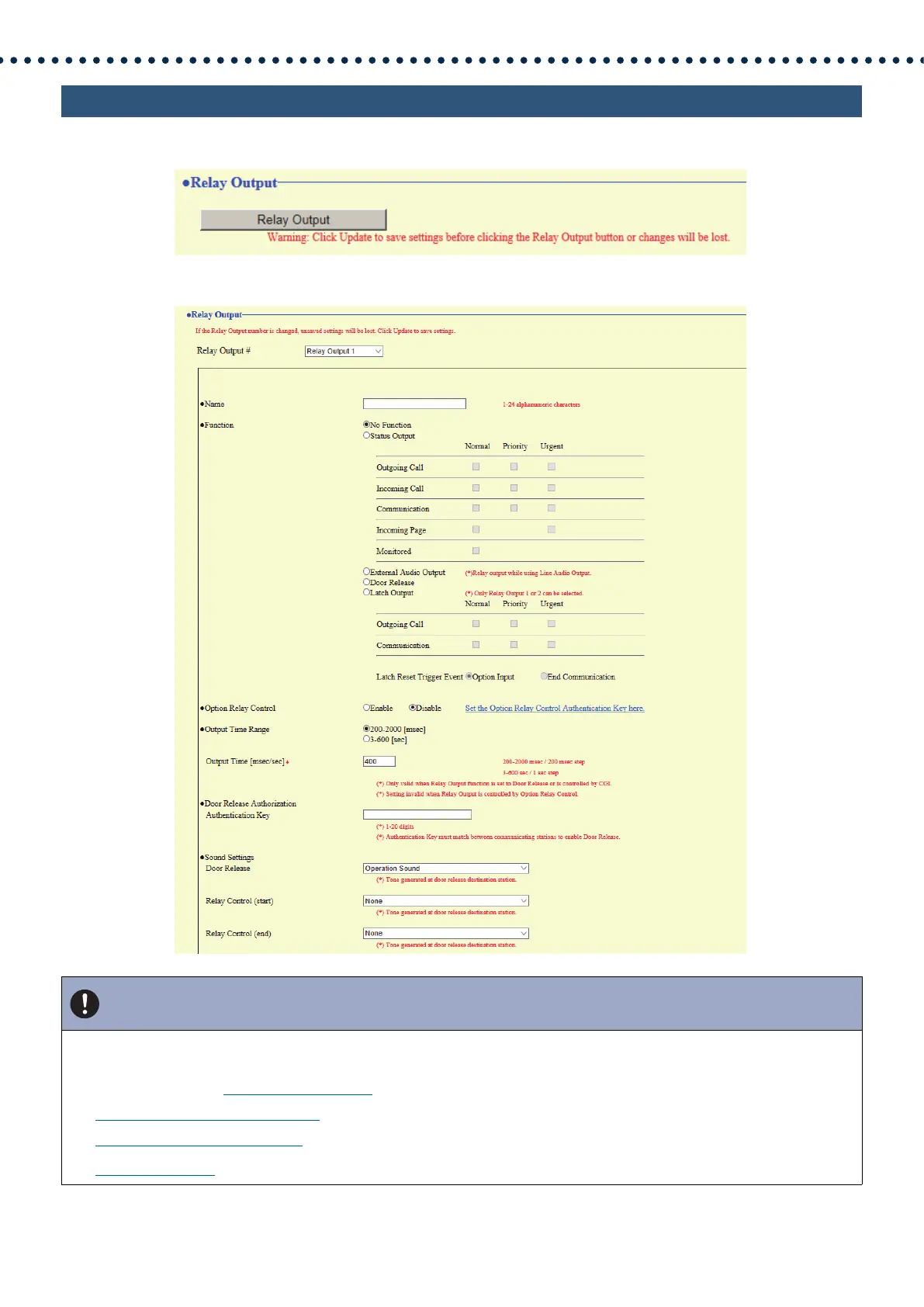

5.2 Relay Output
Click [Relay Output].
Or, click "Relay Output" in the Setting menu to switch to the Relay Output window.
Important
• The four relay output methods are shown below. Redundant configuration is possible for each relay output. If multiple
commands occur during a single relay output, the latest command will take priority.
– Function selected in
“Function (→page 104)”
–
“Option Relay Control (→page 105)”
–
“Schedule Settings (→page 106)”
–
“CGI (→page 120)”

Aiphone IX-DVF Specifications

General

Resolution	720p
Video Compression	H.264
Ingress Protection	IP65
Vandal Resistance	IK08
Operating Voltage	48 VDC (PoE)
Power Source	PoE (IEEE 802.3af)
Operating Temperature	-40° to 140°F (-40° to 60°C)
Communication	IP
Call Tone	Chime
