Aiphone IX-DVF Web Setting Manual

39
Startup and configuration

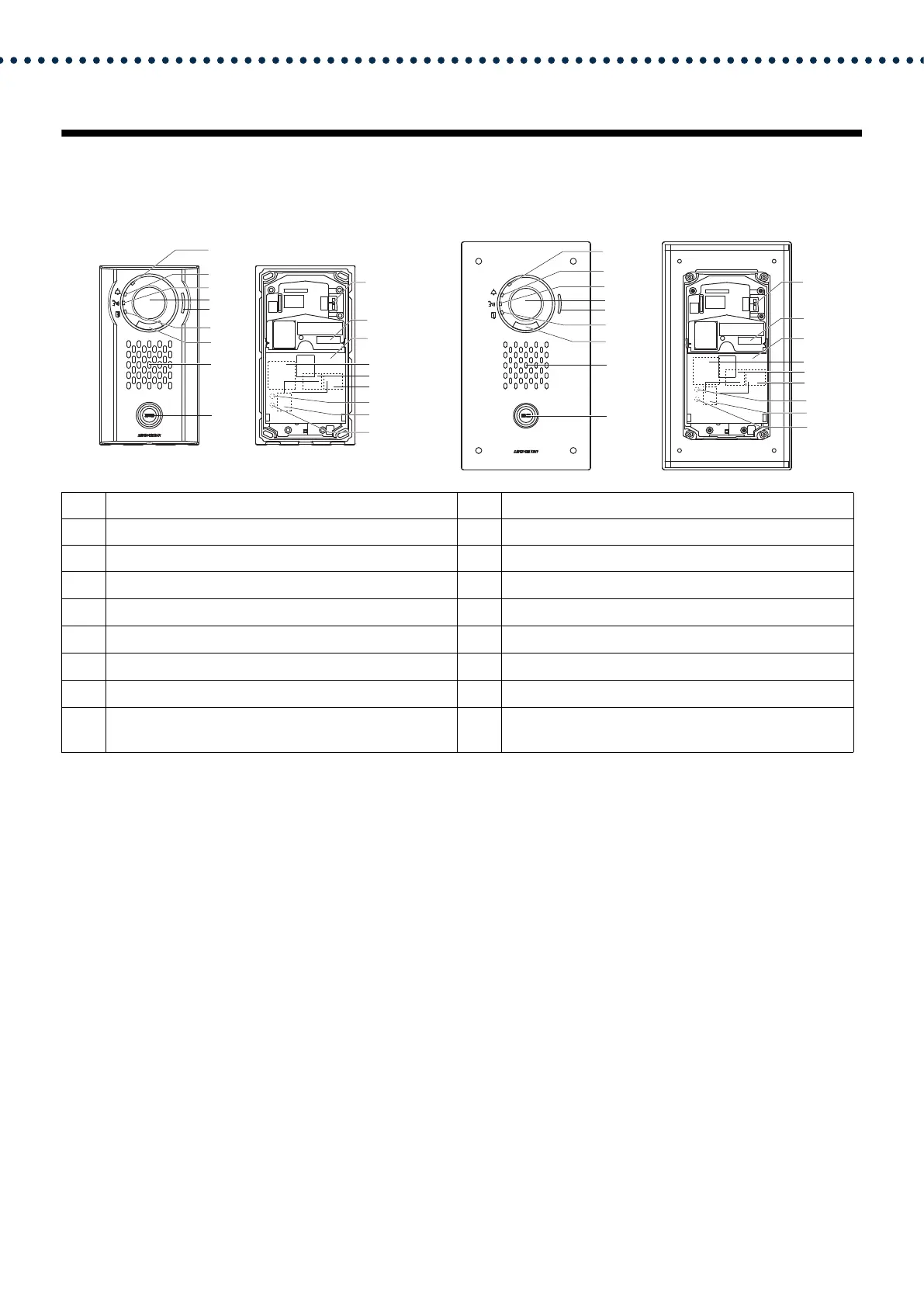

2. Part Names
*1 Found by removing terminal cover.
*2 Press and hold the reset button for at least 1 second (less than 5 seconds), then release to restart (reset) the station.
1 Status indicator (orange/blue) 10 Camera angle adjustment lever
2 Call indicator (green) 11 MAC address
3 Communication indicator (orange) 12 Terminal cover
4 Camera 13
Option connector terminal
*1
5 Microphone 14
LAN terminal (PoE/PSE)
*1
6 Door release indicator (green) 15
LAN terminal (PoE/PD)
*1
7 LED for night illumination 16
Reset button
*1*2
8 Speaker 17
microSD card slot
*1
9 Call button
Surrounding area is lit up with blue light
18
microSD card release button
*1
6
7
1
2
3
4
5
8
9
10
11
12
13
14
15
16
17
18
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Front
Back
IX-DV
Front
Back
IX-DVF

Aiphone IX-DVF Specifications

General

Resolution	720p
Video Compression	H.264
Ingress Protection	IP65
Vandal Resistance	IK08
Operating Voltage	48 VDC (PoE)
Power Source	PoE (IEEE 802.3af)
Operating Temperature	-40° to 140°F (-40° to 60°C)
Communication	IP
Call Tone	Chime
