Aiphone IX SERIES - Page 15

- 14 -

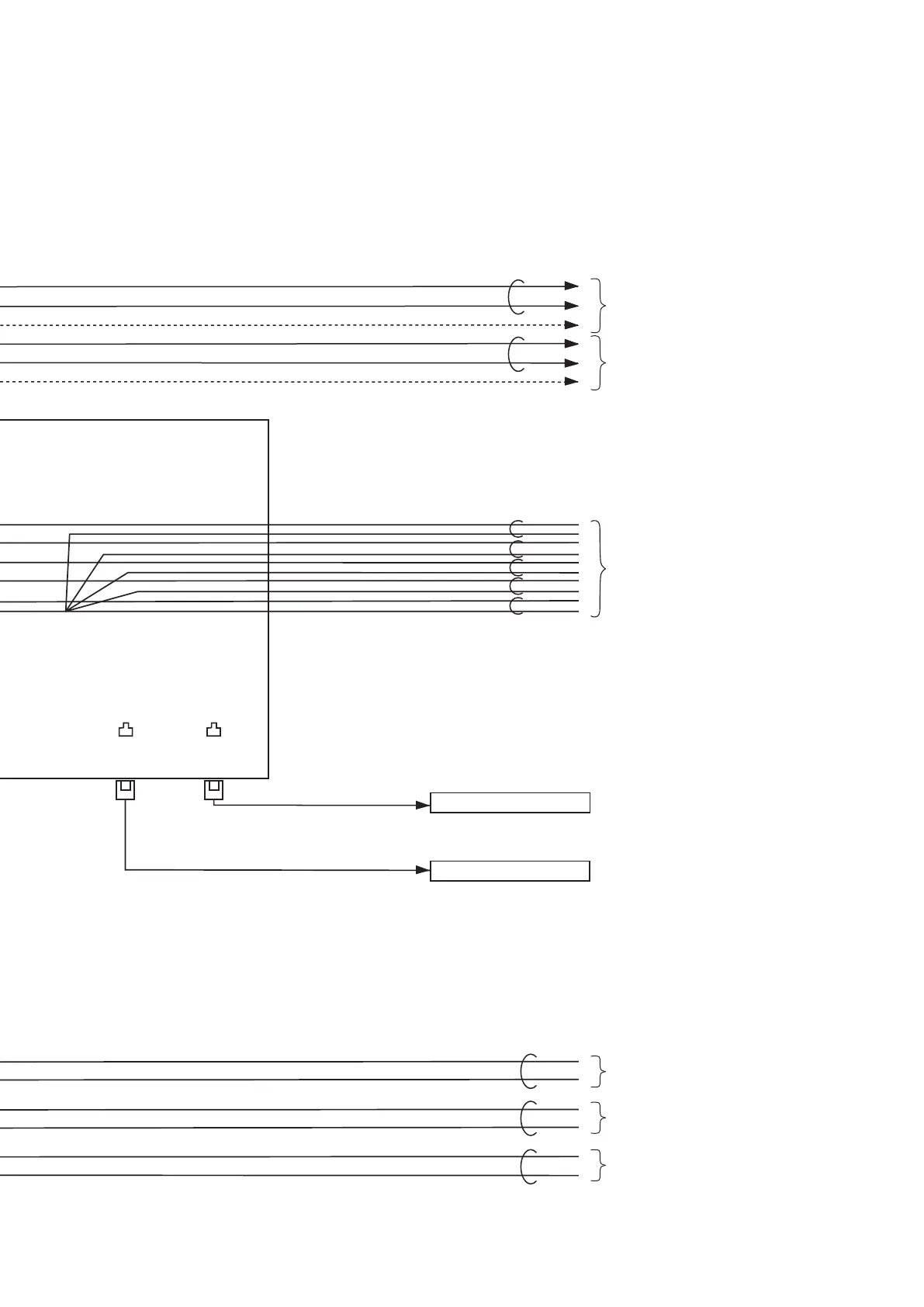

LAN PoE PSE
LAN PoE PD
IEEE802.3af/at
Cat-5e/6 straight
IEEE802.3af
Cat-5e/6 straight
100m (330')
100m (330')
LAN PoE PSE *
4
LAN PoE PD (works only with LAN PoE PSE(IEEE802.3at)switch)
PE0.8(20AWG)-2C
PE0.8(20AWG)-2C
PE0.8(20AWG)-2C
PE0.8(20AWG)-2C
PE0.8(20AWG)-2C
15m (49')
15m (49')
Additional IP device
PoE switch
Contact Input 6 *¹
(IX-DV, IX-DVF, IX-DVF-P and
IX-SSA)
Audio Output *²
(to paging amplifier)
24 VDC
(AC Power adapter PS-2420) *
4
Non Polarized
Contact Input 1 to 5 *¹
Relay Output 1 *³
Relay Output 2 *³
