12 \ USER OPERATION MANUAL: Purair Basic Series

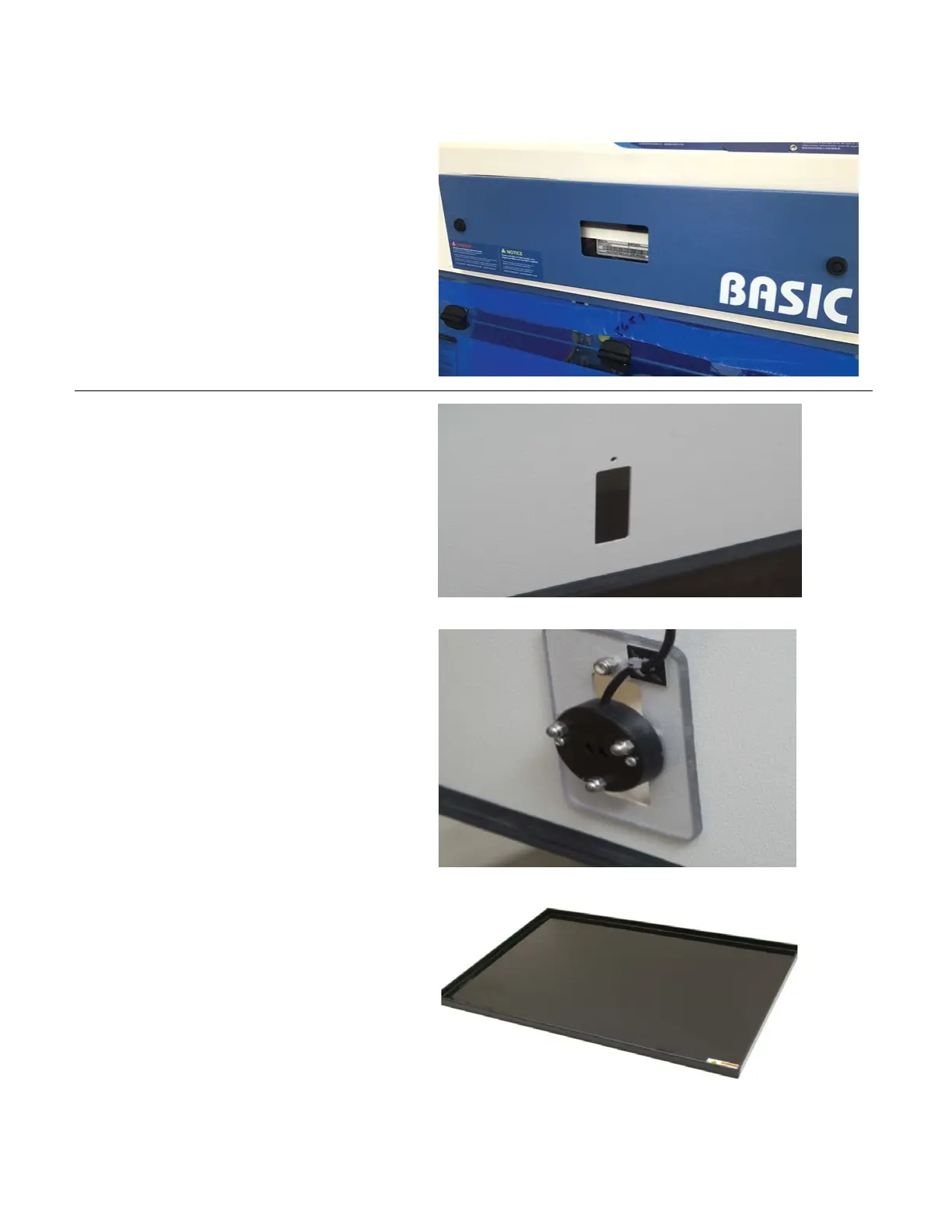

10.Reinstallthelterdoorandsecurethe
locks using the barrel key.
Final Assembly
Monitair and Autocal Equipped Units
11.Toinstalltheairowsensor,removethe
clear panel on the inner right sidewall.
Open the screw cap on the outside of
the enclosure, undo the screw and nut
and set aside.
DO NOT DISCARD!
12.Removeanytapeontheairowsensor
which is used to protect the sensor wires.
Install the sensor by attaching to the
enclosure with the screw and nut.
13. If not already installed, slide the polypro-
pylene spill tray into the enclosure. The
side with the extended handle/lip should
go toward the back of the hood.
Warning - Once installed do not remove
spill tray from enclosure. Do not use tray
like a drawer. Do not push down, lean
on or apply excessive force. Tray is only
intended to sit over existing work surface.
