3.4 Set Up
Your Air Science product is shipped in two parts. The following instructions and photos explain how to:
Assemble the base “enclosure” and place the head unit (fan and controls) on top:
• Fitthemainlterandthepre-lter.
• Fittheoptionalairowmeter.
• Adjustthefan-speed/airowcontrol.
• Adjustthelterblockagealarm.
Prior to beginning assembly, ensure the following:
1. Area is free of obstructions, tripping hazards, etc.
2. Ample clearance is available on sides and over head.
3. Appropriate number of personnel are on hand: two people recommended.

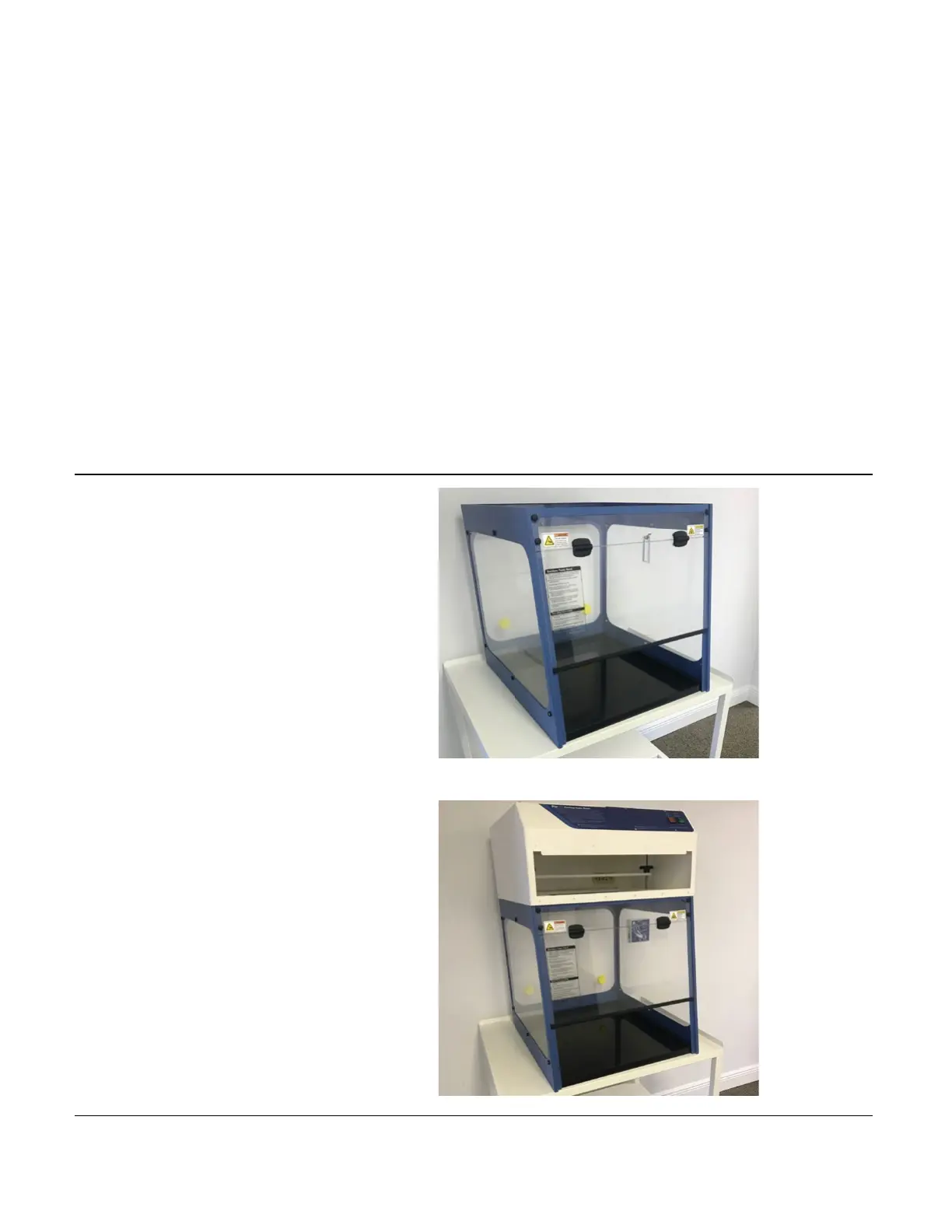

Fume Hood Assembly
1. Unpack fume hood enclosure and set
on top of casework. In most cases the
enclosure is shipped fully assembled.
2. Unpackfan/ltermodule(akaheadunit).
Lift head unit above and onto enclosure,
allowingairowsensor/wireharnessto
hang inside the enclosure.
Pleas e allow a mi ni mu m clea ra n ce of 150 mm
(6 inches) between the right-hand side of
the unit and any adjacent wall to allow the
detachable power supply cord to be discon-
nected from the power source.
Warning – Tipping Hazard. Please ensure
that all end rails of your unit are com-
pletely on workbench and do not over-
hang the workbench in any location.
