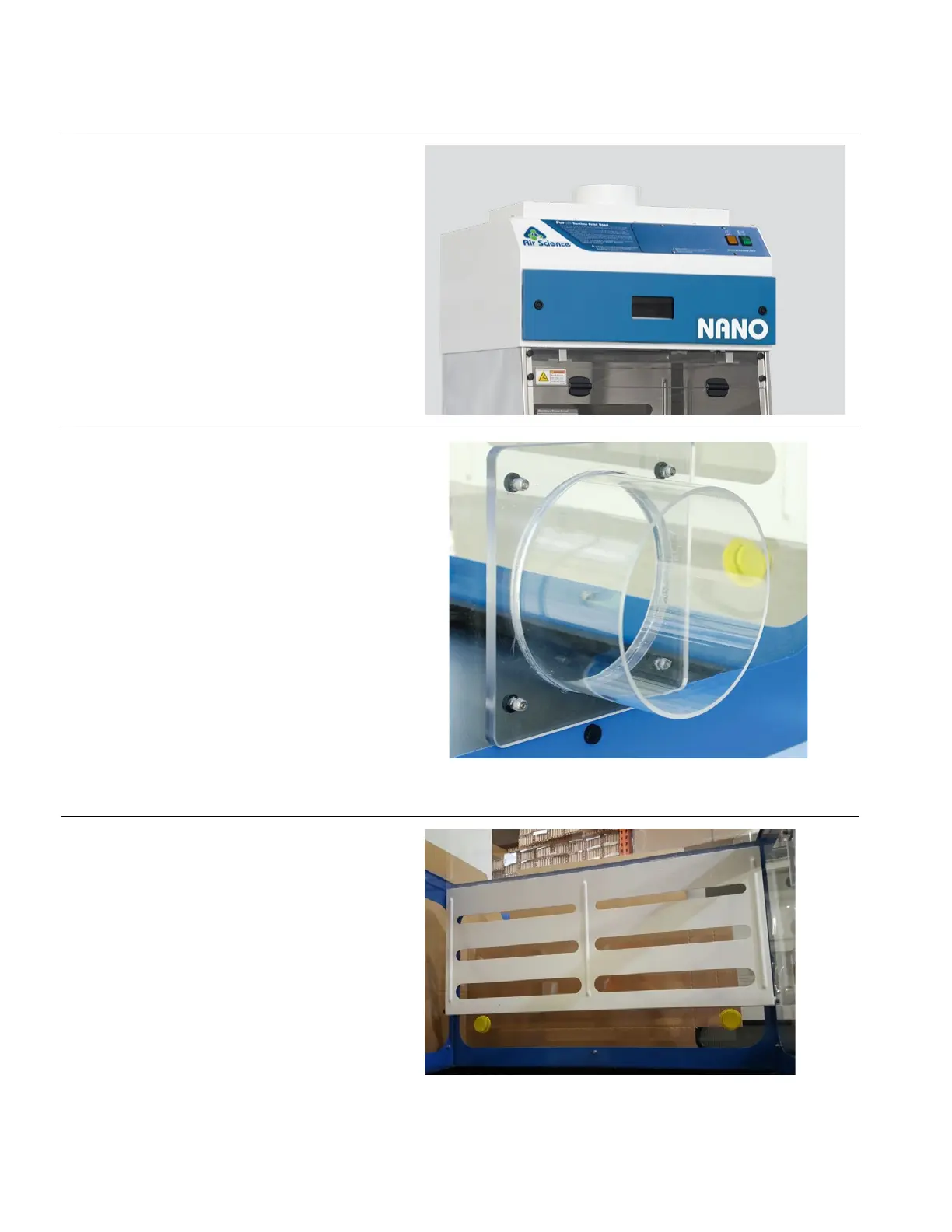

Exhaust Plenum Installation
(RX and NANO Fume Hoods Only)
1. Place the plenum in the correct orienta-
tion on the metal top panel of the fume
hood.
2. Insert the provided self-tapping screws
into each hole in the plenum housing.
3. Use a drill with a nut driver to tighten
down the plenum.
Waste Chute Installation
(RX Fume Hoods Only)
1. Locate the blanking panel currently
installed on the side of the fume hood.
2. Remove the mounting screws in each
corner of the blanking panel and discon-
nect the panel from the fume hood.
3. Align the waste chute on the outside of
the fume hoods, matching the mounting
holes with the existing holes in the side
of the fume hood.
4. Insert the mounting screws and tighten
down evenly (screw heads can be
oriented to the inside or outside of the
fume hood).
Balance Enclosure Assemly
(RX and NANO Fume Hoods Only)
1. Standuptherearbafe;itwillpivotfrom
an attached hinge located on the left
and right side panels.
