Using the Pressure Ports (TA465-P)
The TA465-P includes pressure ports that can be used to measure
static and differential pressures in ductwork. For more information,
see Application Note AF-107.

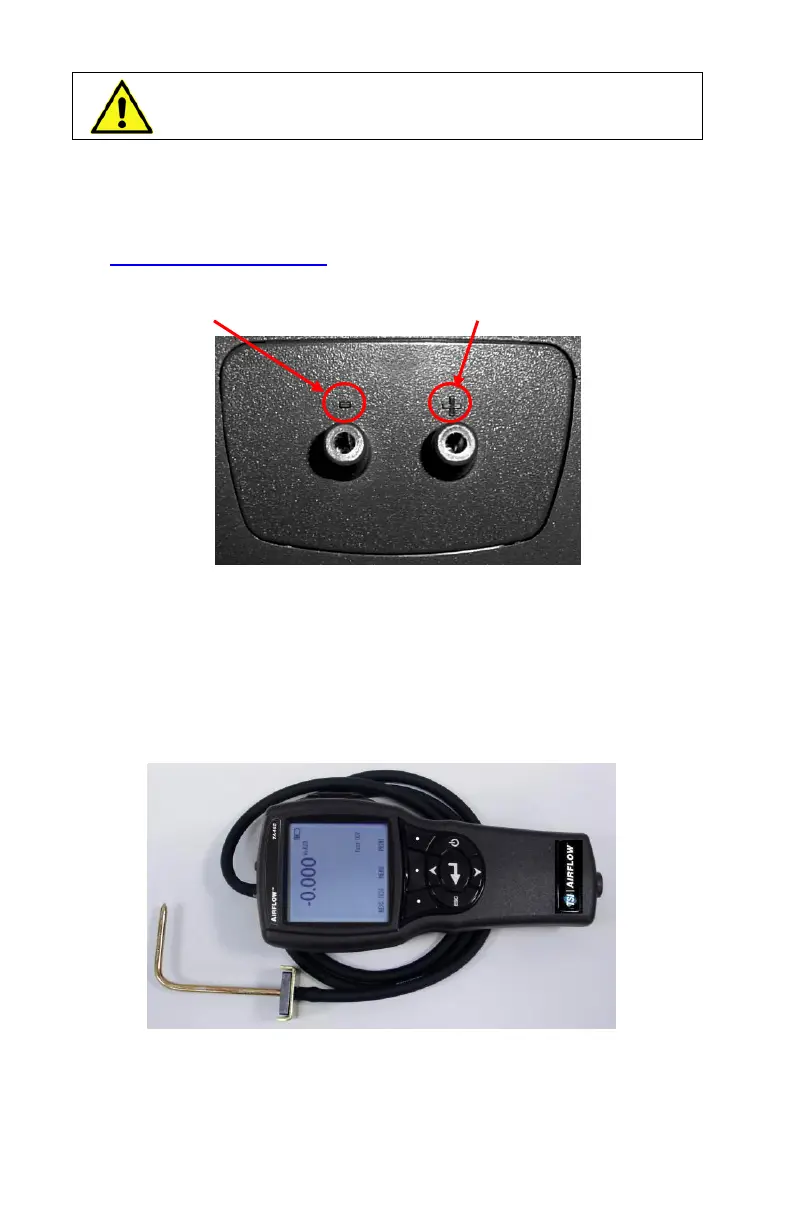

Negative (-) Pressure Port Positive (+) Pressure Port
Connecting the Static Pressure Probe
The Static Pressure probe included with the TA465-P is
connected to the + port on the TA465-P using the included
tubing. The Static Pressure probe is used to measure the duct
static pressure and features a magnet which holds the probe to
the ductwork.
