AiRide Firestone - Install the Air Filter

2
930 Installation Instructions 10
9523 AIR COMPRESSOR
AIR TUBING
FROM AIR COMPRESSOR KIT
AIR FILTER
Create
loop in Air
Tubing.
FILTER LIFE WILL VARY BASED ON ENVIRONMENTAL CONDITIONS.
PROTECT THE AIR COMPRESSOR BY CHANGING THE AIR FILTER
MORE FREQUENTLY IN DUSTY CONDITIONS.
INSTALL THE AIR FILTER
CLEAN UP INSTALLATION
6
7
1
Clean up the installation using
supplied Nylon Ties, and return
all factory parts and materials
to operative state.
USING SUPPLIED NYLON TIES, SECURE ALL
WIRING AND AIR TUBING IN A MANNER
THAT DOES NOT OBSTRUCT MOVING PARTS
OR IN ANY WAY THAT AFFECTS YOUR ABILI-
TY TO SAFELY OPERATE THE VEHICLE.
1

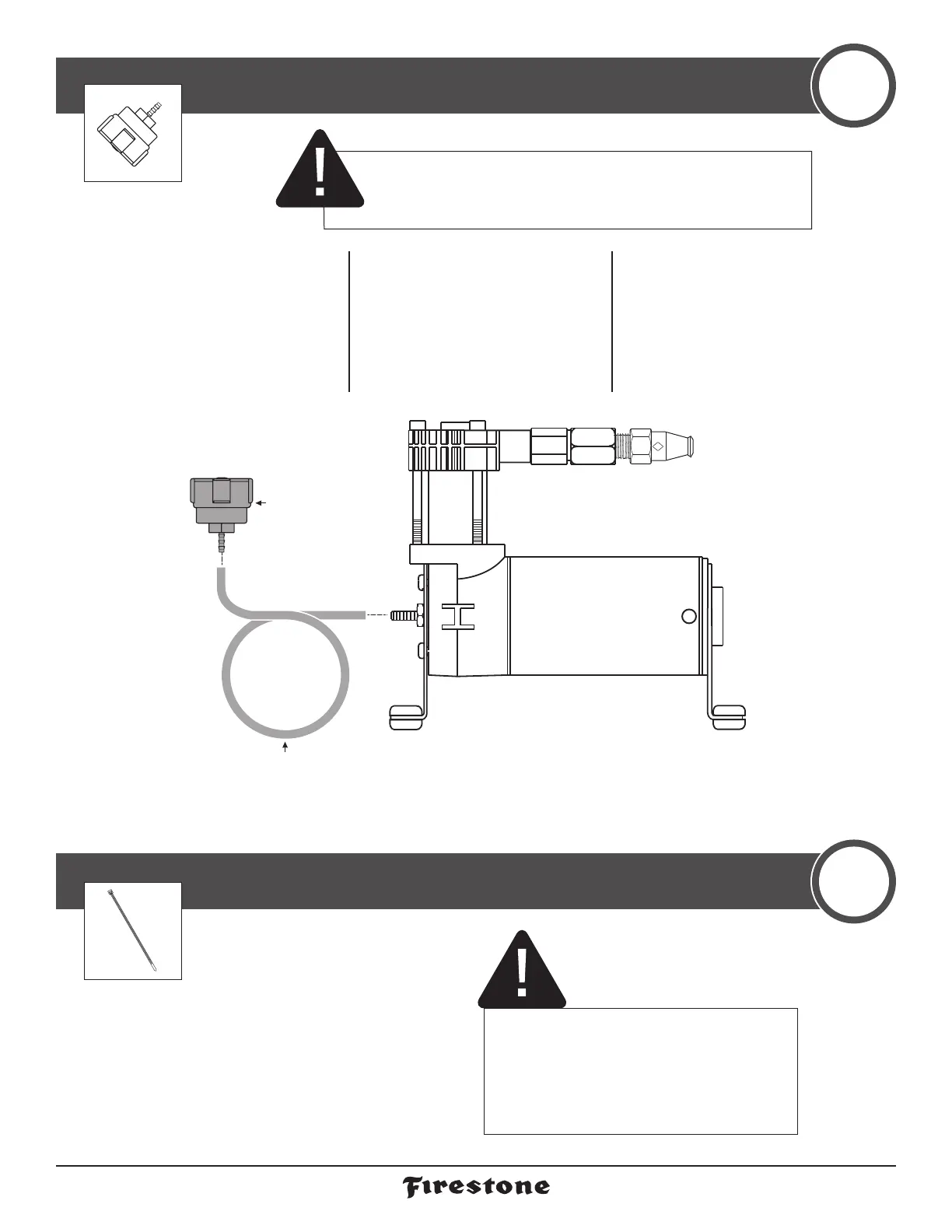

Fully secure the Air Filter
barb into the Air Tubing from
the Air Compressor Kit.
2
Press Air Tubing onto
the barb on the Air Com-
pressor Air Fitting until
fully seated. Assure you cre-
ate a loop in the Air Tubing,
as shown, when securing it
to the vehicle.
3
Periodically check the Air
Filter during operation.
When the Air Filter is dirty
and needs to be replaced,
contact an Authorized
Firestone dealer to
purchase a new one.
