AiRide Firestone - Air Springs

2
930 Installation Instructions 8

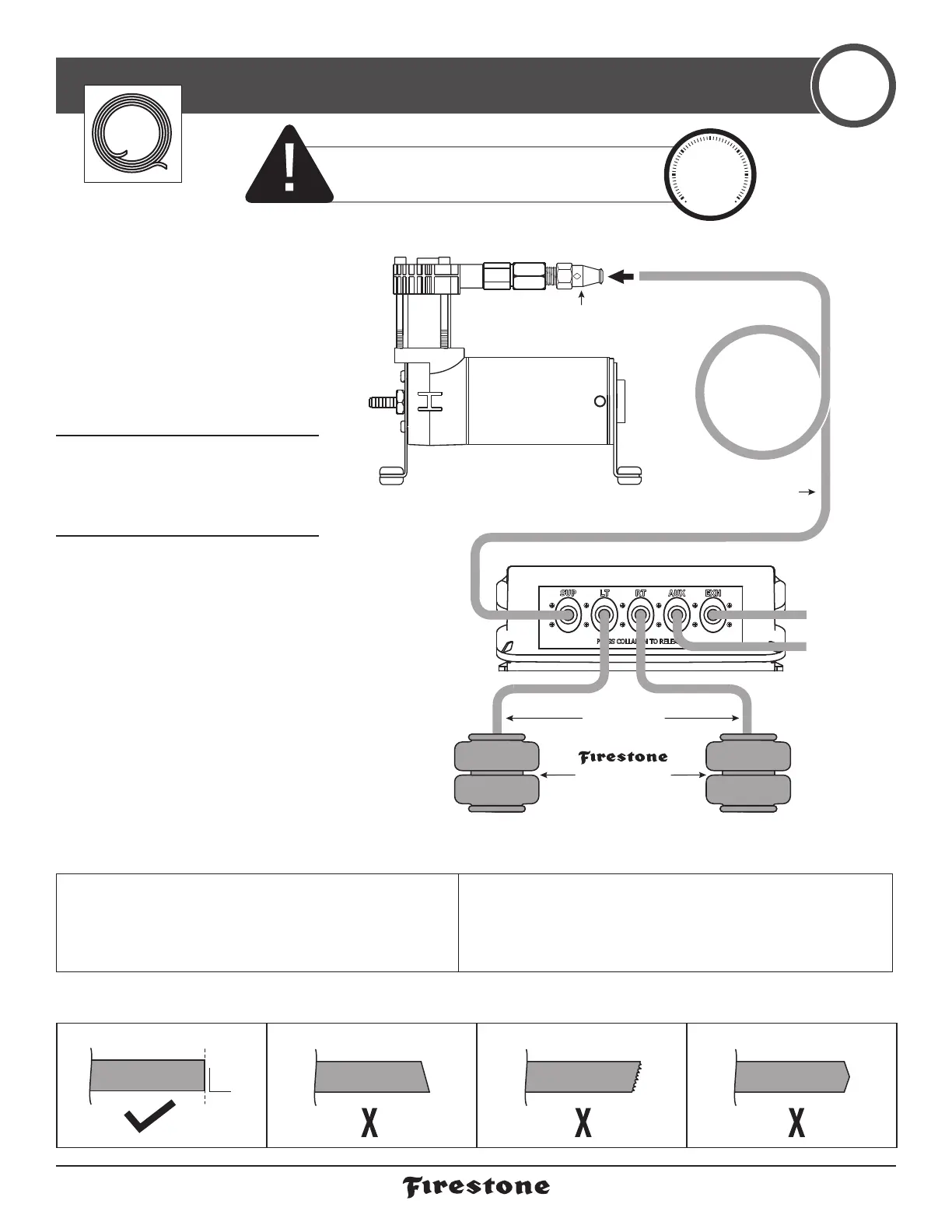

INSTALL THE AIR TUBING
4
9961 ECU
AIR SPRINGS
(sold separately)
AIR TUBING
AIR TUBING
LEFT AIR SPRING
(when facing forward)
RIGHT AIR SPRING
(when facing forward)
* As a water/debris
trap. See page 4.
Create
loop in Air
Tubing.
Route AUX
and EXH to
dry location.
3055 1/8 NPT PUSH-TO-CONNECT
STRAIGHT FITTING
9523 AIR
COMPRESSOR
DO
Make sure the cut is as square as possible.
Use a tube cutter or very sharp utility knife.
DON’T
Fold or kink the Air Tubing.
Cut the Air Tubing at an angle.
Use pliers, scissors, snips,
saws, or side cutters.
Square cut
90˚
AIR TUBING
AIR TUBING AIR TUBING AIR TUBING
PROPER AND IMPROPER CUTS IN THE AIR TUBING
EXHAUST ALL AIR FROM THE SYSTEM PRIOR
TO RELEASING AIR TUBING FROM AIR FITTINGS.
5
PSI
1
Route the Air Tubing from
1/8 NPT Push-to-Connect
Straight Fitting on the top
of the Air Compressor to
the Supply (SUP) Air Fitting
on the ECU, leaving room
to secure it safely. Use the
guidelines on page 4 for
proper Push-to-Connect
Straight Fitting install.
2
Repeat Step 1 to route Air
Tubing from the ECU to the
Air Springs. Use the RT and
LT Air Fittings on the ECU.
3
Install Air Tubing to the
Exhaust (EXH) Air Fitting to
reduce exhaust noise and
prevent dirt from clogging
the port (recommended
for off-road or dirty environ-
ments). Do not exceed 16" of
Air Tubing, and secure it so
the end turns to the ground.
